SAND FILTER PUMP HOSE CONNECTION SETUP
The 6-way valve has three hose connection ports.
1. Connect one hose (12) end to the pre-filter inlet and the other end of the hose to the lower
plunger valve with the strainer. Ensure the hose nuts are securely tightened.
2. Connect the second hose (12) between the 6-way valve water outlet and the upper plunger
valve with the inlet-nozzle. Ensure the hose nuts are securely tighten.
3. The third hose connection port (drain/waste outlet) on the 6-way valve shall be directed to
a proper draining receptacle using a hose or pipe (not provided). Remove the drain cap before
attaching the drain/waste hose or pipe.
4. The sand filter pump is now ready to filter the pool.
WARNING
• Positionthisproductawayfromthepool,soastopreventchildrenfromclimbingon
it and accessing the pool.

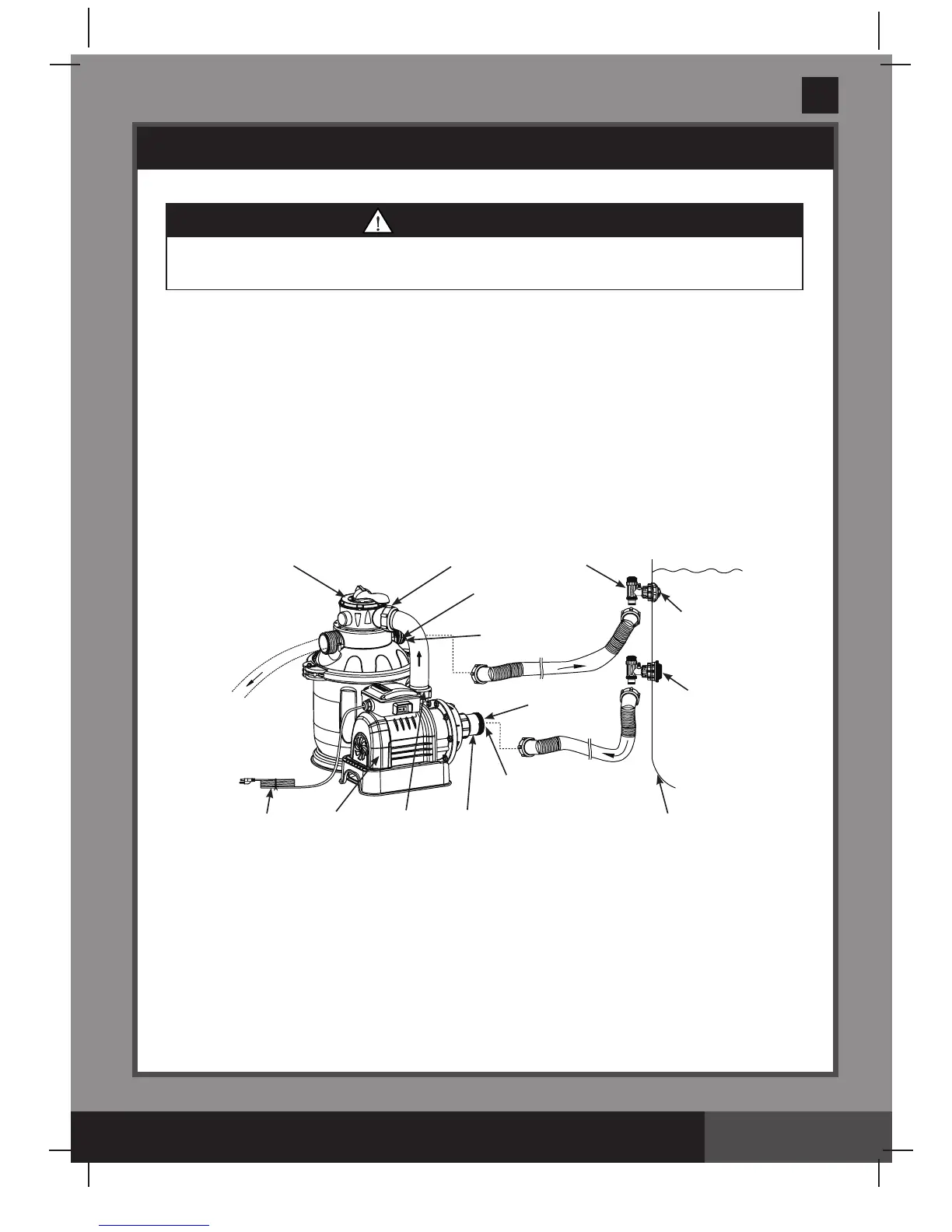

(ILLUSTRATION NOT TO SCALE)
