• The Auto Cleaner must be connected to an Intex filter pump with a system
flow rate between 1600 - 3500 gallons/hour (6056 - 13248 liters/hour). Not
suitable for non-Intex filter pumps.
• For Intex
®
above ground frame pools.
•
Up to 26 ft (7.92 m) round shape. Up to 18 ft (5.49 m) for Easy Set Pools.
•
Up to 32 ft x 16 ft (9.75 m x 4.88 m) rectangular/oval shape. Not suitable
for non-Intex pools.
• First assemble your filter pump and then set up the auto cleaner.
• If using a sand filter, ensure the sand media is clean by backwashing it first.
Run the sand filter pump for 10-15 minutes before connecting the auto cleaner
to the water return connector. If sand enters the auto cleaner, it may cause
damage to the gear module.
• The auto cleaner will not work if the filter pump is not operating.
• Operating pool water temperature requirement: 25~45 °C (77~113 °F).
Exceeding this range will reduce the performance and life expectancy of the
Auto Cleaner.
Before setup, make sure that:
•
The filter pump is turned off, and disconnect the power cord from the electrical
outlet.
• The pool is free from objects that will hinder the auto cleaner free movements
by removing the ladder, surface skimmer, water sprayer (if applicable), floats
or any other objects from the pool.
• The pool wall or floor are free from algae. Algae will
block the flow of water
into the cleaner and hinder the auto cleaner movement.
See your local pool
supply specialist for algae treatment solutions.

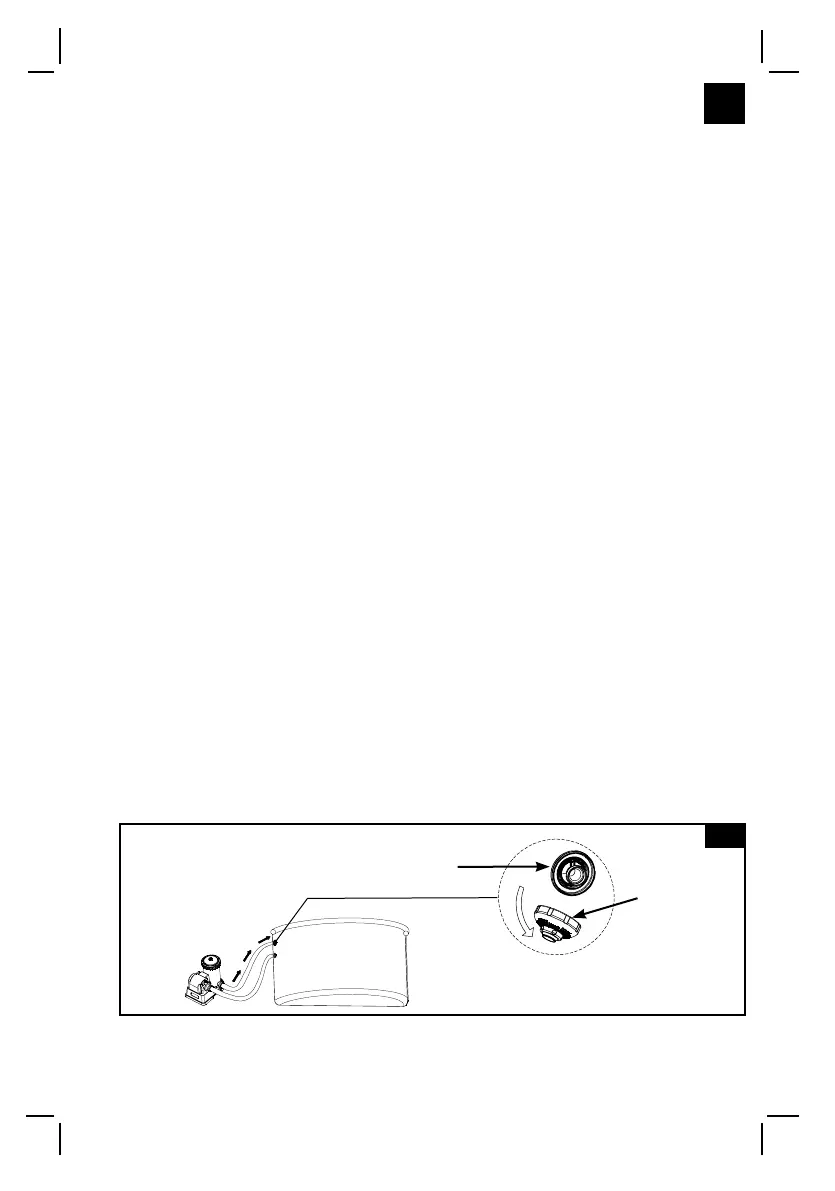

1. From inside of the pool, unscrew the nozzle from the water return connector.
See Fig. 1.
NOTE: The device operates from the pressure side of the pool water return
connector (water flowing back from the filter pump to the pool).
SETUP INSTRUCTIONS (continued)
1
Threaded
Strainer
Connector
Nozzle
