Intimus 175 SP2 - Initiation; Scope of Application; Installation; Operation

91239 7 08/20
Translation of the Original Operation Manual
Übersetzung der Originalbetriebsanleitung
GB
12
2 Initiation
2.1 Scope of application
CAUTION!
Damage to the cutting mechanism!
The machine must only be used to shred
paper!
Shredding of other types of data carriers
and also of staples and paper clips with the
models with cutting width 0.8x12 mm (CP6/
CC5) or 0.8x4.5 mm (CP7/CC6) may lead to
injuries (for example due to splintering of
hard materials etc.) and damage to the ma-
chine (for example destruction of the cutter
etc.).
Exception: Single CD’s or 3.5” computer dis-
kettes can also be shredded with 3.8mm,
5.8mm, 4x40mm, 1.9x15mm models.
The document shredder intimus 175SP2(SC2)/
CP4(CC3)/CP5(CC4)/CP6(CC5)/CP7(CC6) is a machi-
ne for the destruction of common written material.

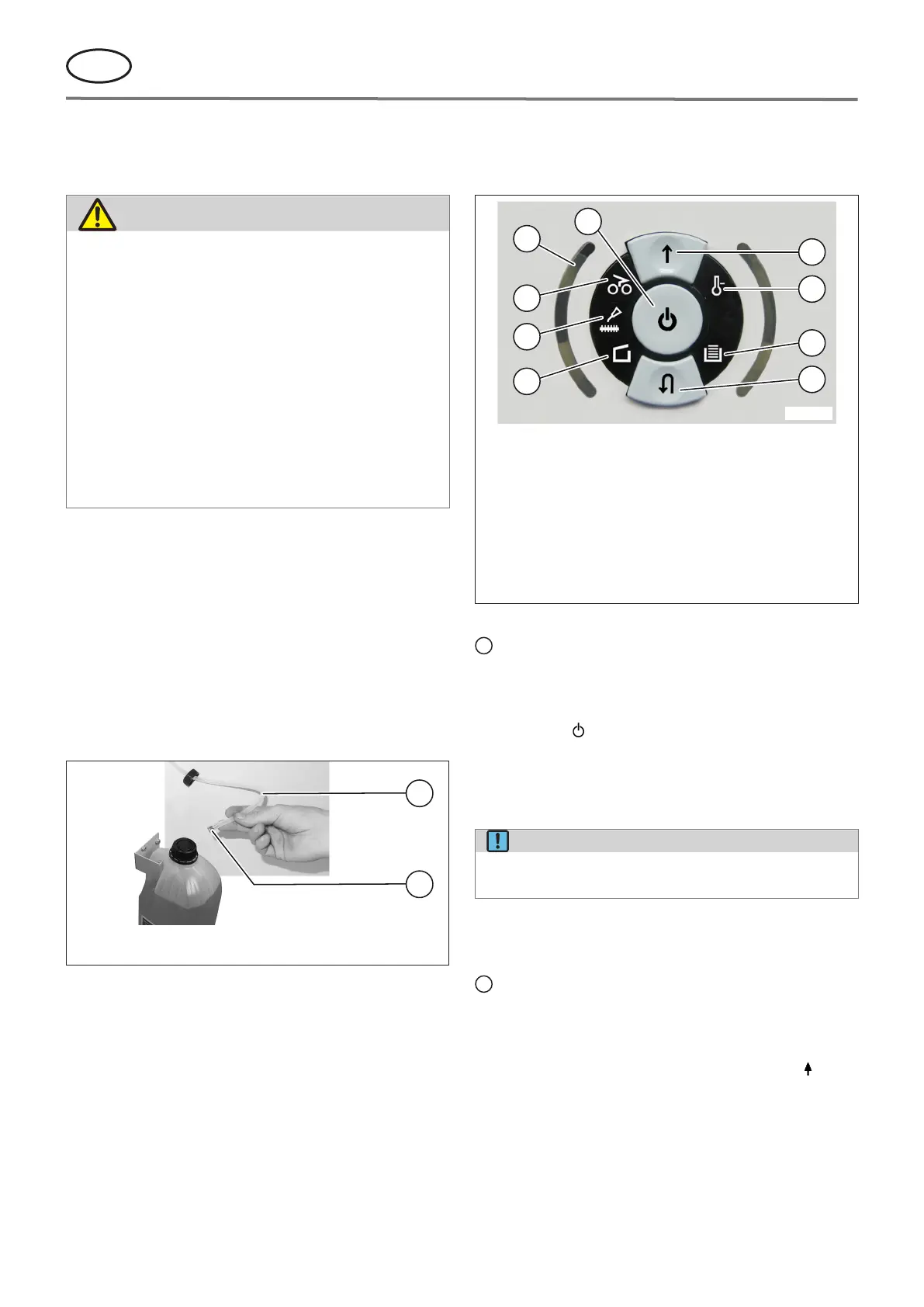

2.2 Installation
1. Unpack and set machine upright.
2. Place plastic sack into the receptacle.
3. Machines with automatic oil system: For oiler in-
stallation remove the screw (g. 1/2) from the oil
hose (g. 1/1).
2
1
000174
1 Oil hose
2 Screw
g. 1 Oiler installation
4. Connect the machine to the power with the plug.
(For information on the right fuse for the plug see
„Technical Data“, p.18).
3 Operation
3.1 Controls
000152
2
3
4
5
1
6
7
8
9
1
Functions button
2
Forwards button
3
Control display „Motor overload“ / „Electrical fault“
4
Control display „Collection bin full“
5
Reverse button „Stop“ / „Reverse“
6
Control display „Door open“ / „Door malfunction“
7 Control display „Oil cutters“ / „To change the oil con-
tainer“
8
Control display „Material jam“
9
Control display „Load level of the motor"
g. 2 Controls „i-control“
1
= Functions button (g. 2/1)
a) „Ready“
The machine changes to “Ready” if you press this
button briey. At the same time the integral LED
display comes on.
b) „O“
The machine switches o if it is in the “Ready”
mode and the button is held down for about
3seconds.
NOTE!
The machine switches o automatically if it is
not used for about 15 minutes.
c) „Stop“
If you press this button briey when the cutters
are running they switch o and stop.
2
= Forwards button (g. 2/2)
If this button is pressed, the cutting mechanism
runs forwards for a few seconds, e.g. to remove re-
maining material from the cutting mechanism. At
the same time the integrated LED display lights
up.
By pressing and holding this button when the mo-
tor has stopped, the cutting mechanism runs for-
wards.
