Da Vinci Firefly Imaging System User Manual Addendum 552064-10 Rev. A
2. Touch the Firefly OFF button. If Firefly is already activated, touching the ON button deactivates
Firefly.

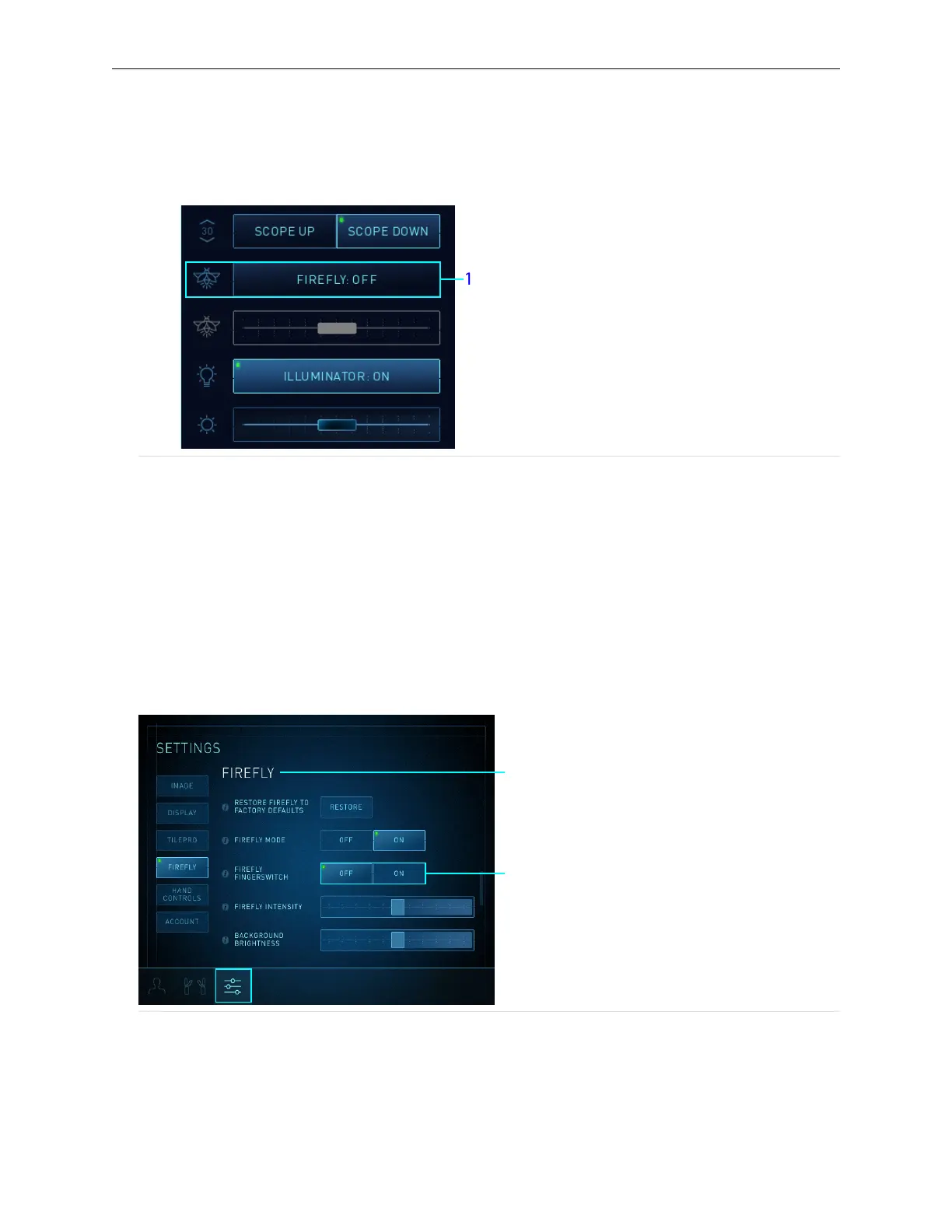

Figure 12 Vision Cart Firefly OFF/ON button
1
1. Firefly button
Toggle Between Firefly and Visible Light Imaging
Firefly Fingerswitch
The ability to use the hand control finger clutches to toggle between visible light and Firefly
imaging is set at the Surgeon Console touchpad.
1. Touch the Settings tab, then touch the Firefly button or scroll to view the Firefly section.
2. Touch the Firefly Fingerswitch button OFF or ON.
Figure 13 Firefly Fingerswitch control
1
2
1. Firefly Section
2. Firefly Fingerswitch button
When the Firefly Fingerswitch button is ON, the surgeon can toggle between visible light
imaging and Firefly imaging by using the endoscope control pedal and the hand control finger
clutches.
16
Firefly Imaging Operation | Select the Visualization Mode
