SECTION 6—OPERATION OF THE POWERED SCOOTER
Zoom
™
300 and Zoom
™
400 32 Part No. 1118395

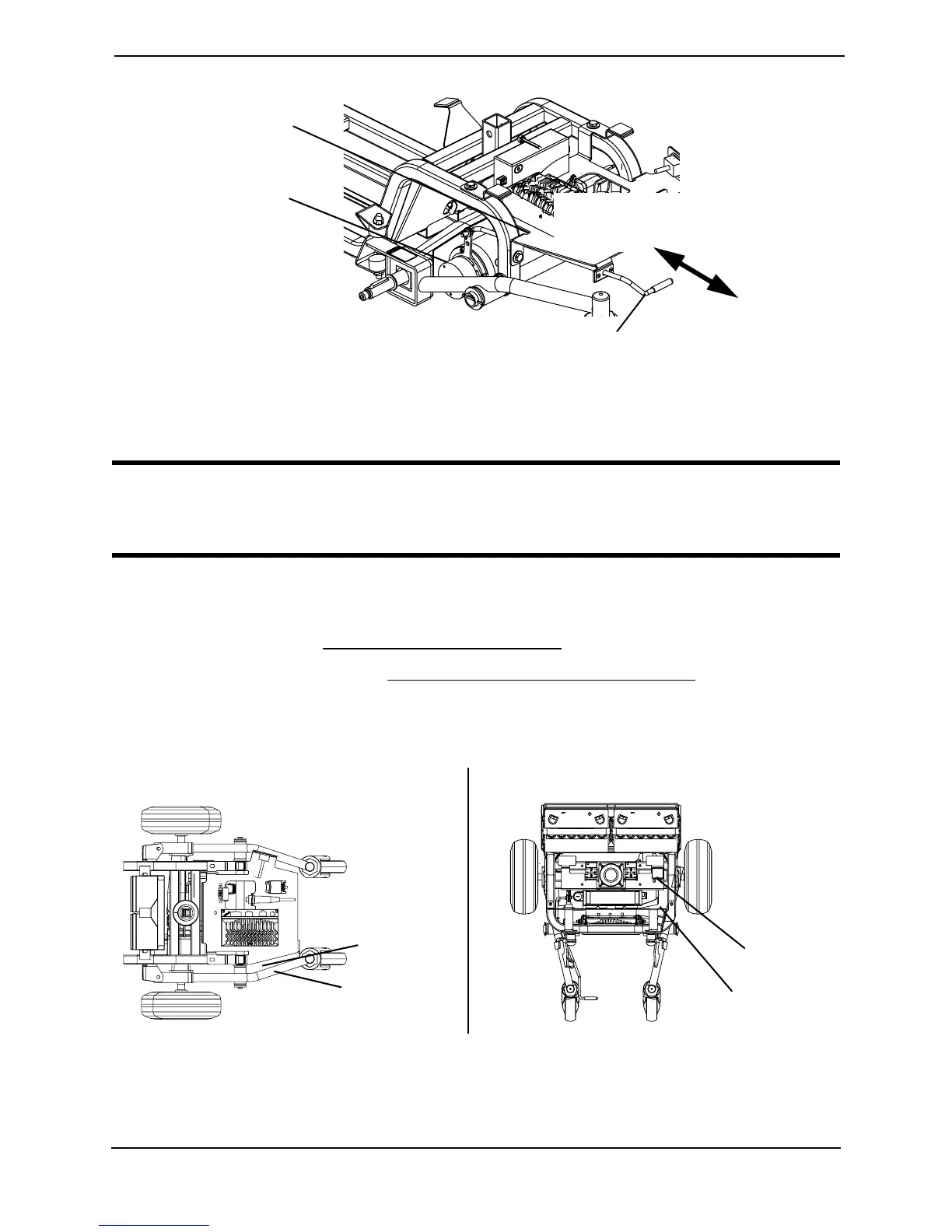

FIGURE 6.3 - BRAKE RELEASE LEVER
RESETTING THE CIRCUIT BREAKER
 WARNING
NEVER defeat or bypass the circuit breaker. ONLY replace with a circuit breaker of
the same rating.
NOTE: Key must be removed from ignition before resetting circuit breaker.
NOTE: For this procedure, refer to FIGURE 6.4.
1. Remove seat. Refer to Removing/Installing the Seat on page 34.
2. Remove rear shroud. Refer to Removing/Installing the Rear Shroud on page 44.
3. To reset, press circuit breaker button located on the controller tray.
4. Reverse STEPS 1 and 2 to reassemble the powered scooter.
FIGURE 6.4 - RESETTING THE CIRCUIT BREAKER
Controller Tray
Brake Release Lever
Transaxle
NOTE: Brake Release Lever
on Zoom 300 shown. Brake
Release Lever on Zoom 400
operates the same way.
DISENGAGED
(PULL LEVER
OUT)
ENGAGED
(PUSH LEVER IN)
Circuit
Breaker
Button
Controller Tray
DETAIL “B” - ZOOM 400DETAIL “A” - ZOOM 300
Circuit
Breaker
Button
Controller Tray
