SECTION 13—TRANSPORTING
Part No. 1118395 61 Zoom
™
300 and Zoom
™
400

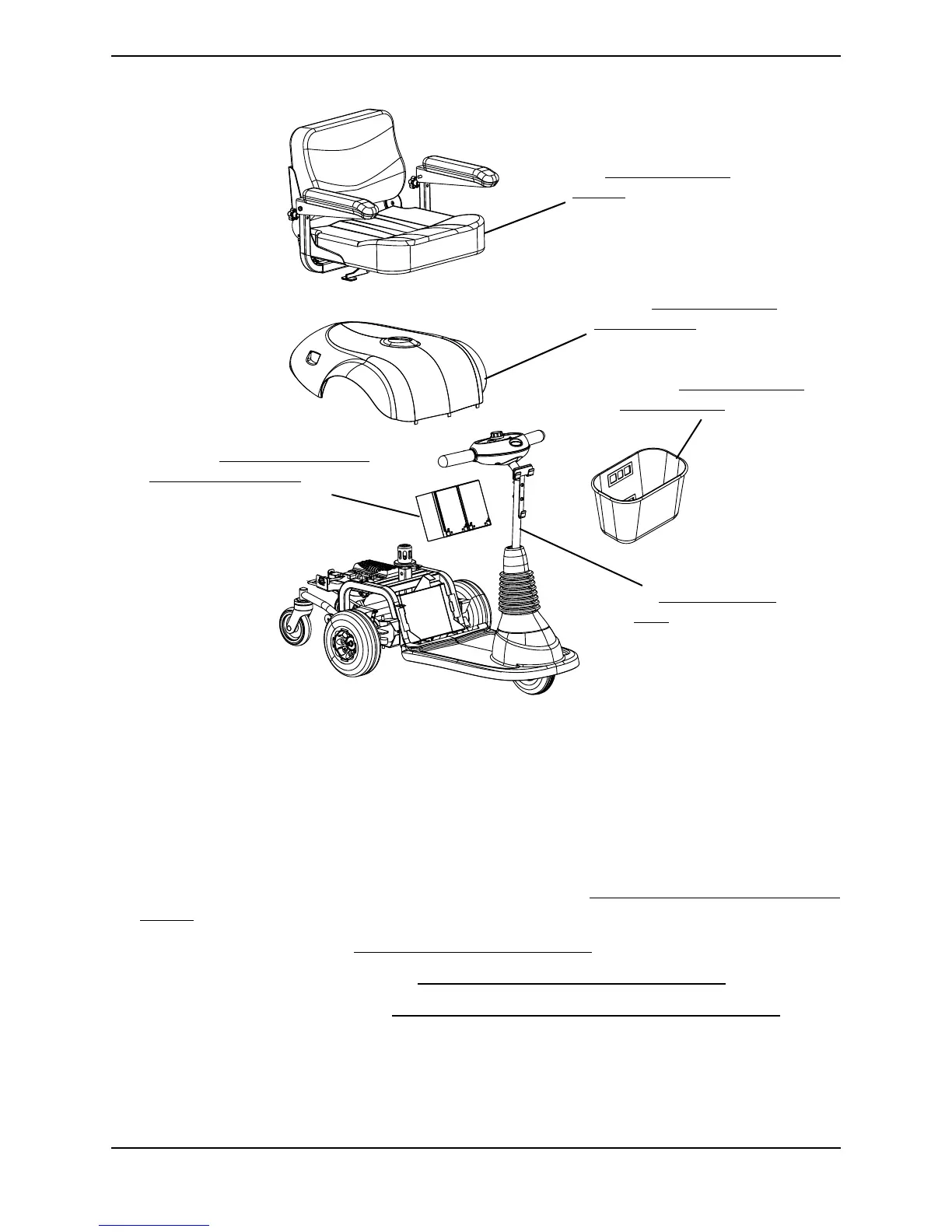

FIGURE 13.1 - TRANSPORTING THE SCOOTER - ZOOM 300
ZOOM 400
NOTE: For this procedure, refer to FIGURE 13.2.
DISASSEMBLING
1. If installed on scooter, remove the front basket. Refer to Removing/Installing the Front
Basket on page 64.
2. Remove the seat. Refer to Removing/Installing the Seat
on page 34.
3. Remove the rear shroud. Refer to Removing/Installing the Rear Shroud on page 44.
4. Remove the batteries. Refer to Removing/Installing the Batteries on Zoom 400
on
page 53.
5. Disconnect the 4-housing motor [located under marker label # 1] connector from the
controller (Detail “B” of FIGURE 13.2).
Refer to Removing/Installing
the Seat on page 34
Refer to Removing/Installing
the Rear Shroud on page 44
Refer to Removing/Installing
the Front Basket on page 64
Refer to Removing/Installing the
Batteries on Zoom 300 on page 50
Refer to Adjusting the Tiller
Angle on page 43
To Next Page
