SECTION 6—OPERATION OF THE POWERED SCOOTER
Part No. 1118395 33 Zoom
™
300 and Zoom
™
400
REPLACING THE FUSE
WARNING
NEVER defeat or bypass any fuse. ONLY replace with a fuse of the same rating.
NOTE: For this procedure, refer to FIGURE 6.5.
1. Remove seat. Refer to Removing/Installing the Seat on page 34.
2. Remove rear shroud. Refer to Removing/Installing the Rear Shroud on page 44.
NOTE: Two (2) fuse holders are located on the wiring harness.
NOTE: Replace existing blown fuse with a new fuse of the same rating.
3. Pull fuse OUT and install new fuse.
4. Reverse STEPS 1 and 2 to reassemble the powered scooter.

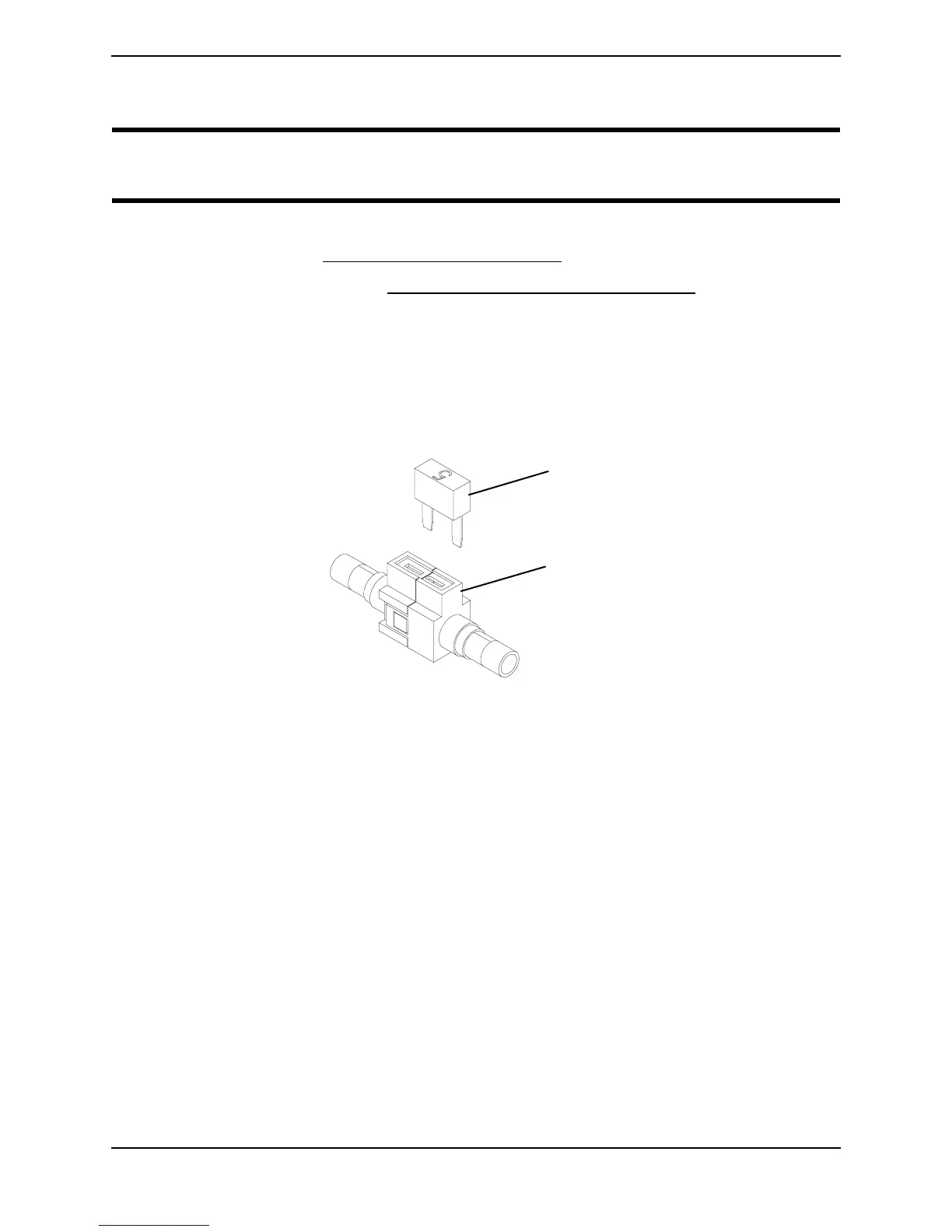

FIGURE 6.5 - REPLACING THE FUSE
Fuse Holder
Fuse
