SECTION 11—WHEELS AND CASTERS
Zoom
™
300 and Zoom
™
400 46 Part No. 1118395

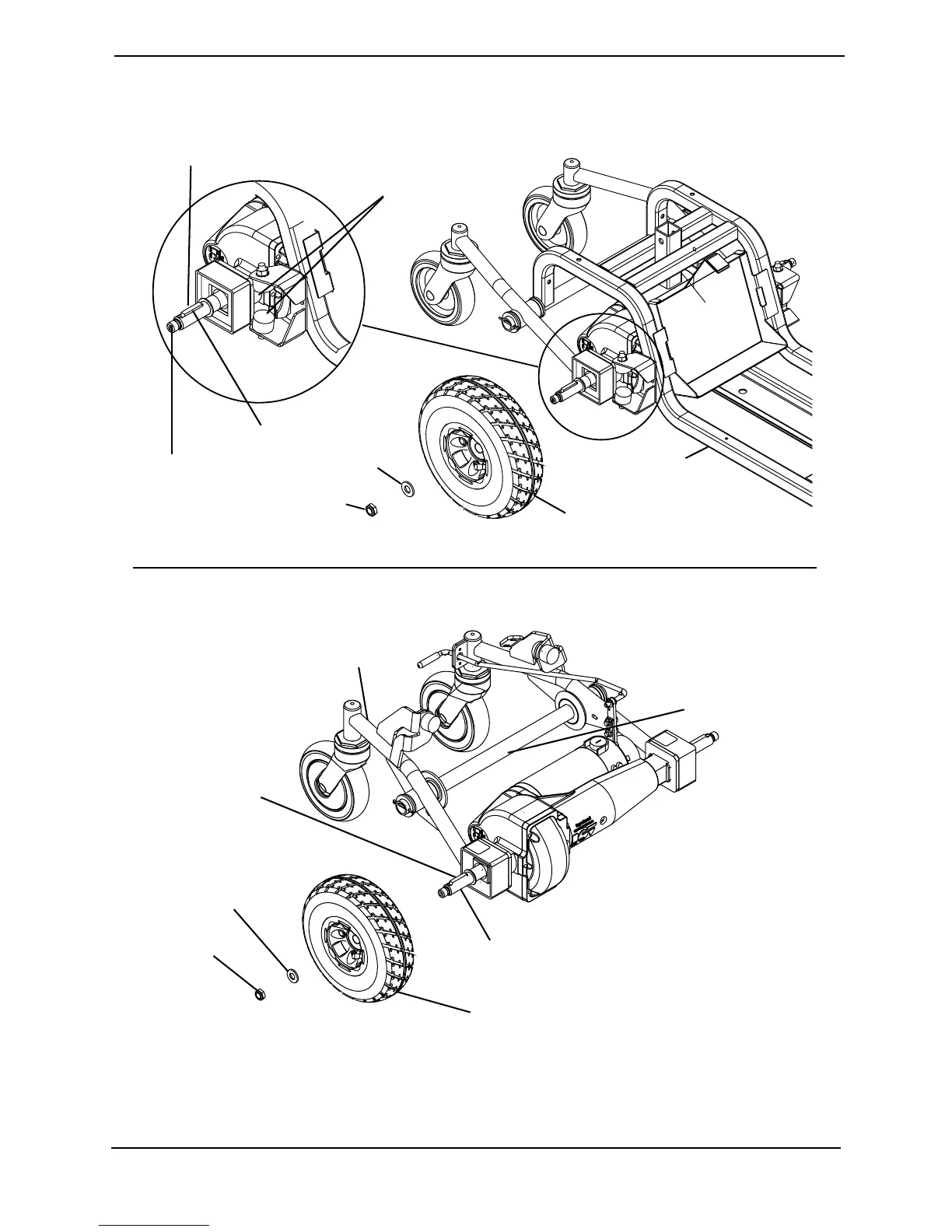

FIGURE 11.1 - REMOVING/INSTALLING THE DRIVE WHEELS
WARNING:
PINCH POINT
Cutout
Drive
Shaft
Keystock
Washer
Hex Nut
Drive Wheel
Scooter Frame
DETAIL “A” - ZOOM 300
DETAIL “B” - ZOOM 400
Drive Shaft
Keystock
Washer
Hex Nut
Drive Wheel
Swingarm
Scooter Frame
