20. Technical specifications
All measurements are stated in cm. All angles are stated in degrees.
All measurements and angles are stated without tolerances.
Invacare®reserves the right to change the stated measurements and angles.
(Illustration 7)
Voltage supply: 230 V ~ ±10%, 50 Hz.
Max. current input: 1 A.
Voltage output: 24 V ~ max. 70 VA.
Intermittent (periodic motor operation): 10%, max. 6 min/h.
Protection class: IP 54.

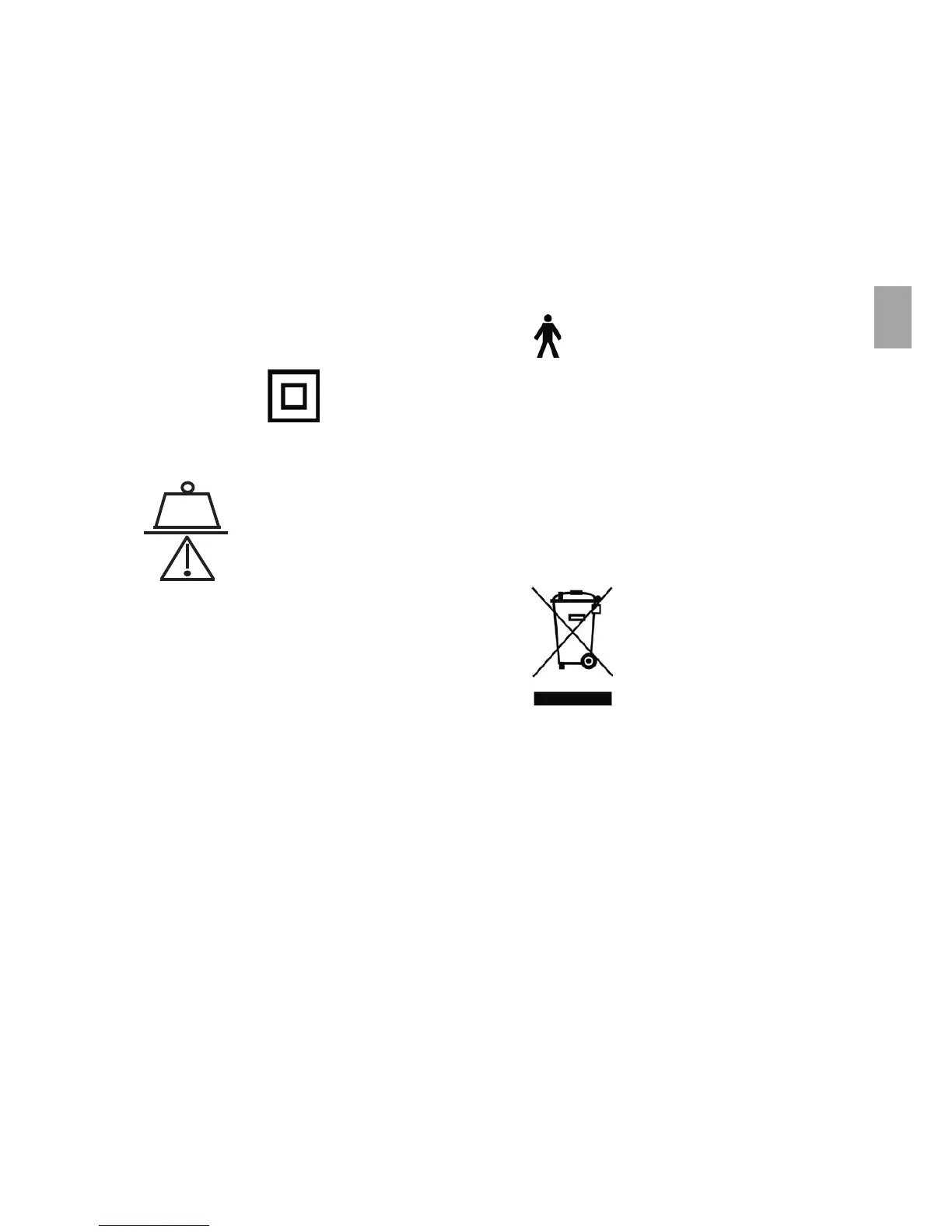

Insulation class: II, type B.
The patient is not separated from the ground and the chassis.
Double insulated.
The bed is not provided with a mains switch, so the mains plug is the only separation from the mains.
Basic: 180 kg - Max. load (SWL).
Classic: 220 kg (Patient + mattress + siderail + lifting pole + other equipment).
Sound level: 45-50 dB (A).
The product should be reused where possible.
21. Weights
Basic bed end - 1 piece . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17 kg
Classic bed end - 1 piece . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24 kg
Mattress support, head end . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22 kg
Mattress support, foot end, 3 - sectioned . . . . . . . . . . . . . . . . . . 17 kg
Mattress support, foot end, 4 - sectioned . . . . . . . . . . . . . . . . . . 22 kg
Siderail - 1 piece . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 kg
Lifting pole . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 kg
Mattress support extension (10 cm) . . . . . . . . . . . . . . . . . . . . . . . 3,2 kg
Mattress support extension (20 cm) . . . . . . . . . . . . . . . . . . . . . . . 5,5 kg
3 - sectioned bed, complete, excluding accessories
with Basic bed ends . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 73 kg
4 - sectioned bed, complete, excluding accessories
with Basic bed ends . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 78 kg
3 - sectioned bed, complete, excluding accessories
with Classic bed ends . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 87 kg
4 - sectioned bed, complete, excluding accessories
with Classic bed ends . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 92 kg
