9.3 Charger

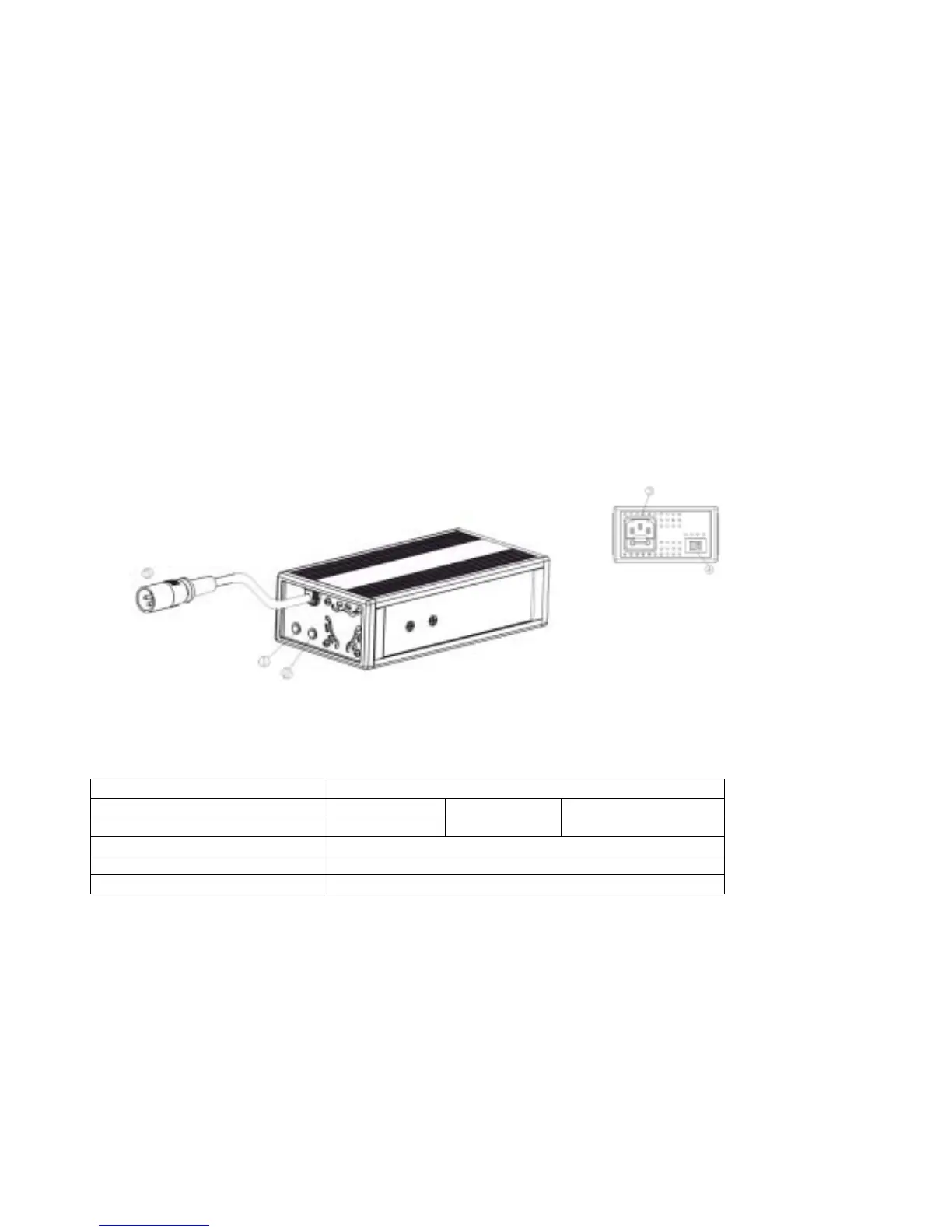

9.3.1 FEATURES
1. CHARGING LED display
2. POWER LED display
3. Mains socket
4. (115V/230V) input voltage selector switch
5. Battery charging plug
9.3.2 CHARACTERISTICS
Article Battery charger (switch mode)
Model 4F24040 4F24050 4F2460
Output current (DC) 4A 5A 6A
Charging voltage (DC) 28.8 V
Trickle charging V (DC) 27.6 V
Input current (AC) 4/2 A
