SECTION 5—OPERATING INSTRUCTIONS

Perfecto

™

Series 16 Part No 1143482

FIGURE 5.2 Humidifer Bottle Adapter

5. Attach the humidifier bottle adapter to the humidifier

bottle by turning the wing nut on the humidifier bottle

counterclockwise until it is securely fastened. See Detail

“A” in FIGURE 5.3.

6. Place the humidifier bottle/adapter assembly in the

humidifier compartment on the concentrator. See Detail

“B” in FIGURE 5.3.

7. Attach oxygen tubing from the humidifier bottle/adapter

assembly to oxygen outlet connector on the concentrator.

See Detail “B” in FIGURE 5.3.

8. Attach the cannula/patient supply tubing to the

humidifier bottle outlet. See Detail “B” in FIGURE 5.3.

9. After assembly, ensure that oxygen is flowing through the

cannula.

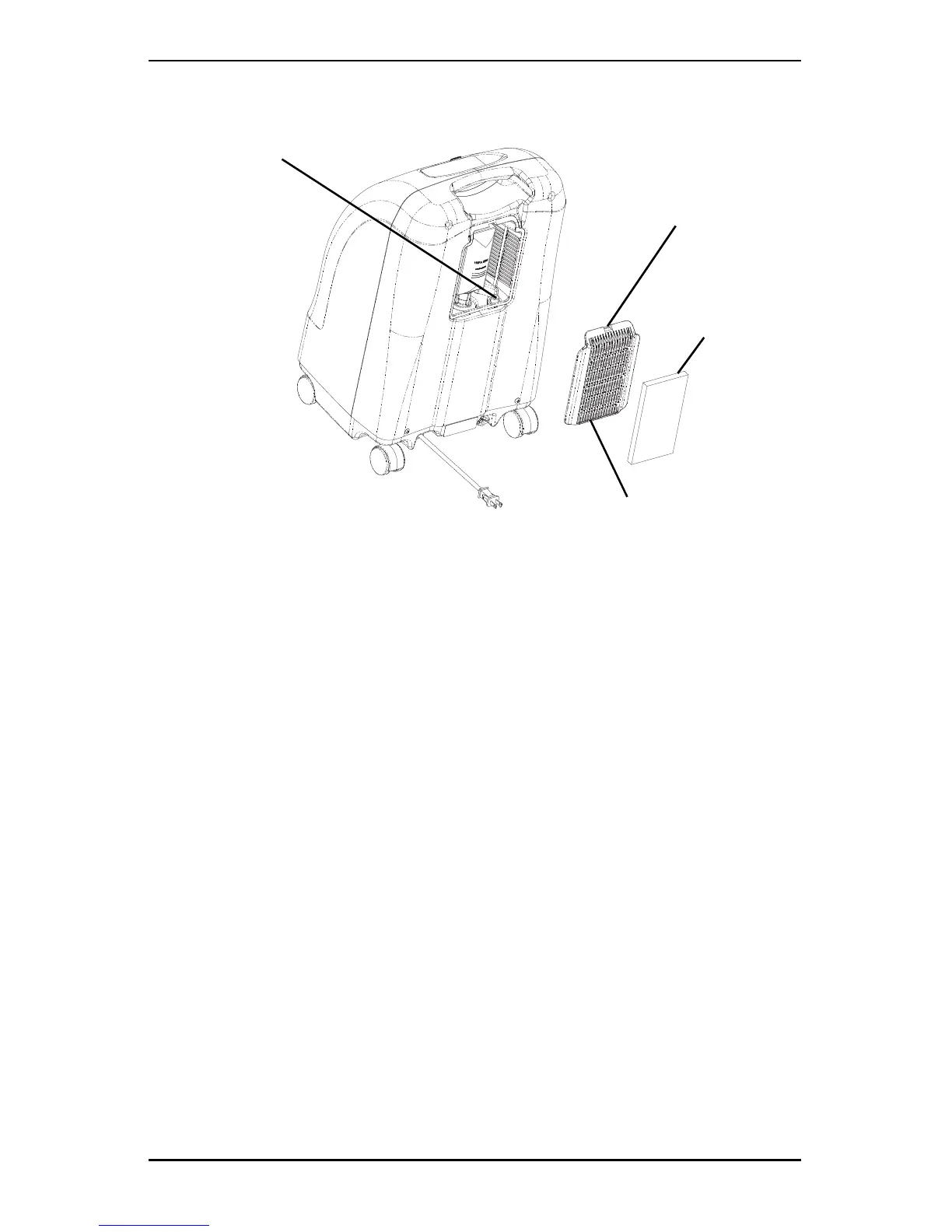

Filter Access Door

Cabinet Filter

Humidifier

Bottle Adapter

Insert Flat Head

Screwdriver

Here
