Invacare Perfecto2 IRC5PO2 User Manual

SECTION 5—OPERATING INSTRUCTIONS
Perfecto
2
™
Series 20 Part No 1143482
Initial Startup of the Concentrator
NOTE: Concentrator may be used during the initial start warm-up
time (approximately 30 min.) while waiting for the O
2
purity to
reach maximum.
Front Panel Indicators - Units without
SensO
2
NOTE: For this procedure, refer to FIGURE 5.7.

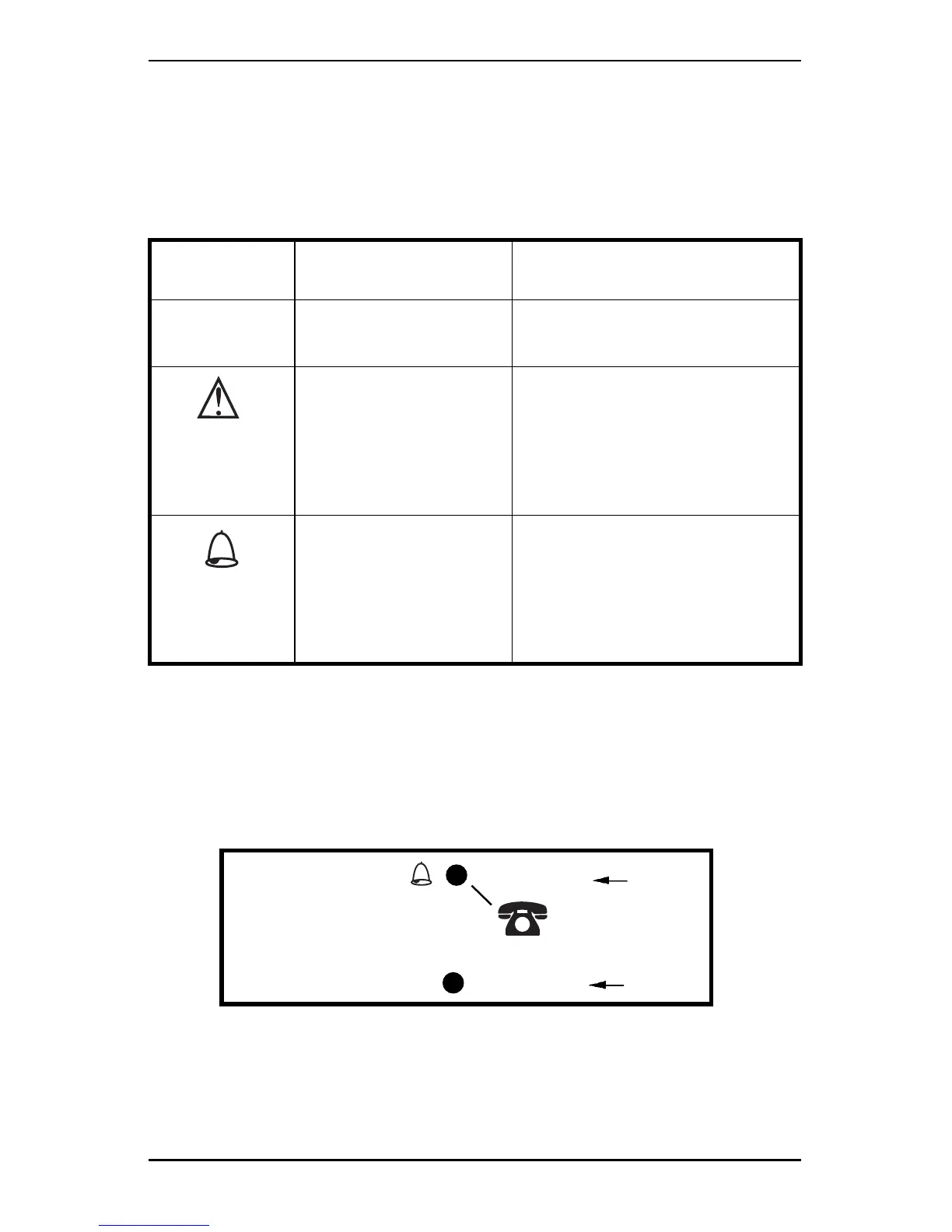

FIGURE 5.7 Front Panel Indicators - Units without SensO2
LABEL
SYMBOL
O
2
PURITY INDICATOR LIGHTS (LED)
SYSTEM OKAY
O
2
over 85%
GREEN Indicator Light
O
2
Between 73% to 85% YELLOW Indicator light
A. YELLOW Solid
B. YELLOW Flashing Sensor
Failure
Call a qualified technician. Have a
back-up supply of oxygen ready.
SYSTEM FAILURE
O
2
Below 73%
RED Indicator Light
Continuous Audible Alarm
Sieve-GARD™ Compressor Shut-
down. Call a qualified technician.
Switch to a back-up supply of oxy-
gen immediately.
O
2
I/O
Auto Shut Down
Use Backup
Normal
RED
GREEN
Call Supplier

Invacare Perfecto2 IRC5PO2 Specifications

General

Flow Rate	0.5 to 5 LPM
Outlet Pressure	5.5 PSI
Oxygen Concentration	87% to 95.6%
Dimensions	23 in (H) x 13 in (W) x 12 in (D)
Electrical Requirements	120 VAC, 60 Hz
Operating Temperature	55°F to 90°F (12°C to 32°C)
Operating Humidity	up to 95% non-condensing
Sound Level	≤45 dB(A)
Noise Level	≤45 dB(A)
