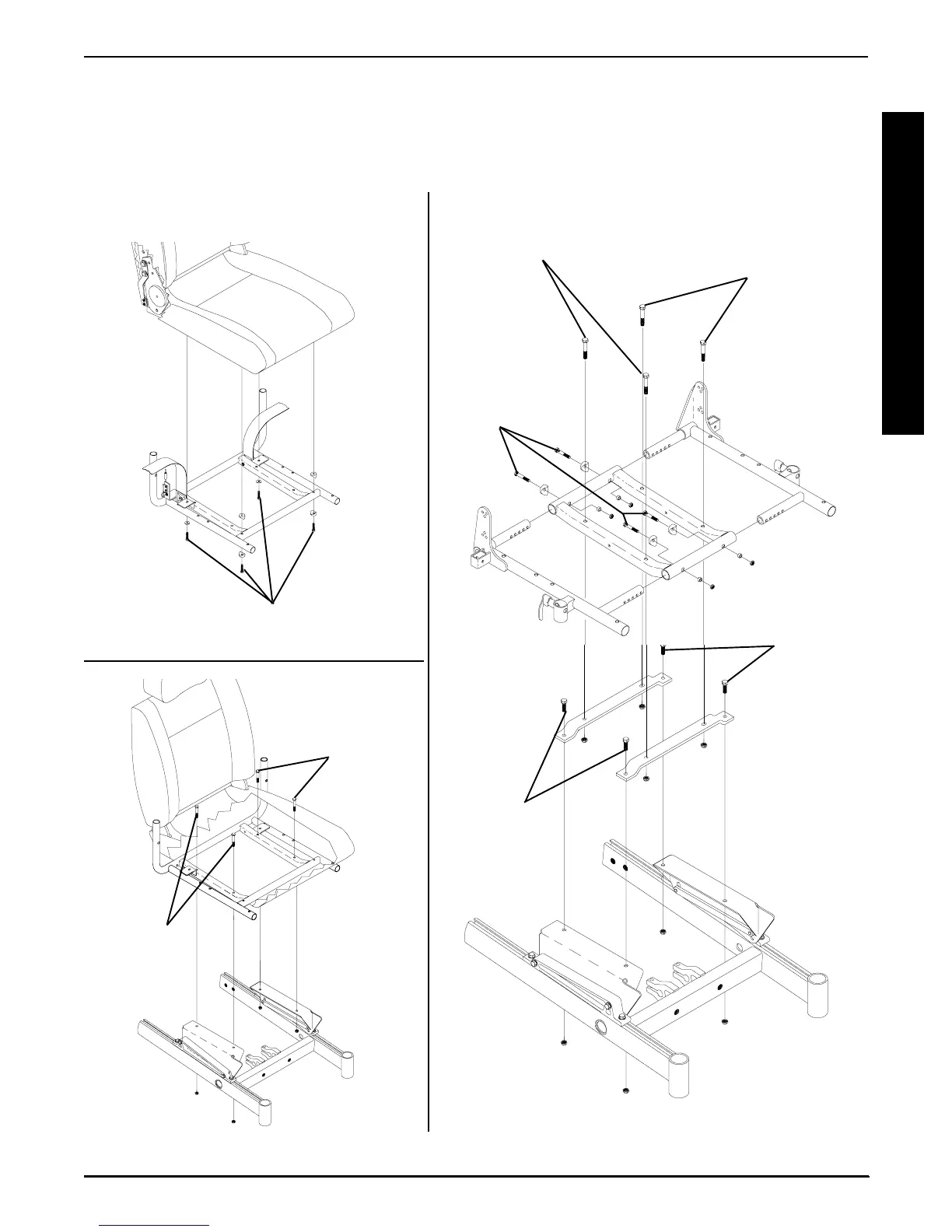

PROCEDURE 3HARDWARE TORQUE SPECIFICATIONS
Torque to
75-in/lbs
HARDWARE TORQUE SPECIFICATIONS
*CAPTAINS VAN SEAT
Loctite and Torque to
75 in/lbs
Torque to
156 in/lbs
*ADJUSTABLE SEAT FRAME
Torque to
156 in/lbs
Torque to
156-in/lbs
Torque to
156-in/lbs
Torque to
156-in/lbs
Torque to
156-in/lbs
* NOTE: For additional torque specifications, refer to the torque specifications drawing for the standard
seat frame assembly.
