16
Torque to
160 in/lbs
Loctite and torque to
160 in/lbs
Torque to
1020 in/lbs
8 - inch Wheels -
Torque to 120 in/lbs
9 - inch Wheels -
Torque to 160 in/lbs
Torque to
160 in/lbs
Loctite and
torque to
75 in/lbs
Tighten until snug
Pneumatic with Flat-Free
Wheel Halves - Torque to
160 in/lbs
Pneumatic Wheel Halves -
8 - inch - Torque to 18 in/lbs
9 - inch - Torque to 160 in/lbs
Loctite and
Torque to
75 in/lbs
Torque to
160 in/lbs
Torque to
160 in/lbs
Wheel Halves -
Torque to 75 in/lbs
FRONT OF
WHEELCHAIR
REAR OF
WHEELCHAIR

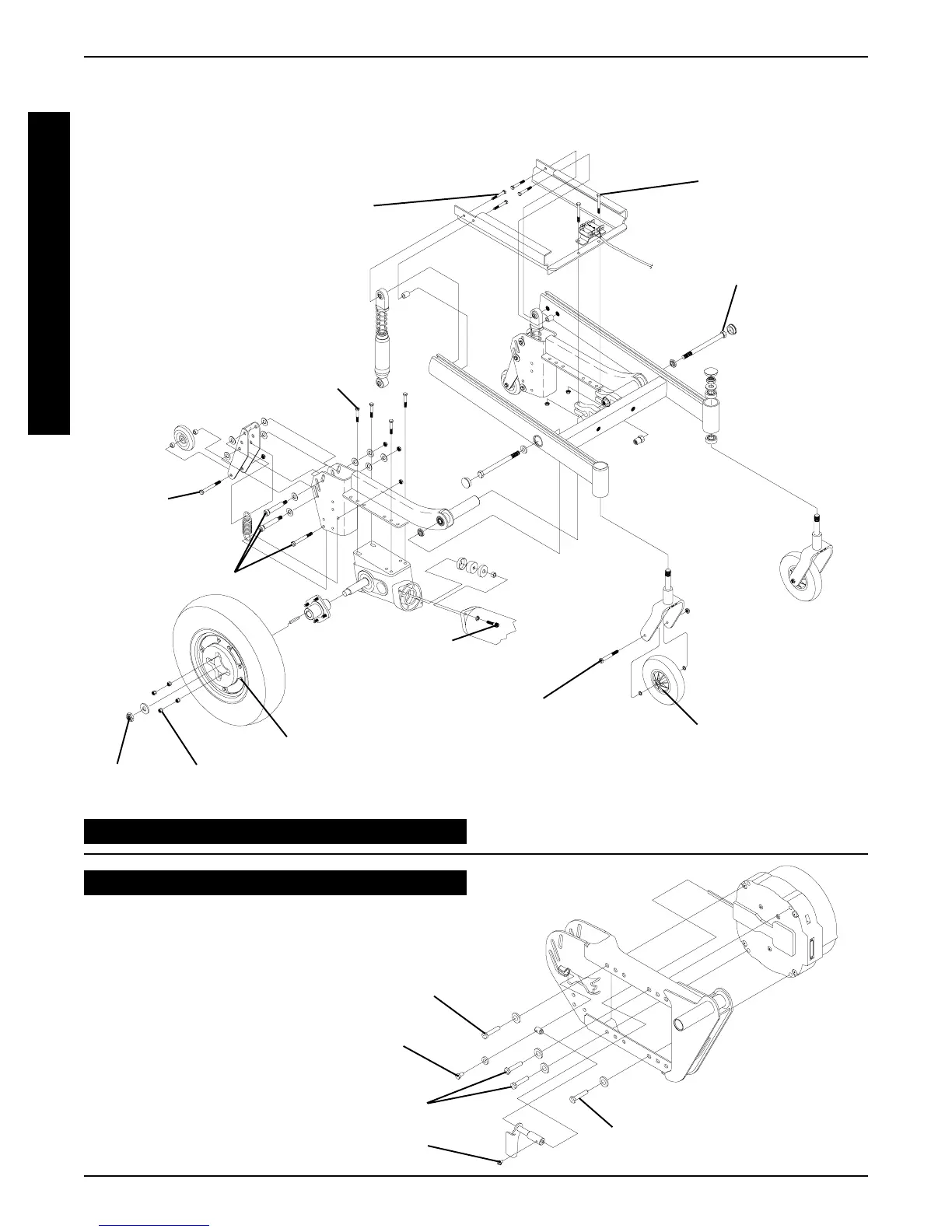

PROCEDURE 3 HARDWARE TORQUE SPECIFICATIONS
T
O
R
Q
U
E
S
P
E
C
I
F
I
C
A
T
I
O
N
S
REAR WHEEL DRIVE BASE FRAME HARDWARE
TORQUE SPECIFICATIONS
GEARLESS/BRUSHLESS MOTOR
Torque to 13 ft/lbs.
Torque to 13 ft/lbs.
Torque to 13 ft/lbs.
Torque to 25 in/lbs.
Torque to 75 in/lbs.
CONVENTIONAL MOTOR/GEARBOX
NOTE: All torque specifications called out for the con-
ventional motor/gearbox assembly are applicable to
the gearless/brushless motor except for the following:
