T1SetC1 sets the temperature 1 of automatic setting curve for cooling mode.
T1SetC2 sets the temperature 2 of automatic setting curve for cooling mode.
T4C1 sets the ambient temperature 1 of automatic setting curve for cooling mode.
T4C2 sets the ambient temperature 2 of automatic setting curve for cooling mode.
ZONE1 C-EMISSION sets the emission type of zone1 for cooling mode.
ZONE2 C-EMISSION sets the emission type of zone2 for cooling mode.
7.6 HEAT MODE SETTING Menu
MENU > FOR SERVICEMAN > HEAT MODE SETTING
Figure 3-7.14: HEAT MODE SETTING menu
In HEAT MODE SETTING the following parameters should be set.
HEAT MODE enables or disables heating mode.
t_T4_FRESH_H sets the refresh time of heating model climate temperature curve.
T4HMAX sets the ambient temperature above which the heat pump will
operate heating mode with lowest compressor frequency. The highest
value that T4HMAX can take is 35°C, which is the heating mode upper
ambient temperature operating limit of the heat pump. Refer to Figure
3-7.15.
T4HMIN sets the ambient temperature below which the heat pump will not operate in heating mode. The lowest value
that T4CMIN can take is -25°C, which is the heating mode lower ambient temperature operating limit of the heat pump.
Refer to Figure 3-7.15.
dT1SH sets the temperature difference between the heat pump leaving water
temperature (T1) and the heat pump leaving water set temperature (T1S)
above which the heat pump provides heated water to the space heating
terminals.
16°C
-15°C
5°C
2.0HRS
YES
3 HEAT MODE SETTING
3.1 HEAT MODE
3.2 t_T4_FRESH_H
3.3 T4HMAX
3.4 T4HMIN
3.5 dT1SH
ADJUST
1/3
35°C
28°C
-5°C
5MIN
2°C
3 HEAT MODE SETTING
3.6 dTSH
3.7 t_INTERVAL_H
3.8 T1SetH1
3.9 T1SetH2
3.10 T4H1
ADJUST
2/3
FLH
2MIN
RAD.
7°C
3 HEAT MODE SETTING
3.11 T4H2
3.12 ZONE1 H-EMISSION
3.13 ZONE2 H-EMISSION
3.14 t_DELAY_PUMP
ADJUST
3/3
Figure 3-7.15: T4HMAX, T4HMIN
OFF
HEAT
HEAT(Lowest
compressor
frequency)
T4HMIN
T4HMAX
T4
Abreviations:
T4: Outdoor ambient temperature
Figure 3-7.16: dTSH
Note:
Only when ROOM TEMP is enabled will this function
be available
Matrix Mono
83
Part 3 - Installation and Field Settings
dTSH sets the temperature difference between the actual room temperature (Ta) and set room temperature (TS) above
which the heat pump provides heated water to the space heating terminals. When TS – Ta ≥ dTSH the heat pump provides
heated water to the space heating terminals and when Ta ≥ TS the heat pump does not provide heated water to the space
heating terminals. Refer to Figure 3-7.16. dTSH is only relevant if YES is selected for ROOM TEMP in the
TEMP. TYPE
SETTING menu. Refer to Part 3, 7.8 “TEMP. TYPE SETTING Menu”.
t_INTERVAL_H sets the heating mode compressor re-start delay. When the compressor stops running, it will not re-start
until at least t_INTERVAL_H minutes have elapsed.
T1SetH1 sets the temperature 1 of automatic setting curve for heating mode.
T1SetH2 sets the temperature 2 of automatic setting curve for heating mode.
T4H1 sets the ambient temperature 1 of automatic setting curve for heating mode.
T4H2 sets the ambient temperature 2 of automatic setting curve for heating mode.
ZONE1 H-EMISSION sets the emission type for heating mode.
ZONE2 H-EMISSION sets the emission type for heating mode.
7.7 AUTO MODE SETTING Menu
MENU > FOR SERVICEMAN > AUTO MODE SETTING
In AUTO MODE SETTING the following parameters should be set.
T4AUTOCMIN sets the ambient temperature below which the heat pump will
not provide chilled water for space cooling in auto mode. Refer to Figure 3-7.18.
T4AUTOHMAX sets the ambient temperature above which the heat pump will
not provide heated water for space heating in auto mode. Refer to Figure 3-7.18.

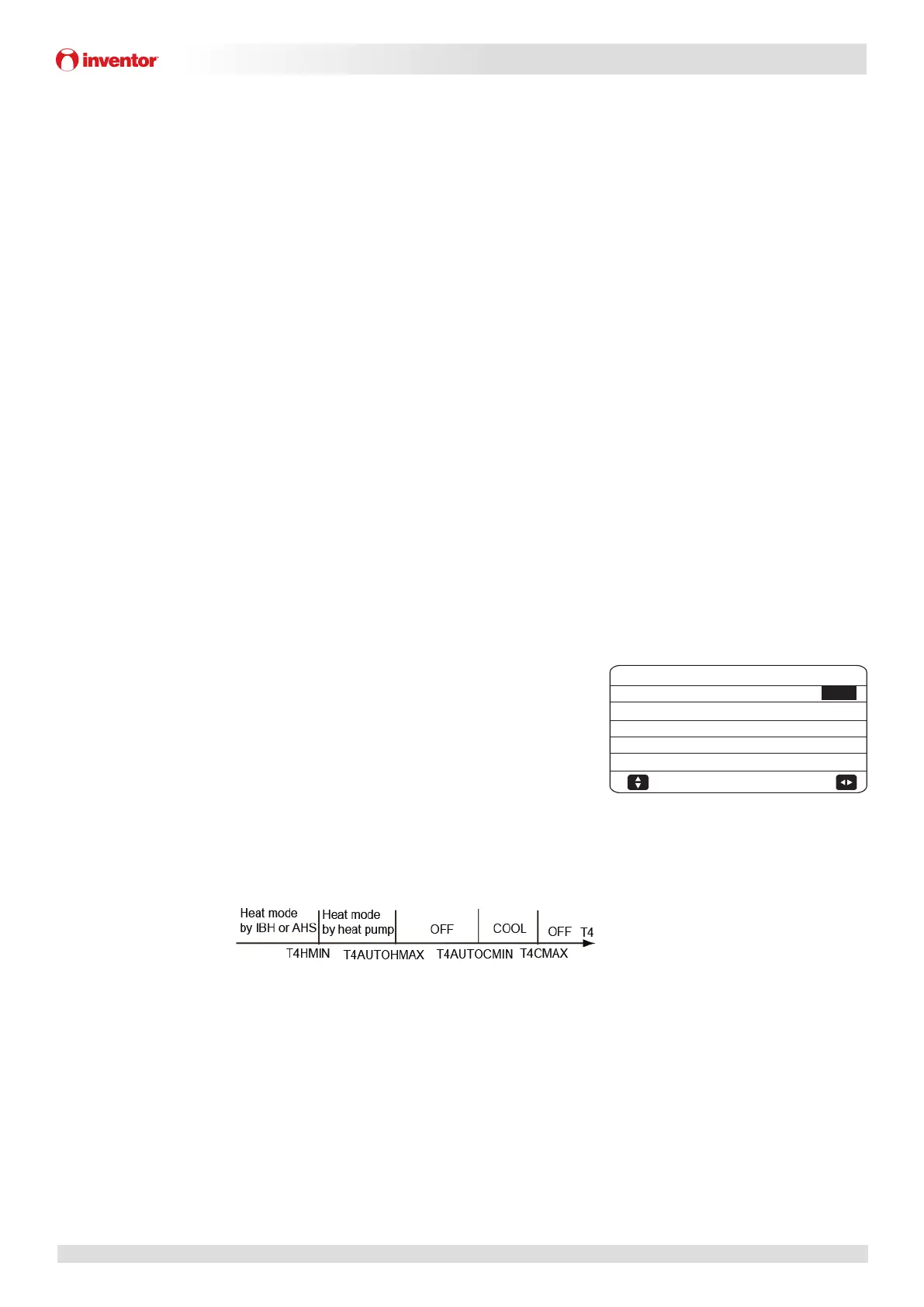

Figure 3-7.18: T4AUTOCMAX, T4AUTOCMIN
Abreviations:
HP: Heat pump
AHS: Additional heating source
IBH: Backup electric heater
T4CMAX: The ambient temperature above which the heat pump will not operate in cooling
mode.
T4HMIN: The ambient temperature below which the heat pump will not operate in heating
mode.
Figure 3-7.17: AUTO MODE SETTING menu
17°C
25°C
4 AUTO. MODE SETTING
4.1 T4AUTOCMIN
4.2 T4AUTOHMAX
ADJUST
