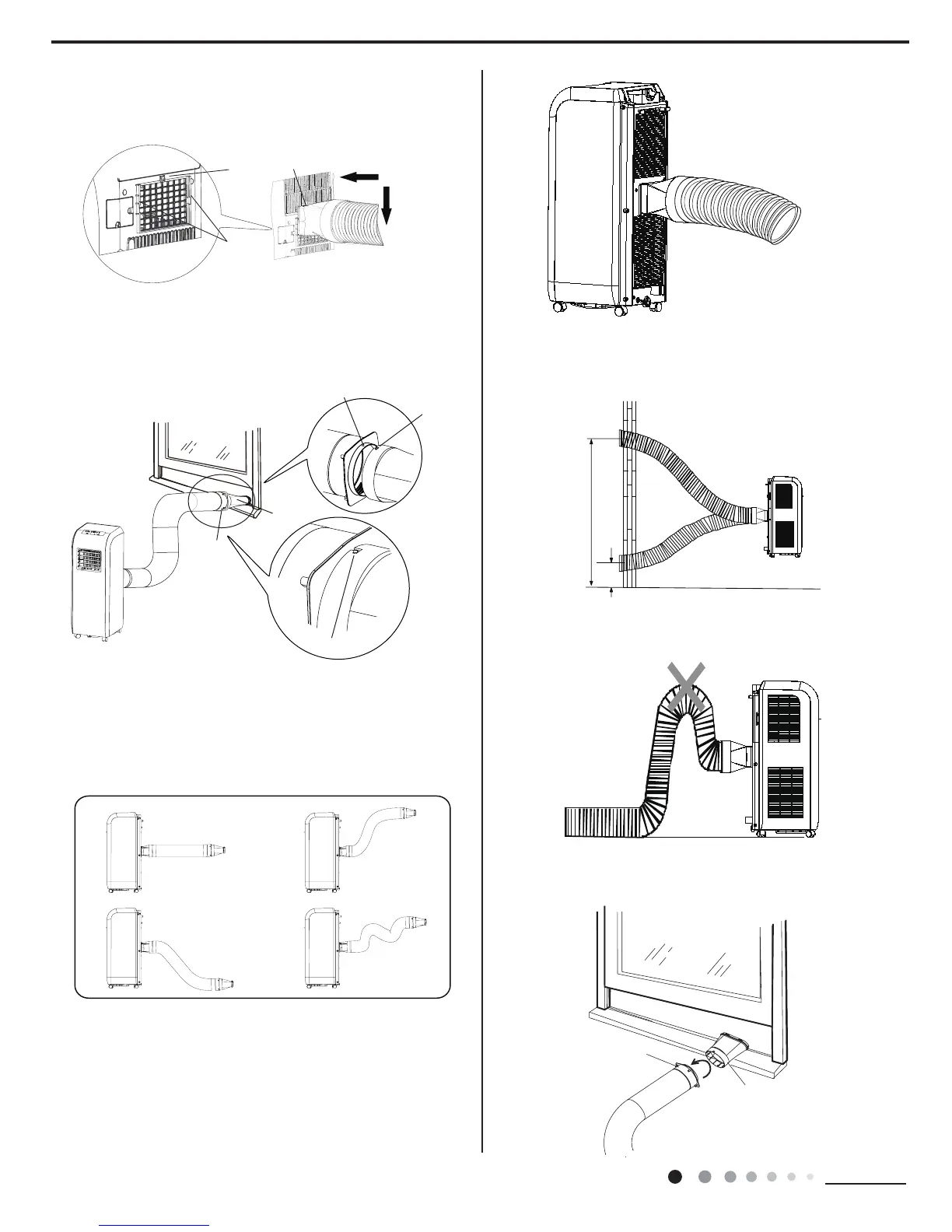

(2) Insert joint A of heat discharge pipe (the side with "TOP" is
upwards) into the groove until you hear a sound.(As shown in
following fig
(3) Aim the locating pole of joint B of heat discharge pipe at the
opening of joint C; rotate it slightly to make joint B and joint C
connect tightly.
clasp
groove
the side with "TOP" is upward
B. Disassemble heat discharge pipe
(1) Remove joint B from joint C.(As shown in following fig
In order to improve cooling effici ncy, the heat discharge pipe
should be as short as possible and flat without curve to ensure
smooth heat discharge.(As shown in following fig
●The length of the exhaust pipe is less than 1m. It is
recommended to use it with shortest length.
●When installing, exhaust pipe should be as flat as possible.
Don't prolong the pipe or connect it with other exhaust pipe.
●Correct installation is as shown in figure (When installing it on
wall, height of hall should be about 40cm-130cm from floor)
●Wrong installation is shown in following figure (If the pipe is
bent too much, it would easily cause malfunction.)
joint B
joint C
joint B
joint C
