Service Manual
11. Removal Procedure
Warning: disconnect power supply before
removal; discharge the refrigerant completely
before unsoldering the pipes.

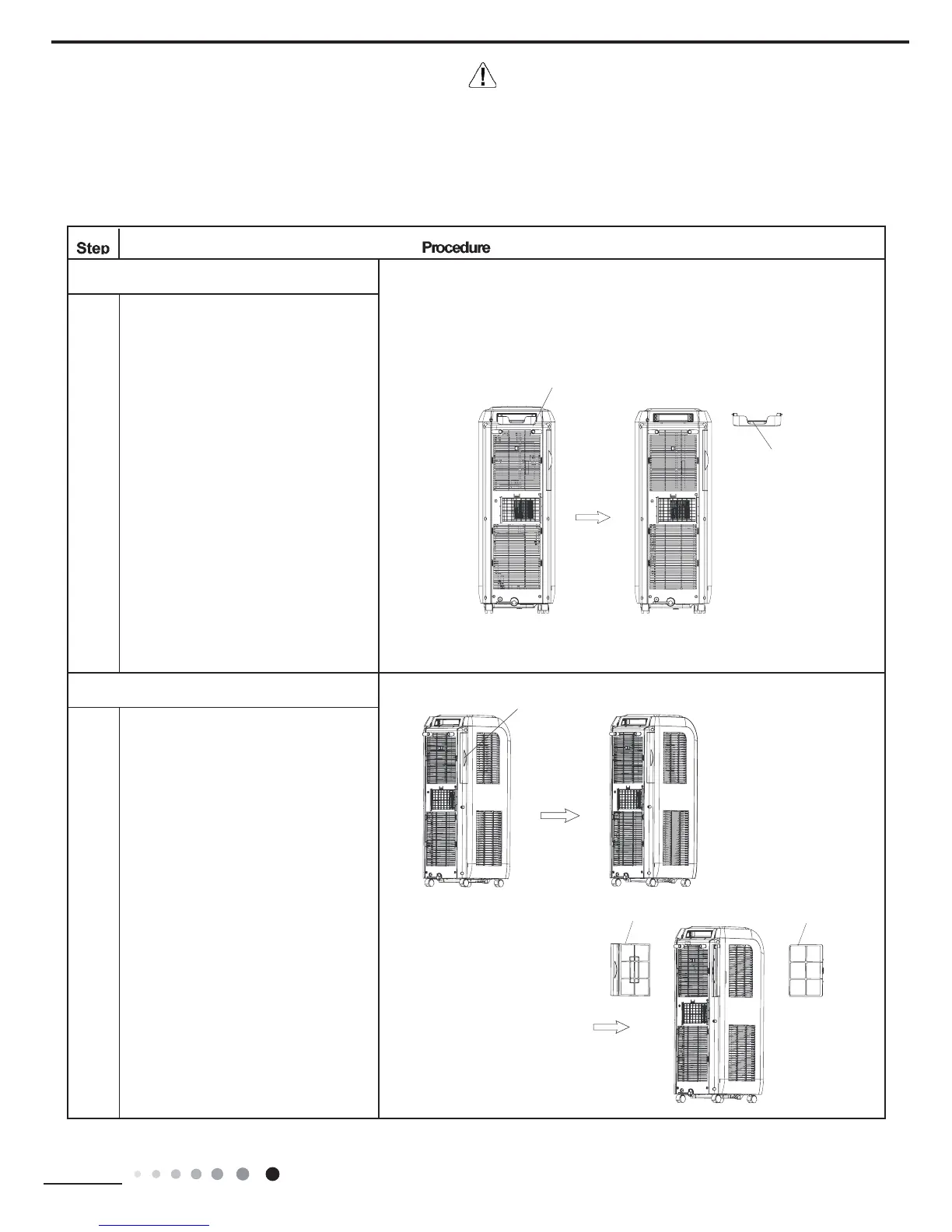

1.Remove remote controller box
2.Remove filter sub-assy
Break out the remote controller box, then
push the middle of remote controller box
to make clasps remove from remote
controller box.
Pull the filter sub-assy outward by hand
to remove the filter.
remote controller box
remote controller box
filter sub-assy
filter sub-assy2
filter sub-assy1
