Service Manual

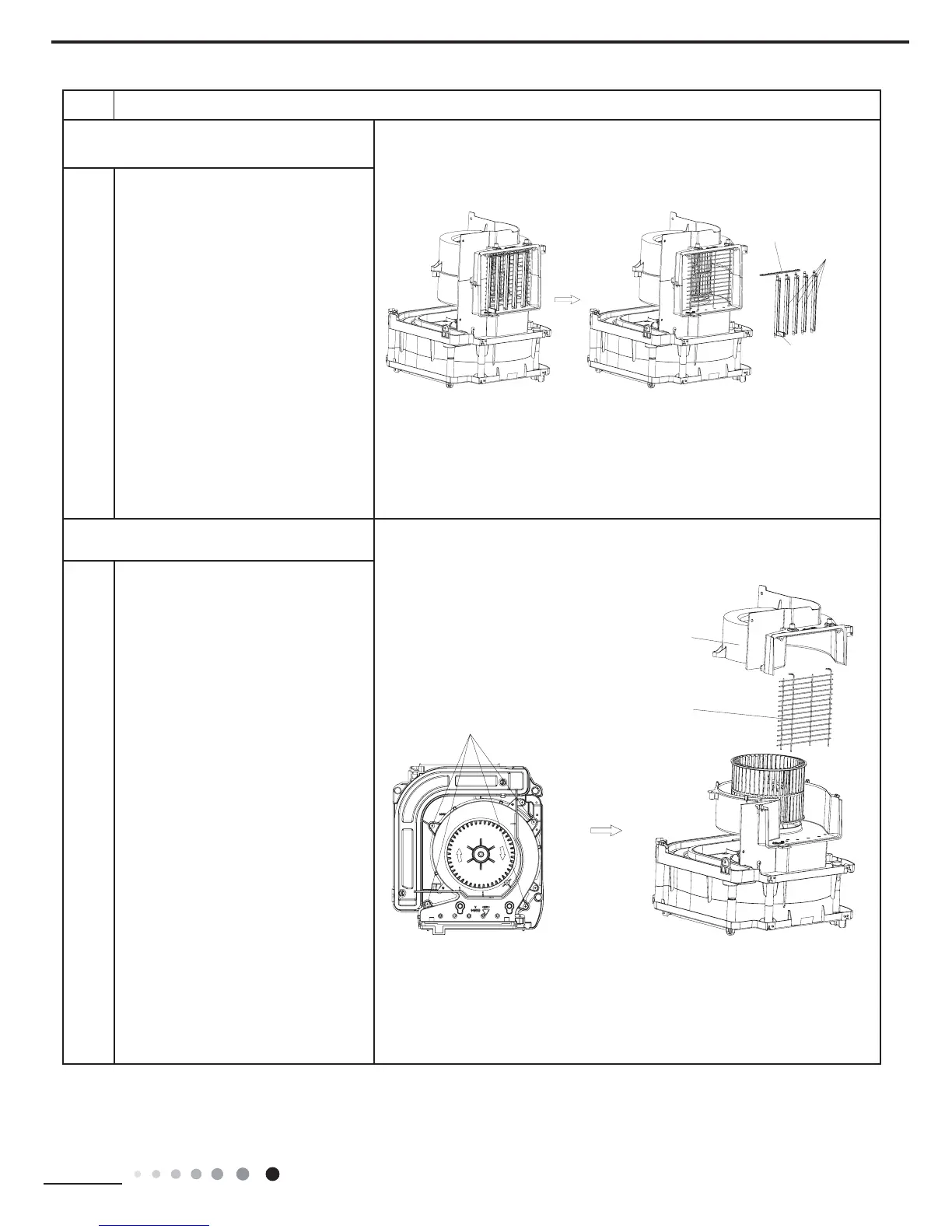

14.Remove connecting rod and vertical
louver
15.Remove volute (upper) and mesh
enclosure
Break out connecting rod and vertical
louver by hand to remove them.
Unscrew 4 screws as diagram shown to
remove volute (upper) and mesh
enclosure.
Step Procedure
vertical louver 2
vertical louver 1
connecting rod
volute (upper)
mesh enclosure
screws
41
