Service Manual

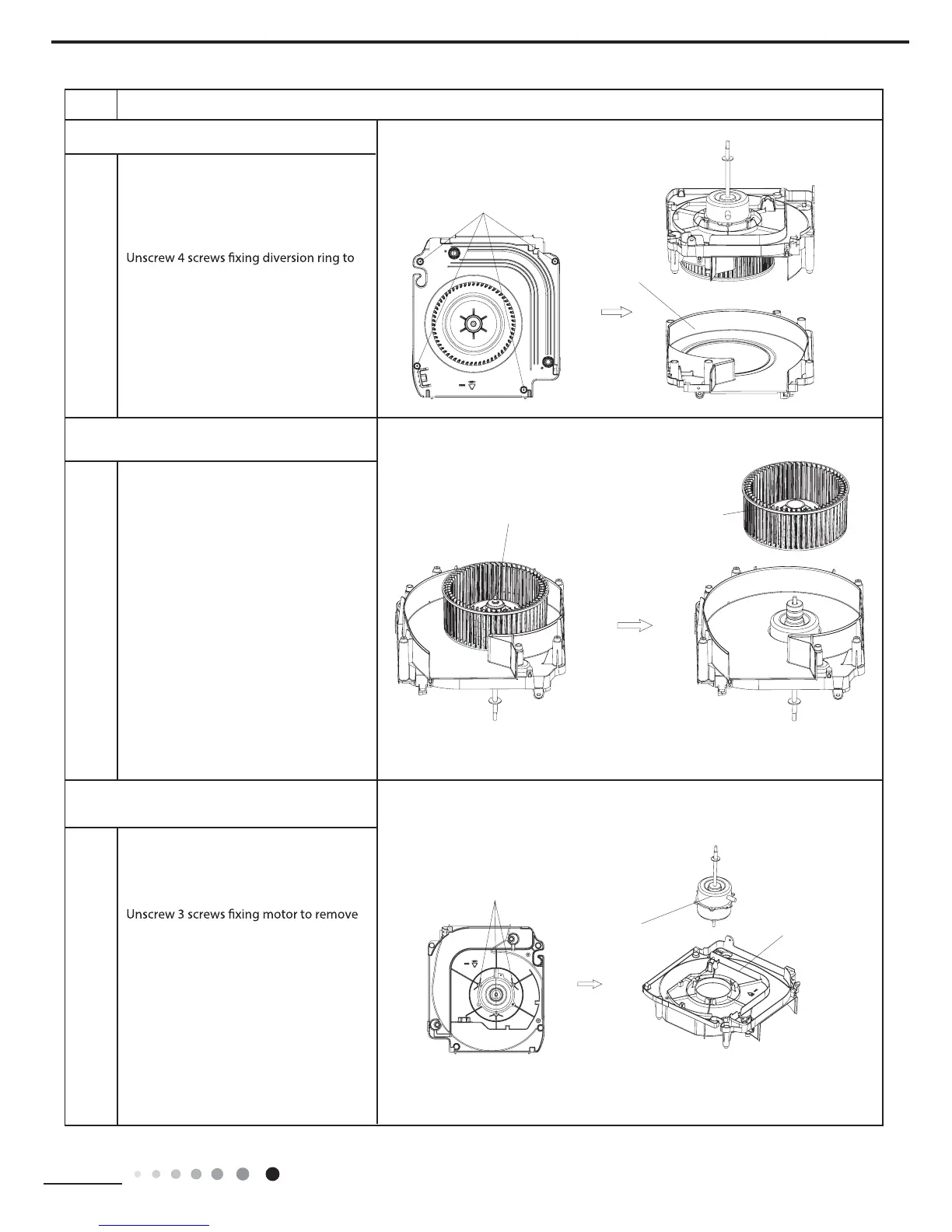

18.Remove diversion ring
19.Remove centrifugal louver (lower)
20.Remove motor
remove diversion ring.
Unscrew nuts of centrifugal louver
anticlockwise, take out gasket to remove
the centrifugal louver (lower).
the motor.
Step Procedure
screws
diversion ring
centrifugal louver (lower)
nut
screws
motor
motor tray
43
Maintenance
