INVENTOR EVI-18 Service Manual

11
Specifications
0 10203040506070 90 0110210010908070605040302010
80
11
10
9
8
7
6
5
4
3
2
1
0
Compressor speed (rps)
Current (A)
11
10
9
8
7
6
5
4
3
2
1
0
Compressor speed (rps)
Current (A)
• Conditions
Indoor : DB27˚C/WB19˚C
Outdoor : DB35˚C/WB24˚C
Indoor air flow : High
Pipe length : 5m
• Conditions
Indoor : DB20˚C/WB15˚C
Outdoor : DB7˚C/WB6˚C
Indoor air flow : High
Pipe length : 5m
220V
230V
240V
220V
230V
240V
<Cooling> <Heating>

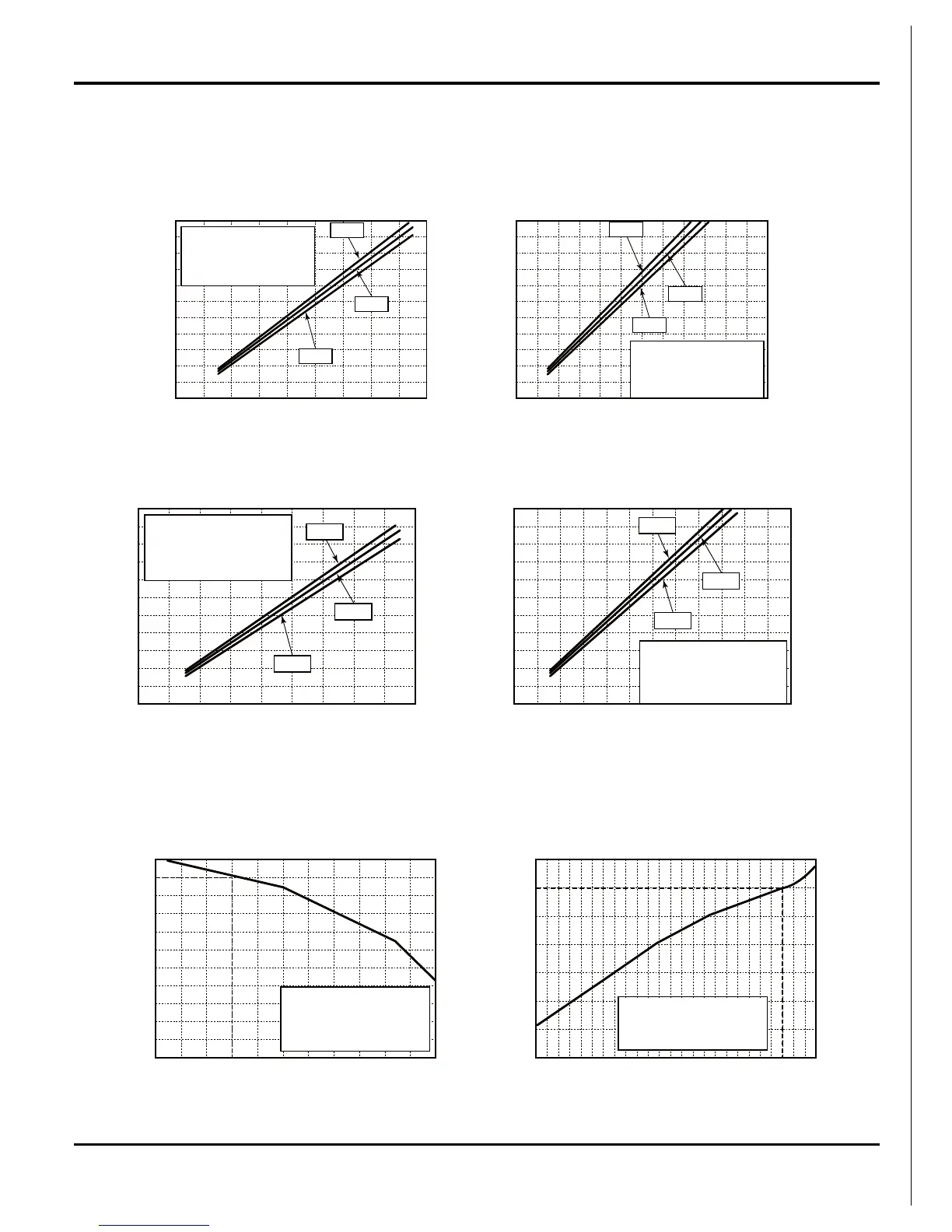

2.2 Operation Characteristic Curve
18K
24K
2.3 Capacity Variation Ratio According to Temperature
<Cooling> <Heating>
32 33 34 35 36 37 38 39 43 –15 –10 –5 0 5 7 10
40 41 42
100
105
95
90
85
80
75
70
65
60
55
50
Outdoor temp. (˚C)
Capacity ratio (%)
110
100
90
80
70
60
50
40
Outdoor temp. (˚C)
Capacity ratio (%)
• Conditions
Indoor : DB20˚C/WB15˚C
Indoor air flow : High
Pipe length : 5m
• Conditions
Indoor : DB27˚C/WB19˚C
Indoor air flow : High
Pipe length : 5m
<Cooling> <Heating>
0 10203040506070 90 0110210010908070605040302010
80
11
10
9
8
7
6
5
4
3
2
1
0
Compressor speed (rps)
Current (A)
11
10
9
8
7
6
5
4
3
2
1
0
Compressor speed (rps)
Current (A)
• Conditions
Indoor : DB27˚C/WB19˚C
Outdoor : DB35˚C/WB24˚C
Indoor air flow : High
Pipe length : 5m
• Conditions
Indoor : DB20˚C/WB15˚C
Outdoor : DB7˚C/WB6˚C
Indoor air flow : High
Pipe length : 5m
220V
230V
240V
220V
230V
240V
