Specifications

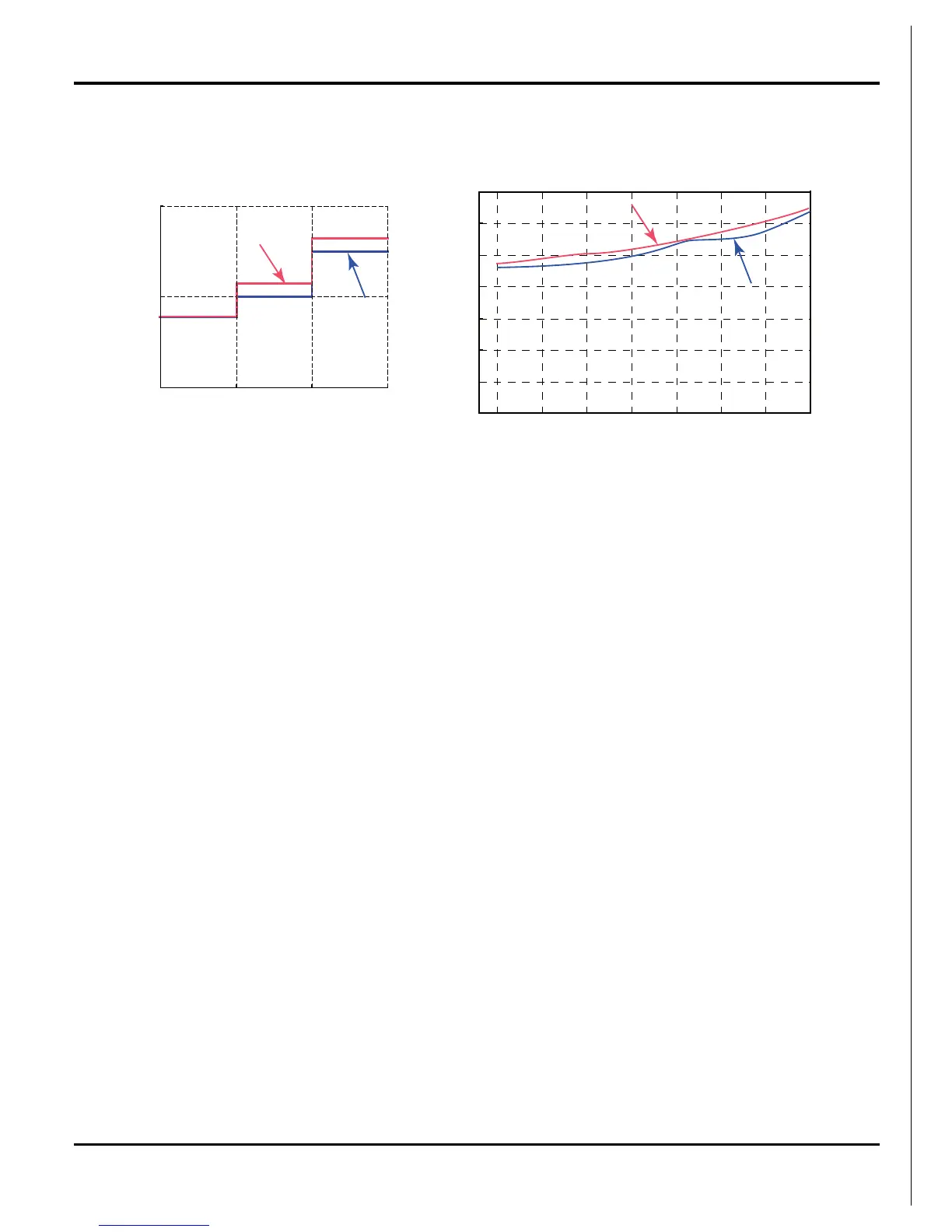

2.5 Noise criteria curve tables for both models
50
40
30
Indoor side noise when blowing
Indoor fan motor rotating speed
Low
Middle
High
Noise/dB(A)
40
42
44
46
48
50
52
54
20
40
30
50
60
70
80
90
Compressor frequency(Hz)
Noise dB(A)
Heating
Cooling
24K
18K
15
17
Table of Contents
Table of Contents
2
Summary and Features
4
Part 1 Safety Precautions
5
Part 2 Specifications
6
Unit Specifications
6
Operation Characteristic Curve
14
Capacity Variation Ratio Accordingtotemperature
14
Operation Date
15
Noise Criteria Curve Tables for both Models
16
Part 3 Construction Views
17
Indoor Unit
17
Outdoor Unit
18
Part 4 Refrigerant System Diagram
19
Part 5 Schematic Diagram
21
Electrical Data
21
Electrical Wiring
21
Schematic Diagram
22
Printed Circuit Board
23
Function and Control
28
Remote Controller Description
28
Changing Batteries and Notices
31
Unit Indlcation Section
31
Unit ON/OFF Button
31
Description of each Control Operation
32
Outdoor Units
34
Part 7 Installation Manual
37
Tools Required for Installation
37
Installation Position Selection
37
Installation of Indoor Unit
37
Installation of Outdoor Unit
41
Test Operation
42
Part 8 Exploded Views and Parts List
43
Exploded View
43
Parts Listt
49
Part 9 Troubleshooting
59
Precautions before Performing Inspection or Repair
59
Confirmation
60
Flashing LED of Indoor/Outdoor Unit and Primary Judgement
60
How to Check Simply the Main Part
65
2-Way, 3-Way Valve Appearance
83
Gas Charging
89
Part 10 Removal Procedure
90
Removal Procedure of Indoor Unit
90
Removal Procedure of Outdoor Unit
96
