INVERTEC optidrive E IP20 - Connection Diagram

Optidrive ODE-3 1Ph Output User Guide Revision 1.00
www.invertekdrives.com
13
4
Power Wiring

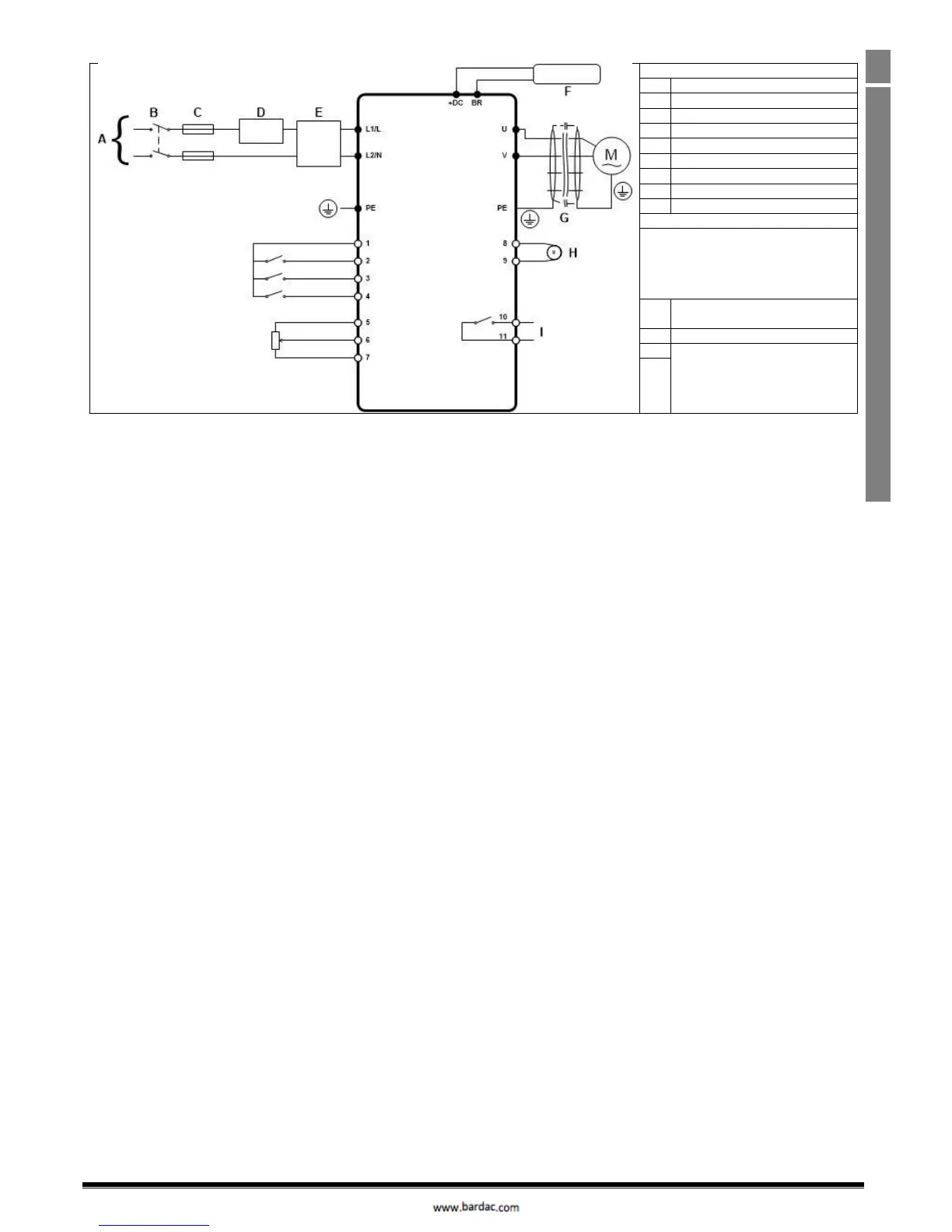

4.8. Connection Diagram
Power Connections
A
Incoming Power Supply
B
External Isolator / Disconnect
C
External MCB or Fuse
D
Optional Input Choke
E
Optional Input Filter
F
Optional Brake Resistor
G
Shielded Motor Cable
H
Analog / Digital Output
I
Relay Output
Control Connections
See section 4.10
8
Analog Output
0 – 10 Volts
9
0 Volt
10
Relay Output
‘Drive Healthy’ = Closed
11
