Optidrive ODE-2 User Guide Revision 3.30
www.invertekdrives.com
23
7

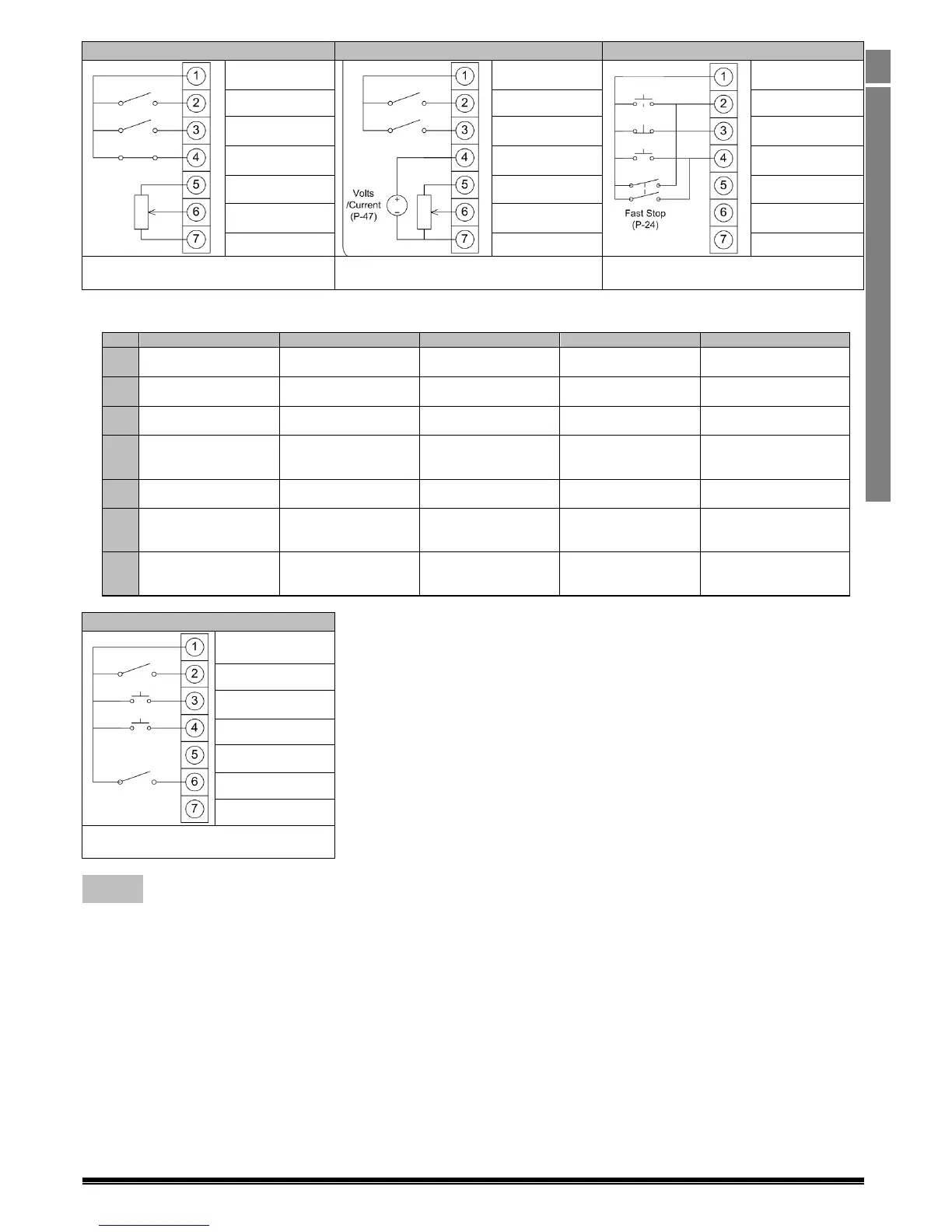

Analog and Digital Input Configurations
Terminal Mode P-12=0, P-15=3
Terminal Mode P-12=0, P-15=4
Terminal Mode P-12=0, P-15=11
+24 Volt
+24 Volt
+24 Volt
Run (Enable)
Run (Enable)
Run Forward
Analog / Preset 1
Local / Remote
(Hand / Auto)
Stop
External Trip
Remote (Auto)
Reference
Run Reverse
+ 10 Volts
+ 10 Volts
+ 10 Volts
Reference
Local (Hand)
Reference
Reference
0 Volts
0 Volts
0 Volts
Analog speed input with 1 preset speed and
motor thermistor trip
Local or remote analog speeds
(2 analog inputs)
Push button fwd/rev/stop with fast stop
using 2
nd
deceleration ramp
7.2. Keypad Mode (P-12 = 1 or 2)
P-15
Digital input 1 (T2)
Digital input 2 (T3)
Digital input 3 (T4)
Analog input (T6)
Comments
0, 5,
8..12
Open: Stop (disable)
Closed: Run (enable)
Closed : remote UP push-
button
Closed : remote DOWN
push-button
Open : Forward
+24V : Reverse
1
Open: Stop (disable)
Closed: Run (enable)
No effect
No effect
No effect
Speed reference = PI
Controller Output
2
Open: Stop (disable)
Closed: Run (enable)
Closed : remote UP push-
button
Closed : remote DOWN
push-button
Open : Keypad speed ref
+24V : Preset speed 1
3
1)
Open: Stop (disable)
Closed: Run (enable)
Closed : remote UP push-
button
External trip input :
Open: Trip, Closed: Run
Closed : remote DOWN
push-button
Connect external motor
thermistor PTC type or
similar to digital input 3
4
Open: Stop (disable)
Closed: Run (enable)
Closed : remote UP push-
button
Open : Keypad speed ref
Closed : Analog input 1
Analog input 1
6
1)
Open: Stop (disable)
Closed: Run (enable)
Open : Forward run
Closed : Reverse run
External trip input :
Open: Trip, Closed: Run
Open : Keypad speed ref
+24V : Preset speed 1
Connect external motor
thermistor PTC type or
similar to digital input 3
7
Open: Forward Stop
Closed: Forward Run
Open: Reverse Stop
Closed: Reverse Run
External trip input :
Open: Trip, Closed: Run
Open : Keypad speed ref
+24V : Preset speed 1
Closing digital inputs 1 and 2
together carries out a fast
stop (P-24)
Example Wiring
Keypad Mode P-12=1 or 2, P-15=0
+24 Volt
Run (Enable)
Increase Speed
Reduce Speed
+ 10 Volts
Forward / Reverse
0 Volts
Remote push button speed control with
fwd/rev
NOTE
By default if the enable signal is present the drive will not Enable until the START button is pressed. To automatically enable the drive when the
enable signal is present set P-31 = 2 or 3. This then disables the use of the START & STOP buttons
