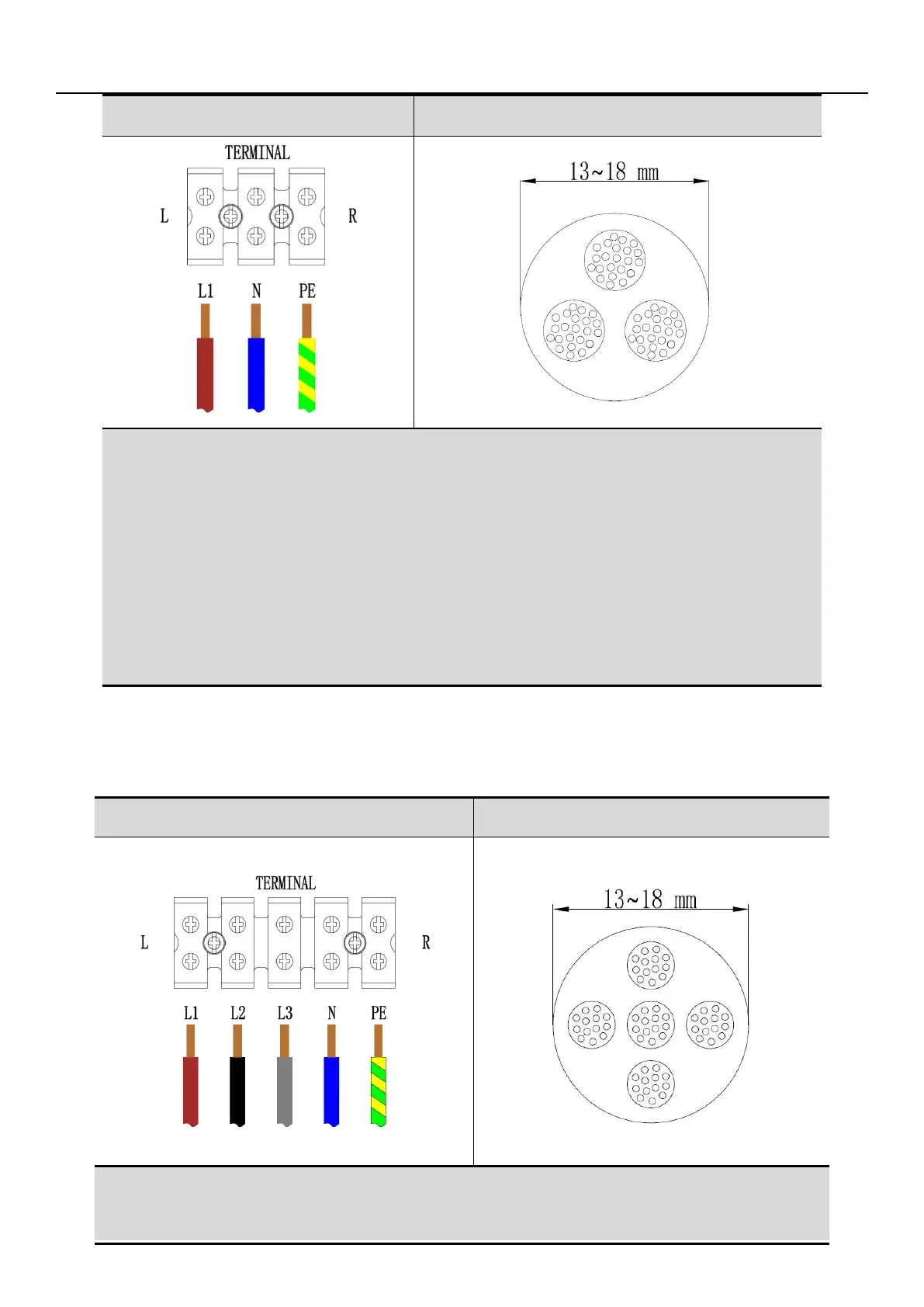

Wiring terminal definition
Note: 1. For EVC 16-AW7KGP1UE charger, the maximum continuous working current is 32A, and the cable
should meet the above requirements. It is recommended to use the 10 AWG cable with 600Vac withstand voltage.
Of course, you can also choose a larger size of the cable.
2. For single-phase AC charger, the power cable can be use with sheath, but its maximum allowable
diameter should not exceed the range shown in the above diagram, otherwise the assembly can not be completed.
For the charger models: EVC 16-AW11KGP1UE and EVC 16-AW22KGP1UE, they are suitable for 400 (380) Vac
three-phase AC power (TN):
Wiring terminal definition
Note: 1. For EVC 16-AW11KGP1UE Charger, the maximum continuous working current is 16A, and the cable
should meet the above requirements. It is recommended to use the 12 AWG cable with 600Vac withstand voltage.
To Next Page
