5.3 Support rear plate mounting
After selecting the installation location , drill the holes on the wall, and the holes aperture should be suitable for the M6 x 50
type expansion bolt. This data can be obtained from the technical parameters of the expansion bolt. Fixing the installation rear
plate to the wall with the expansion bolt. Torque parameters of bolt can be obtained through technical parameters.
After installing the rear plate, check whether the rear plate is properly installed. Ensure that it is not loose.

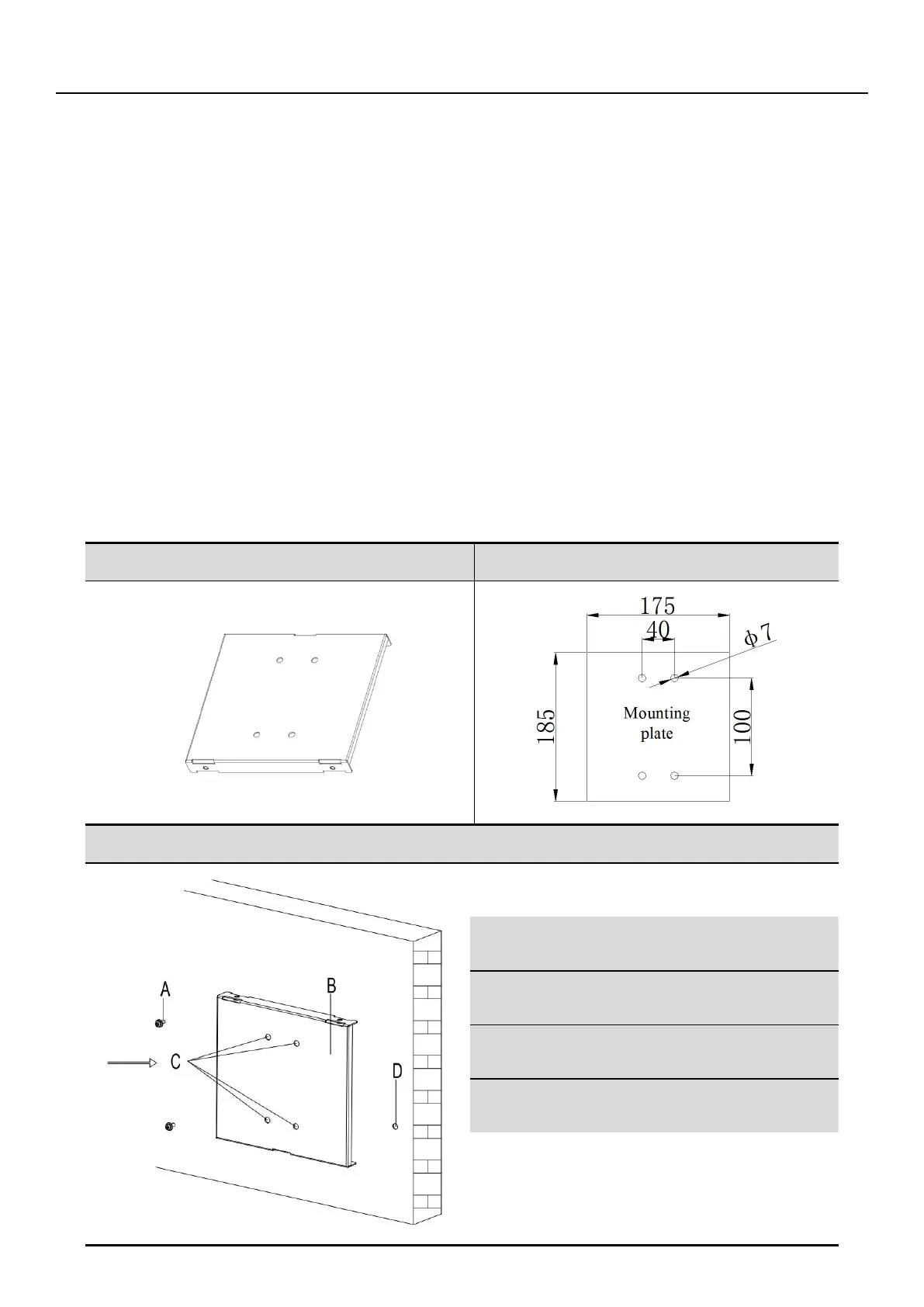

Installation schematic diagram of the support rear plate
