2. For EVC 16-AW22KGP1UE Charger, the maximum continuous working current is 32A, and the cable
shall meet the above requirements. It is recommended to use a 10 AWG cable with 600Vac withstand voltage. Of
course, you can also choose a larger size of the cable.
3. For single-phase AC Charger, the power cable can be use with sheath, but its maximum allowable
diameter should not exceed the range shown in the above diagram, otherwise the assembly can not be completed..
4.2 Electrical installation procedure
Since the connection of the cable is made in the rear plate of the charger, the electrical installation work should be
completed before the mechanical installation.
(1) Cable pre-treatment
Measure the actual length of the AC power cable according to the installation location of the charger, and pretreat the cable
(If possible, crimp the cable to a tubular terminal for subsequent connection) for preparation.

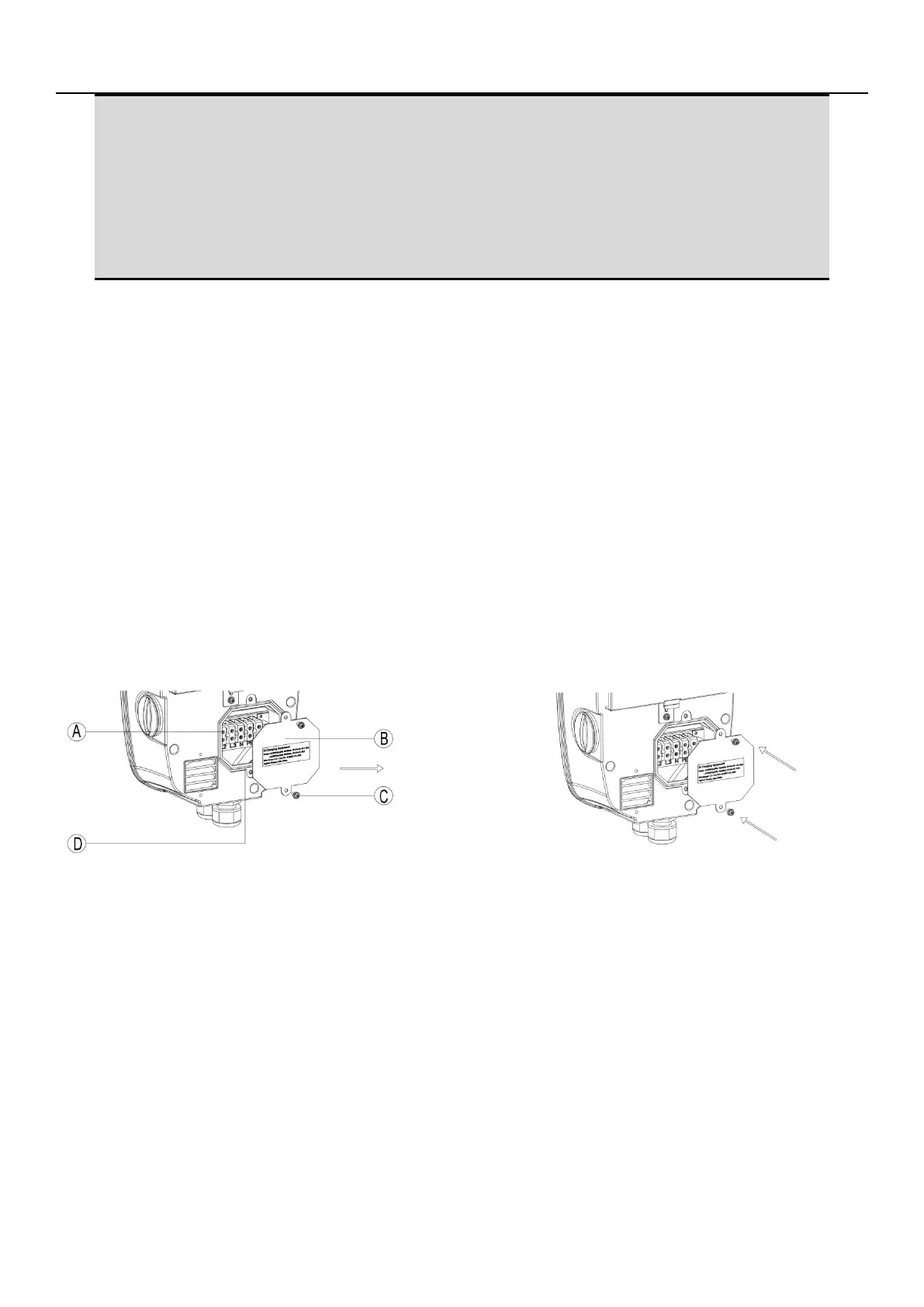

Remove the rear plate maintenance cover
Remove the maintenance cover screws using a screwdriver, and you can see the terminal connect to the AC cable and
the power distribution module.
Place the maintenance cover and fixing screws aside for standby
A: Wiring terminal; B: Maintenance cover plate;
C: Screws; D: Waterproof seal.
Note: Be sure not to discard the related parts when removing the maintenance cover, such as
waterproof seals and securing screws
(2) Pre-install cables
Loosen the waterproof jacket of the cable by turning it counterclockwise.
To Next Page
