Insert the pre-treated cable into the waterproof jacket. Reserve the cable length
around 10~15mm based on the installation position for easy access to the terminal. (Note: Crimp the cable to a tubular
terminal is essentially for safety connection )
Tighten the waterproof jacket by turning a counterclockwise direction.

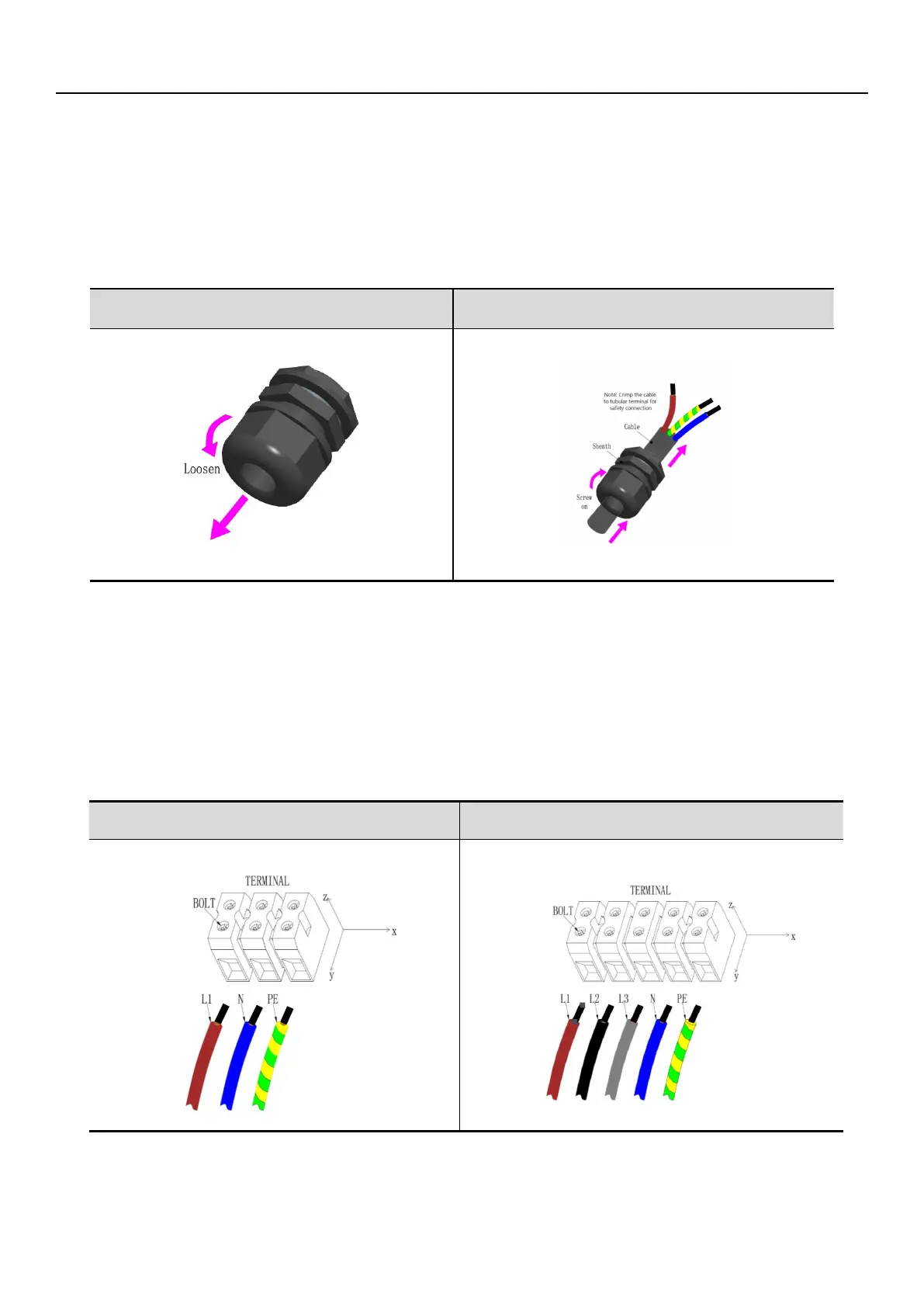

Loosen the cable waterproof jacket
Cable and waterproof jacket installation
(3) Charger AC input cable connection
Loosen the wiring terminal fixing screws by using a screwdriver.
Connect the cable to the corresponding terminal port. See follow installation diagram for details. Use a screwdriver to
tighten the screws with a correct torque. (Recommended torque : Max 2 N.m / 10.6 Lbf. in )
Check the cable after finishing connection: pull the cable with a little force if the cable is not pulled out then connection is well;
AC input cable wiring diagram for single-phase charger
AC input cable wiring diagram for three-phase charger
