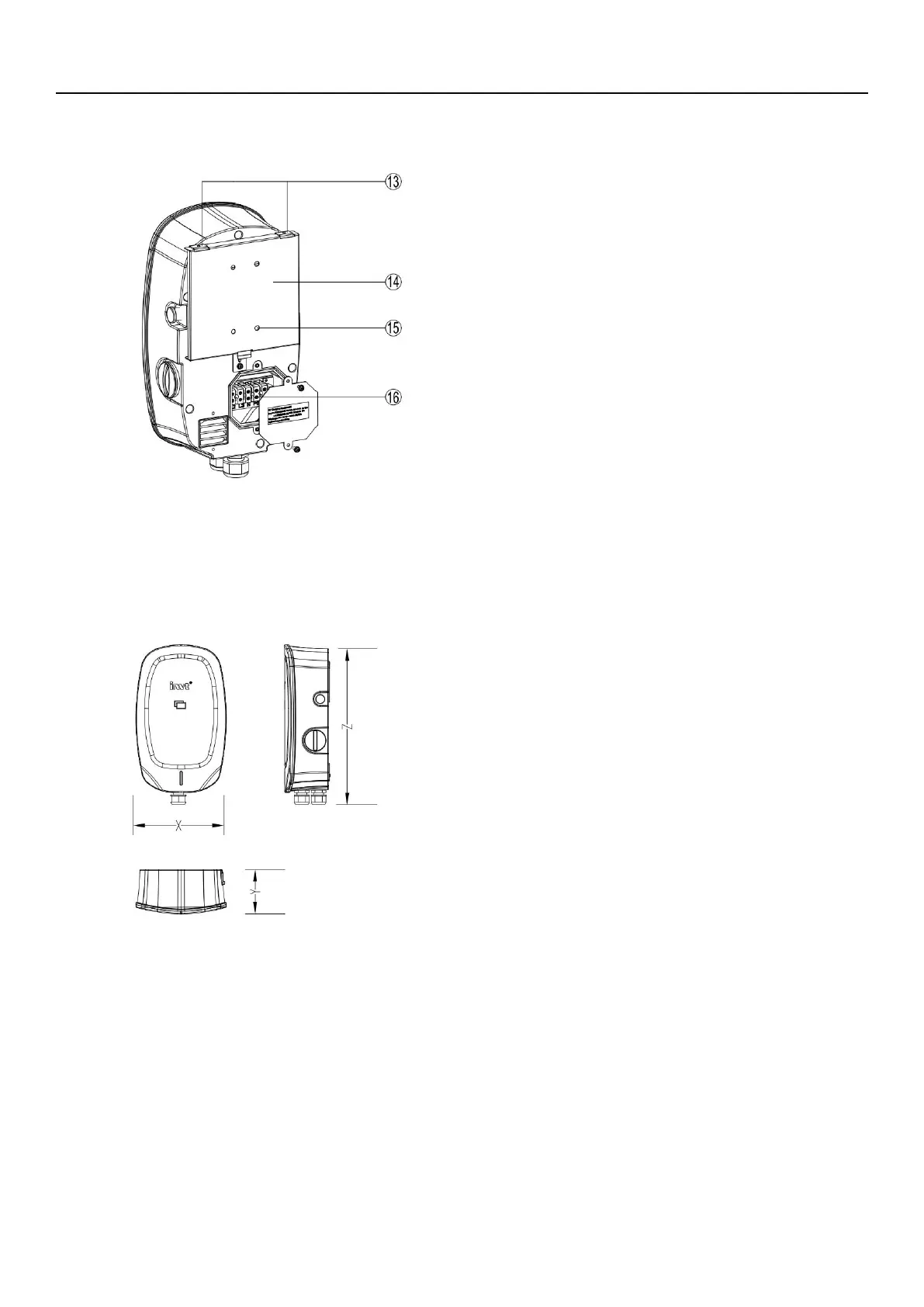

X Width of the charger
Y Depth of the charger
Z Height of the charger
X: 230 mm Y: 115 mm Z: 375 mm
13 Mounting bracket
14 Rear plate
15 Wall installation hole
16 AC wire connector
