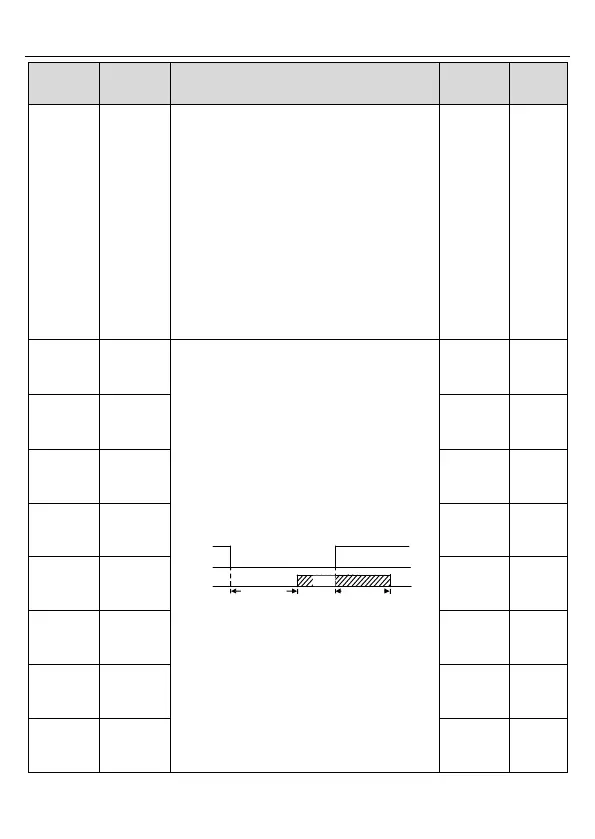

Goodrive10 Series Mini VFD Function parameters
-45-
Function
code
Name
Description
Default
Modify
Sln: 3-wire control, FWD: Forward running,
REV: Reverse running
Note: For 2-wire controlled running mode,
when the FWD/REV terminal is valid, if the
VFD stops due to a stop command given by
another source, the VFD does not run again
after the stop command disappears even if
the control terminal FWD/REV is still valid. To
make the VFD run, you need to trigger
FWD/REV again, for example, PLC
single-cycle stop, fixed-length stop, and valid
STOP/RST stop during terminal control. (See
P07.04).
P05.14
S1
switch-on
delay
The function code defines the corresponding
delay time of electrical level of the
programmable terminals from switching on to
switching off.
Si electrical level
Si valid
invalid invalid
Switch-on
delay
Switch-off
delay
valid
Setting range:0.00050.000s
0.000s
P05.15
S1
switch-off
delay
0.000s
P05.16
S2
switch-on
delay
0.000s
P05.17
S2
switch-off
delay
0.000s
P05.18
S3
switch-on
delay
0.000s
P05.19
S3
switch-off
delay
0.000s
P05.20
S4
switch-on
delay
0.000s
P05.21
S4
switch-off
delay
0.000s
