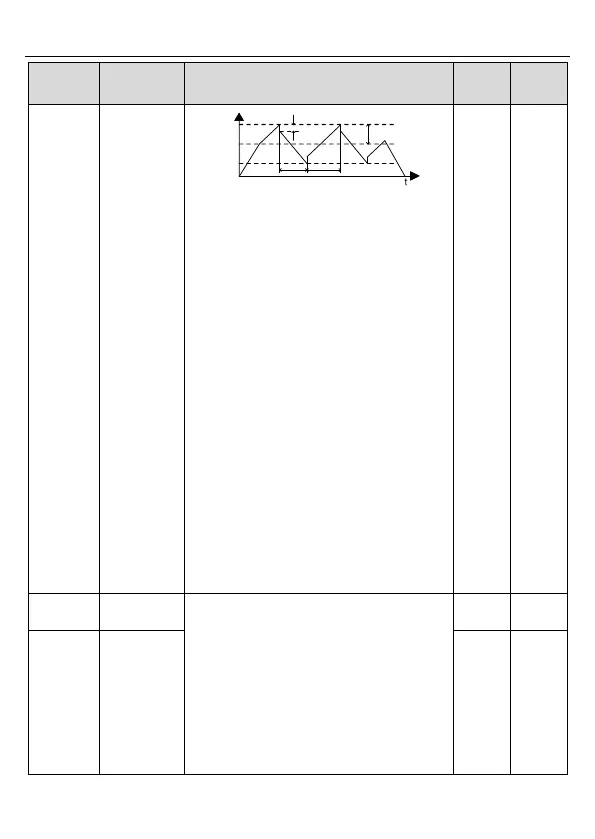

INVT GD10-0R4G-S2-B User Manual

Goodrive10 Series Mini VFD Function parameters
-57-
Function
code
Name
Description
Default
Modify
Output frequency
Jumping frequency
Accelerate
Decelerate based
on the
deceleration time
Wobble frequency amplitude
Fall time of
wobble frequency
Rise time of
wobble frequency
Center
frequency
Lower limit of
wobble frequency
Traverse range: The traverse running is
limited by upper and low frequency.
The traverse range relative to the center
frequency: traverse range AW ＝ center
frequency×traverse range P08.15.
Sudden jumping frequency＝traverse range
AW×sudden jumping frequency range
P08.16. When run at the traverse frequency,
the value which is relative to the sudden
jumping frequency.
The raising time of the traverse frequency:
The time from the lowest point to the highest
one.
The declining time of the traverse frequency:
The time from the highest point to the lowest
one.
Setting range of P08.15: 0.0–100.0%(relative
to the set frequency)
Setting range of P08.16: 0.0–50.0%(relative
to the traverse range)
Setting range of P08.17: 0.1–3600.0s
Setting range of P08.18: 0.1–3600.0s
P08.25
Set count
value
The counter works by the input pulse signals
of the HDI terminals.
When the counter achieves a given number,
the multi-function output terminals will output
the signal of “fixed counting number arrival”
and the counter go on working; when the
counter achieves a setting number, the
multi-function output terminals will output the
signal of “setting counting number arrival”, the
counter will clear all numbers and stop to
0
○
P08.26
Designated
counting
value
0
○
