INVT GD100-015G-4-PV User Manual

Goodrive100-PV Series Solar Pumping VFD Installation guidelines
9

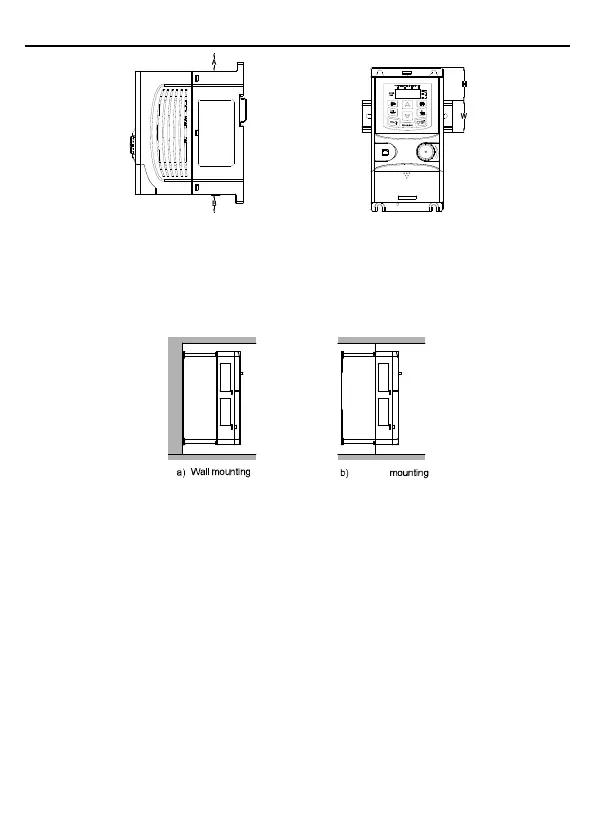

a) Wall mounting b) Rail mounting
Figure 3-1 Installation manners
Note: The minimum space of A and B is 100mm. H is 36.6mm and W is 35.0mm.
(2) The VFDs ≥ 4kW support wall mounting and flange mounting.
Flange
Figure 3-2 Installation manners
1) Mark the locations of installation holes. For details about the holes, see the VFD dimension
diagram in the appendix.
2) Fix the screws or bolts into the marked locations.
3) Lean the VFD against the wall.
4) Fasten the tightening screws on the wall.
3.2 Standard wiring
3.2.1 Terminals of main circuit
The figure below shows the standard wiring of VFD.

INVT GD100-015G-4-PV Specifications

General

Model	GD100-015G-4-PV
Category	Inverter
Rated Power	15 kW
Protection Level	IP20
Cooling Method	Forced air cooling
Output Voltage	AC 380V/400V/415V, 3-phase
Efficiency	98%
Operating Temperature	-10℃~50℃
Storage Temperature	-20℃~+70℃
Humidity	5%~95%, non-condensing
Altitude	≤ 2000 m
