Goodrive100-PV Series Solar Pumping VFD Dimension drawings
80
Appendix D Dimension drawings
D.1 External keypad structure

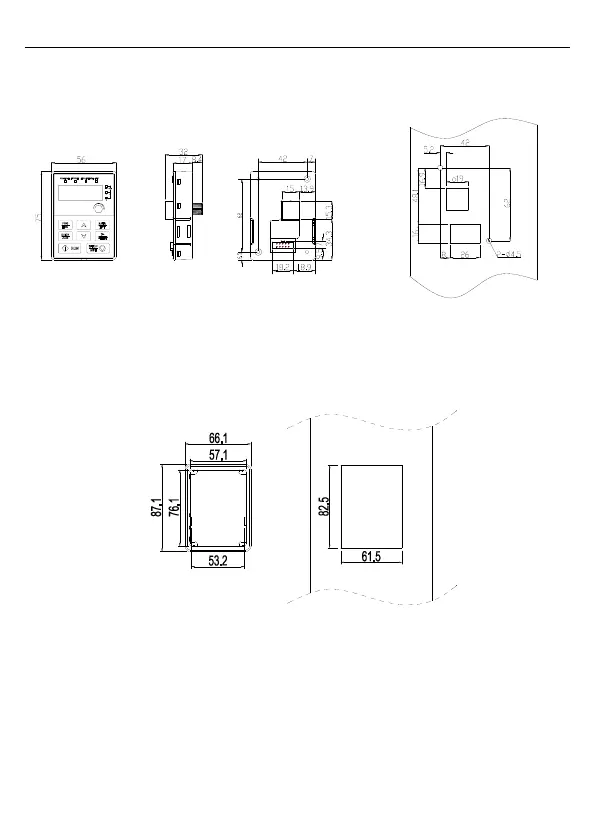

Keypad structure
Installation hole
Note: The external keypad is optional for the VFDs (380V; ≤2.2kW) and the standard keypad
of VFDs (380V; ≥4kW) can be used as the external keypad.
If the keypad is externally installed on an optional bracket, it can be 20 meters away from the
VFD at most.
Installation bracket Installation dimension
