INVT GD20-0R7G-4-EU User Manual

Goodrive20-EU series VFD Function parameters
51
Function
code
Name
Detailed instruction of parameters
Default
value
Modify
P03.19
Upper-limit
setting of
braking torque
P03.21 sets P03.19)
1: Set via AI1 (100% relative to three times of
motor current)
2: Set via AI2 (same as above)
3: Set via AI3 (same as above)
4: Set via HDI (same as above)
5: Set via MODBUS communication (same as
above)
6 – 8: Reserved
Note: Setting mode 1 – 8, 100% corresponds to
three times of the motor current.
0
○
P03.20
Electromotion
torque
upper-limit
setting via
keypad
The function code is used to set the limit of the
torque.
Setting range: 0.0 – 300.0% (motor rated
current)
180.0%
○
P03.21
Braking torque
upper-limit
setting via
keypad
180.0%
○

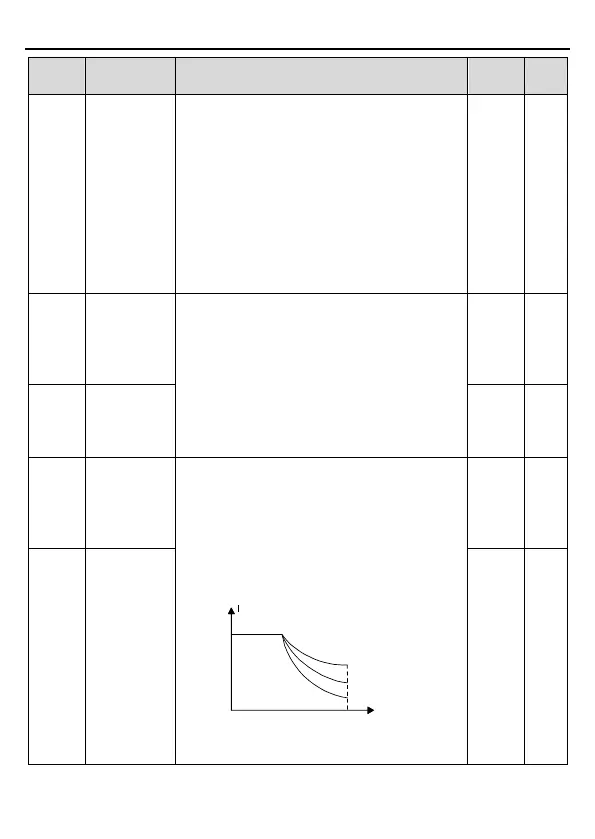

P03.22
Flux
weakening
coefficient in
constant power
zone
The usage of motor in flux weakening control.
Function code P03.22 and P03.23 are effective
at constant power. The motor will enter the flux
weakening state when running at rated speed.
Change the flux weakening curve by modifying
the flux weakening control coefficient. The bigger
the flux weakening control coefficient is, the
steeper the weakening curve is.
Flux weakening
coefficient of the motor
Min. limit
0.10
1.00
2.00
m
Setting range of P03.22: 0.1 – 2.0
Setting range of P03.23: 10% – 100%
0.3
○
P03.23
The lowest flux
weakening
point in
constant power
zone
20%
○
