INVT Goodrive GD35-015G-4-H1 User Manual

Goodrive35 Series Closed-loop Vector Control VFD Dimension drawings
268

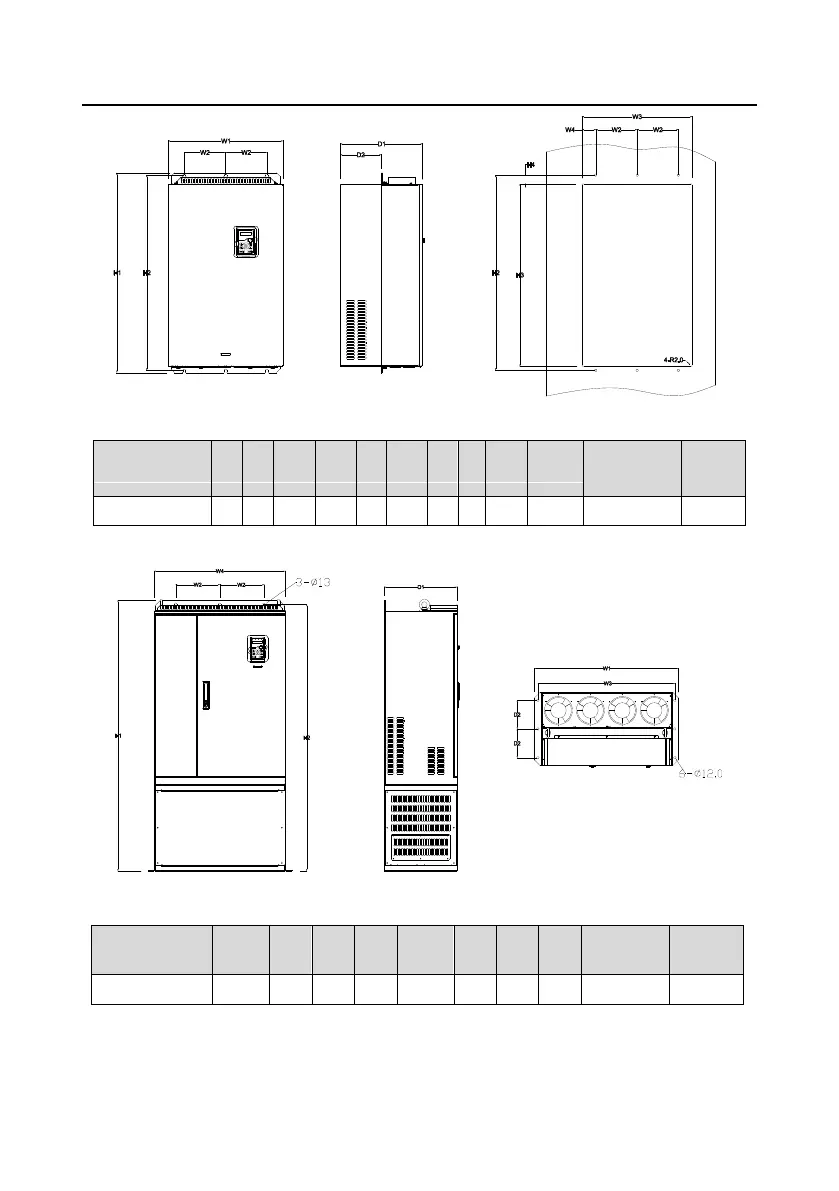

Figure C-15 Flange installation of 660 V 160-220 kW VFDs
Model
W1
W2
W3 W4 H1 H2
H3
H4
D1
D2
Installation
hole
Weight
(kg)
160 kW–220 kW
500
180
480 60 870 850
796
37
358
178.5
11
85
C.5.3 Floor installation (unit: mm)
Figure C-16 Floor installation of 660 V 250-350 kW VFDs
Model
W1
W2
W3
W4
H1
H2
D1
D2
Installation
hole
Weight
(kg)
250 kW–350 kW
750
230
714
680
1410
1390
380
150
13\12
135
