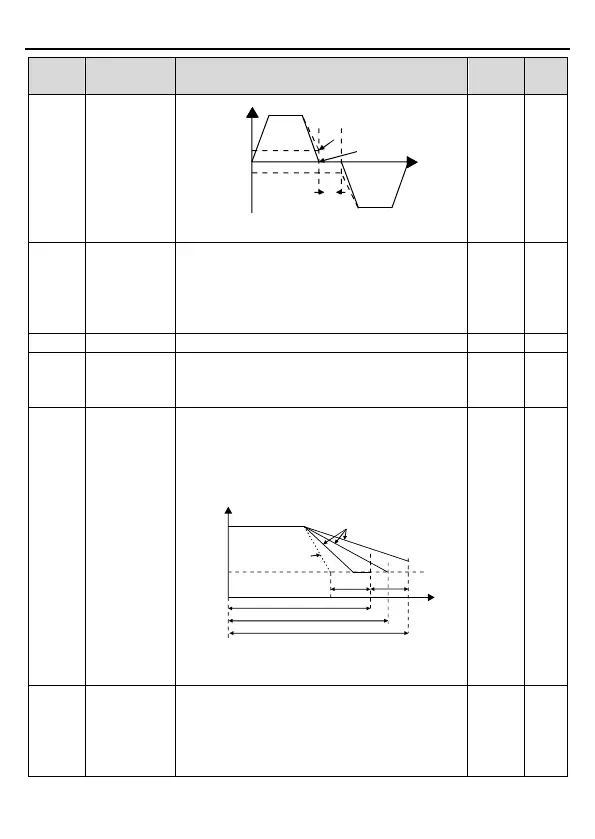

INVT Goodrive20-EU VFD Series - P01 Parameters: Speed Detection and Protection

Goodrive20-EU series VFD Function parameters
43
Function
code
Name
Detailed instruction of parameters
Default
value
Modify
Output frequency
FWD
REV
T
Starting
frequency
Shift after the
zero frequency
Shift after the
starting frequency
Setting range: 0.0 – 3600.0s
P01.14
FWD/REV
switching mode
Set the threshold point of the VFD:
0: Switch at zero frequency
1: Switch at the start frequency
2: Switch after the speed reaches the stop speed
(P01.15) for the set the delay (P01.24)
1
◎
P01.15
Stop speed
0.00 – 100.00Hz
0.50Hz
◎
P01.16
Detection of
stopping speed
0: Detect at the setting speed
1: Detect at the feedback speed (valid for vector
control only)
1
◎
P01.17
Detection time
of the feedback
speed
When P01.16=1, the actual output frequency of
the VFD is less than or equal to P01.15 and is
detected during the time set by P01.17, the VFD
will stop; otherwise, the VFD stops in the time set
by P01.24.
T
Stop speed
A
Ramp reference
frequency
Output frequency
Frequency
P01.24 P01.17
B
C
Running A
Running B
Running C
Setting range: 0.00 – 100.00s ( valid only when
P01.16=1)
0.50s
◎
P01.18
Power-on
terminal
running
protection
selection
When the running command channel is the
terminal control, the system will detect the state
of the running terminal during powering on.
0: The terminal running command is invalid when
powering on. Even the running command is
0
○
