INVT Goodrive20-EU VFD Series User Manual

Goodrive20-EU series VFD Function parameters
54
Function
code
Name
Detailed instruction of parameters
Default
value
Modify
– 10.0%
Setting range of P04.02: 0.0% – 50.0%

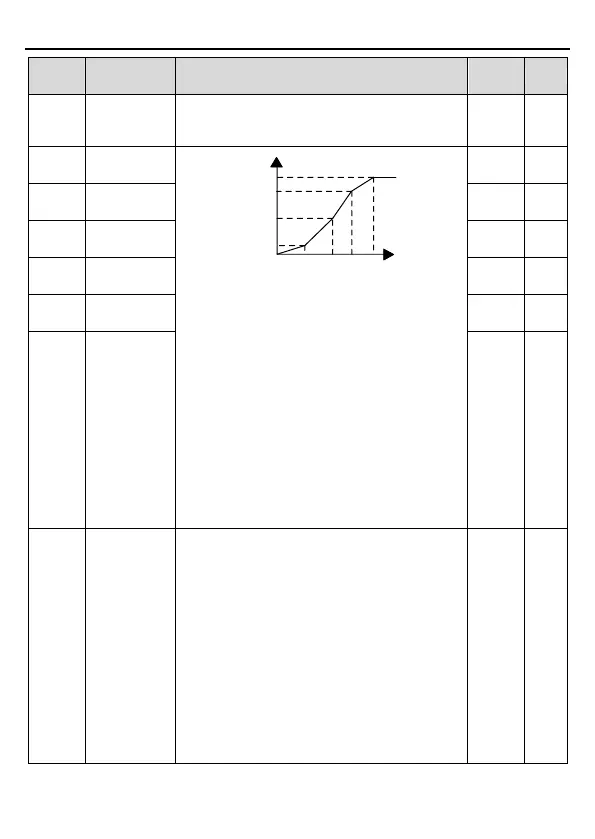

P04.03
V/F frequency
point 1
Output voltage
Output
frequency
V1
V2
V3
f1 f2 f3
100.0%
b
f
b
V
When P04.00 =1, the user can set V//F curve
through P04.03 – P04.08.
V/F is generally set according to the load of the
motor.
Note: V1<V2<V3, f1<f2<f3. Too high low
frequency voltage will heat the motor excessively
or damage. Overcurrent stall or overcurrent
protection may occur.
Setting range of P04.03: 0.00Hz – P04.05
Setting range of P04.04, P04.06 and P04.08:
0.0% – 110.0% (rated motor voltage)
Setting range of P04.05: P04.03 – P04.07
Setting range of P04.07: P04.05 – P02.02 (rated
motor voltage frequency)
0.00Hz
○
P04.04
V/F voltage
point 1
0.0%
○
P04.05
V/F frequency
point 2
0.00Hz
○
P04.06
V/F voltage
point 2
0.0%
○
P04.07
V/F frequency
point 3
0.00Hz
○
P04.08
V/F voltage
point 3
0.0%
○
P04.09
V/F slip
compensation
gain
This function code is used to compensate the
change of the rotation speed caused by load
during compensation SVPWM control to improve
the rigidity of the motor. It can be set to the rated
slip frequency of the motor which is counted as
below:
△f=f
b
-n*p/60
Of which, f
b
is the rated frequency of the motor,
its function code is P02.02; n is the rated rotating
speed of the motor and its function code is
P02.03; p is the pole pair of the motor. 100.0%
corresponds to the rated slip frequency△f.
Setting range: 0.0 – 200.0%
100.0%
○
