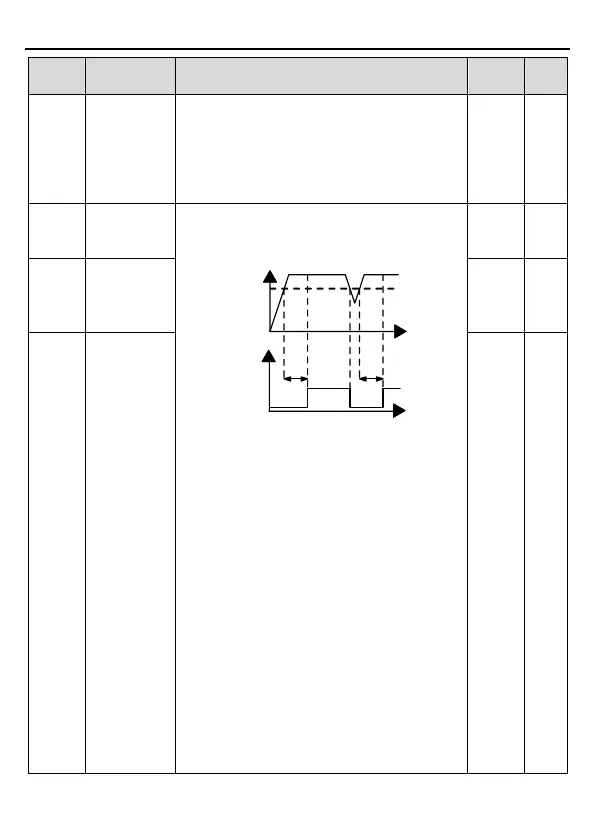

INVT Goodrive20-EU VFD Series User Manual

Goodrive20-EU series VFD Function parameters
93
Function
code
Name
Detailed instruction of parameters
Default
value
Modify
0: current limit invalid
1: current limit valid
2: current limit is invalid during constant speed
Setting range of P11.05: 0x00 – 0x12
Setting range of P11.06: 50.0 – 200.0%
Setting range of P11.07: 0.00 – 50.00Hz/s
P11.08
Over/under-
load pre-alarm
of motor/ VFD
The output current of the VFD or the motor is
above P11.09 and the lasting time is beyond
P11.10, overload pre-alarm will be output.
Output current
Overload
pre-warning
point
T
T
Y,
RO1, RO2
Pre-warning
time
Pre-warning
time
Setting range of P11.08:
Enable and define the overload pre-alarm of the
VFD or the motor.
Setting range: 0x0000–0x1131
LED ones:
0: Over/under-load pre-alarm of the motor,
relative to the rated motor current.
1: Over/under-load pre-alarm of the VFD, relative
to the rated VFD current
LED tens:
0: The VFD continues to work after
over/under-load pre-alarm
1: The VFD continues to work after underload
pre-alarm and stops running after overload fault
2: The VFD continues to work after overload
pre-alarm and stops running after underload fault
3. The VFD stops when over/under-load
occurred.
LED hundreds :
0x0000
○
P11.09
Overload
pre-alarm
detection level
150%
○
P11.10
Overload
pre-alarm
detection time
1.0s
○
