INVT Goodrive300 Series User Manual

Goodrive300 Series VFD Basic operation instruction
159
0
1
2
3
.
.
.
.
.
.
19
20
P06.14
P06.15
P06.16
AO1
AO2
HDO
P06.17
P06.18
P06.19
P06.20
P06.22
P06.23
P06.24
P06.25
P06.27
P06.28
P06.29
P06.30
P06.26
P06.21
P06.31
(default value is 0)
(default value is 0)
(default value is 0)

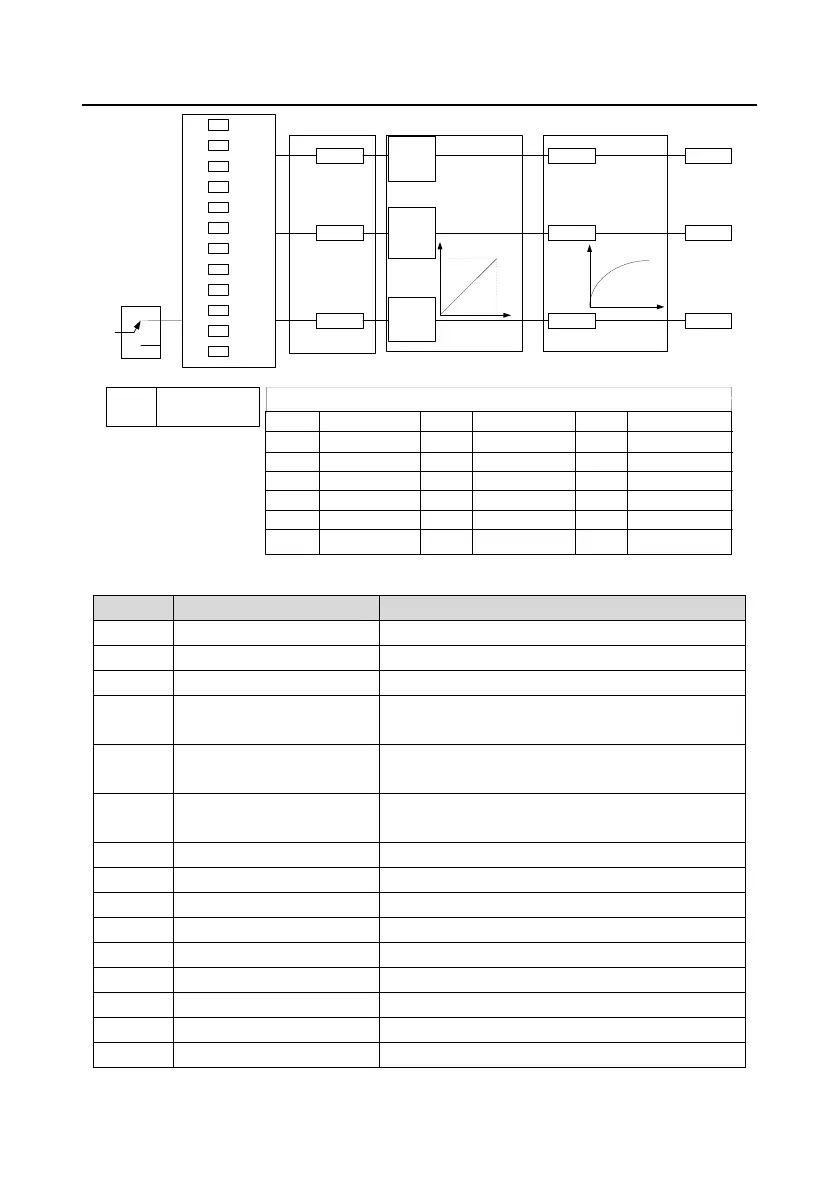

P06.00
(HDO output type selection)
0 Running frequency 1 Set frequency
3 Running rotation speed 4
Output current (relative to the
VFD)
6 Output voltage 7 Output power
9 Output torque 10 Analog AI1 input value
12 Analog AI3 input value 13 HDI input value
15
MODBUS communication
setting 2
16
PROFIBUS communication
setting 1
2 Ramp reference frequency
5
Output current (relative to the
motor)
8 Set torque
11 Analog AI2 input value
14
MODBUS communication
setting 1
17
PROFIBUS communication
setting 1
18
Torque current (relative to the
nominal current of the motor)
19
Exciting current (relative to the
nominal current of the motor)
20 Reserved
0
1
P06.00
0: open collector high speed
pulse output
1: open collector output
P06.01, P06.02, P06.03, P06.04 output selection
Analog output curve setting
Analog output selection Analog output filter setting
Output instructions:
Set value
Function
Instructions
0
Running frequency
0–the Max. output frequency
1
Set frequency
0–the Max. output frequency
2
Ramp frequency reference
0–the Max. output frequency
3
Running speed
0–2 times of the rated synchronous rotation speed of
the motor
4
Output current
(corresponding to the VFD)
0–2 times of the rated current of the VFD
5
Output current
(corresponding to the motor)
0–2 times of the rated current of the VFD
6
Output voltage
0–1.5 times of the rated voltage of the VFD
7
Output power
0–2 times of the rated power
8
Setting torque value
0–2 times of the rated current of the motor
9
Output torque
0–2 times of the rated current of the motor
10
AI1
0–10V/0–20mA
11
AI2
0–10V/0–20mA
12
AI3
-10V–10V
13
HDI
0.00–50.00kHz
14
Setting value 1 of Modbus
-1000–1000,1000 corresponds to 100.0%
