Goodrive300 Series VFD Installation guide
18
4.2.3 Installation mode
The VFD can be installed in three different ways, depending on the frame size:
a) Wall mounting, applicable for VFDs of 380V (315kW), 500V (75kW), and 660V (350kW)
b) Flange mounting, applicable for VFDs of 380V (≤200kW), 500V (75kW), and 660V (200kW)
c) Floor mounting, applicable for VFDs of 380V (220500kW) and 660V (250630kW)
Wall mounting Flange mounting

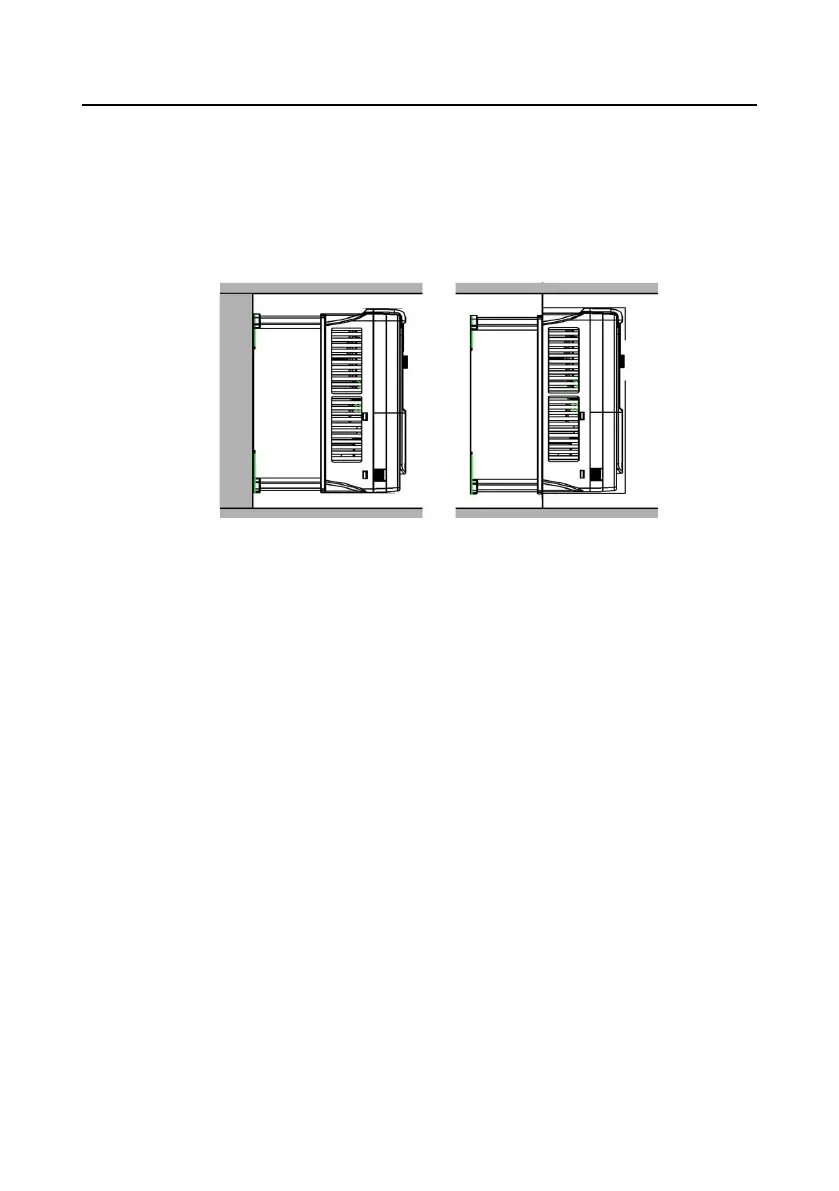

Figure 4-2 Installation mode
(1) Mark the hole location. The location of the holes is shown in Appendix C "Dimension drawings".
(2) Fix the screws or bolts to the marked locations.
(3) Put the VFD against the wall.
(4) Tighten the screws in the wall securely.
Note:
The flange installation of the VFDs of 380V 1.530kW and 500V 418.5kW need flange board, while
the flange installation of the VFDs of 380V 37200kW, the flange installation of the VFDs of 500V
2275kW and 660V 22220kW does not need.
The VFDs of 380V 220315kW and 660V 250350kW need optional bases, there is an input AC
reactor (or DC reactor) and output AC reactor on the base.
