INVT Goodrive300 Series User Manual

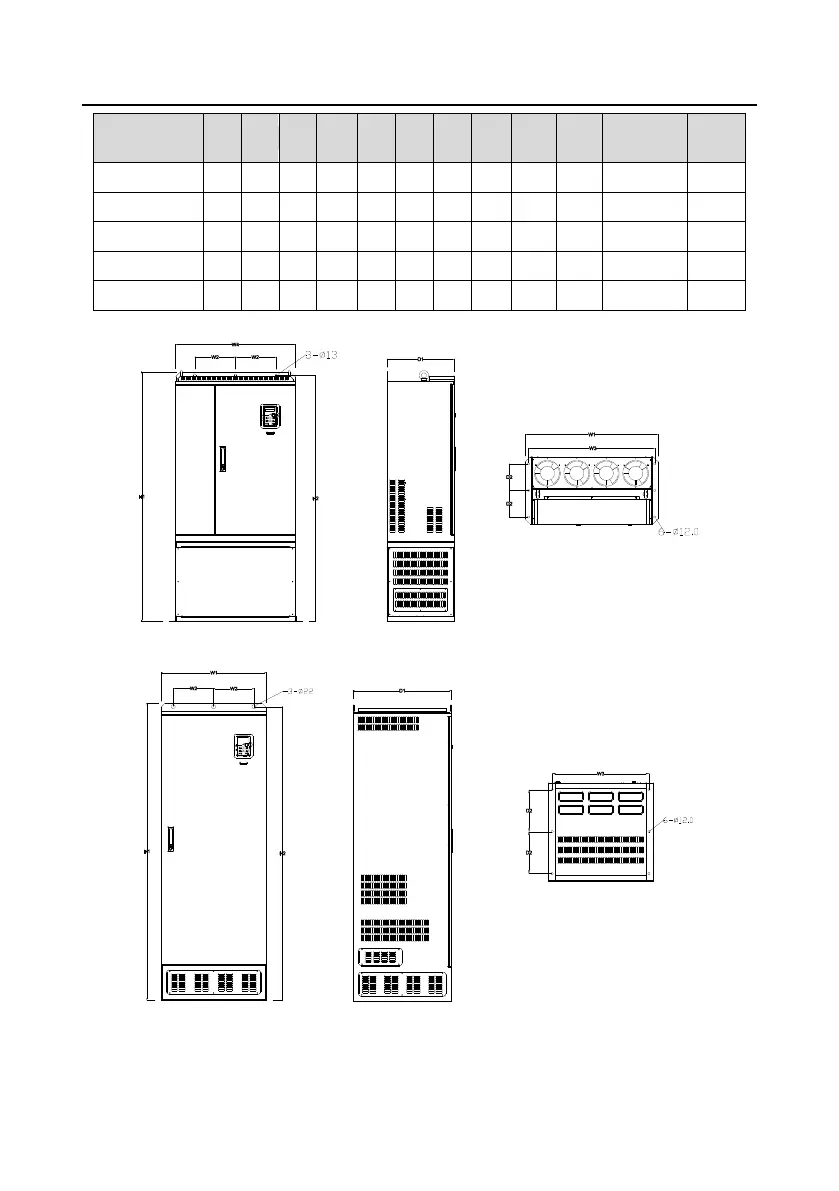

Goodrive300 Series VFD Dimension drawings
255
Model
W1
W2
W3
W4
H1
H2
H3
H4
D1
D2
Installation
hole
Weight
(kg)
15kW–18.5kW
250
210
234
12
375
356
334
10
216
108
6
7.8
22kW–30kW
275
237
259
11
445
426
404
10
245
119
7
9.5
37kW–55kW
270
130
261
65.5
555
540
516
17
325
167
7
30
75kW–110kW
325
200
317
58.5
680
661
626
23
363
182
9.5
47
132kW–200kW
500
180
480
60
870
850
796
37
358
178.5
11
85
C.4.3 Floor installtion
Floor installation of 380V 220-315kW VFDs
Floor installation of 380V 350-500kW VFDs

INVT Goodrive300 Series Specifications

General

Brand	INVT
Model	Goodrive300 Series
Category	DC Drives
Language	English
