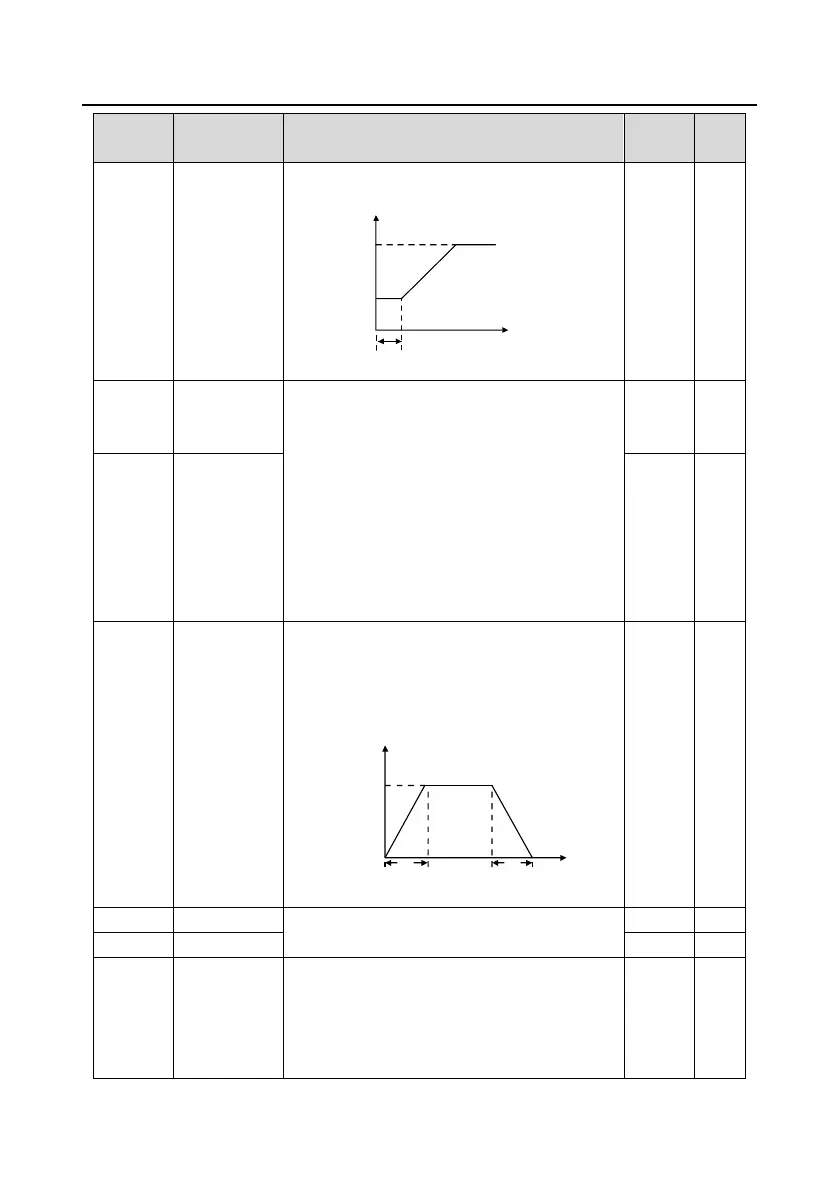

Goodrive300 Series VFD Function parameters
49
Function
code
Name
Detailed instruction of parameters
Default
value
Modify
state. The starting frequency is not limited in the
lower limit frequency.
Output frequency
fmax
t1
T
f1 set by P01.01
f1
t1 set by P01.02
Setting range: 0.050.0s
P01.03
The braking
current before
starting
The VFD will carry out DC braking at the braking
current set before starting and it will speed up
after the DC braking time. If the DC braking time
is set to 0, the DC braking is invalid.
The stronger the braking current, the bigger the
braking power. The DC braking current before
starting means the percentage of the rated
current of the VFD.
Setting range of P01.03: 0.0100.0%
Setting range of P01.04: 0.0050.00s
0.0%
P01.04
The braking
time before
starting
0.00s
P01.05
ACC/DEC
selection
The changing mode of the frequency during
start-up and running.
0: Linear type
The output frequency increases or decreases
linearly.
fmax
Output frequency
t1 t2
T
1: Reserved
0
P01.06
Reserved
Reserved
P01.07
Reserved
Reserved
P01.08
Stop mode
0: Decelerate to stop: after the stop command
becomes valid, the VFD decelerates to decrease
the output frequency during the set time. When
the frequency decreases to P01.15, the VFD
stops.
0
