INVT Goodrive300 Series User Manual

Goodrive300 Series VFD Function parameters
50
Function
code
Name
Detailed instruction of parameters
Default
value
Modify
1: Coast to stop: after the stop command
becomes valid, the VFD ceases the output
immediately. And the load coasts to stop at the
mechanical inertia.
P01.09
Starting
frequency of
DC braking
The starting frequency of stop braking: the VFD
will carry on stop DC braking when the frequency
is arrived during the procedure of decelerating to
stop.
The waiting time of stop braking: before the stop
DC braking, the VFD will close output and begin
to carry on the DC braking after the waiting time.
This function is used to avoid the overcurrent fault
caused by DC braking when the speed is too
high.
Stop DC braking current: the DC brake added.
The stronger the current, the bigger the DC
braking effect.
The braking time of stop braking: the retention
time of DC brake. If the time is 0, the DC brake is
invalid. The VFD will stop at the set deceleration
time.

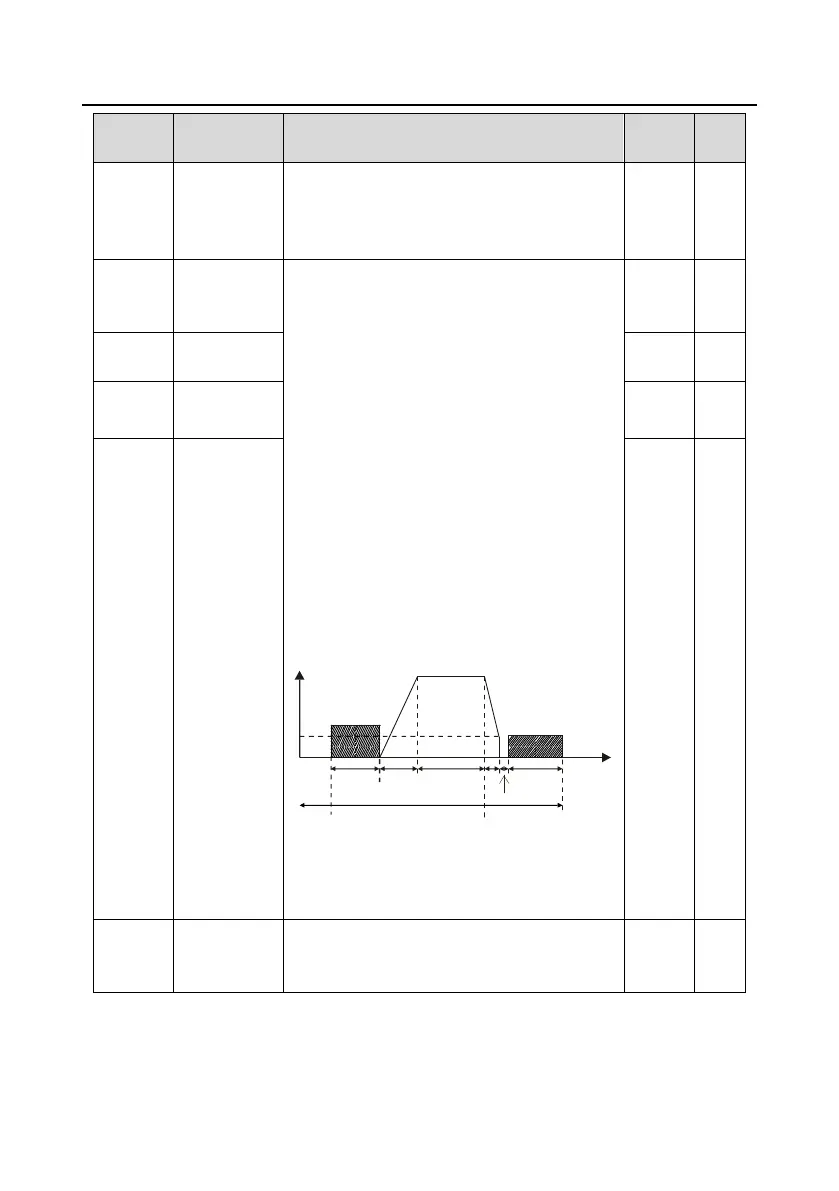

Running
command
ACC
Brake
command
before start
Constant
speed
ON
OFF
DEC
P01.10
P01.12
Time t
Setting range of P01.09: 0.00Hz–P00.03
Setting range of P01.10: 0.00–50.00s
Setting range of P01.11: 0.0–100.0%
Setting range of P01.12: 0.00–50.00s
0.00Hz
○
P01.10
Waiting time of
DC braking
0.00s
○
P01.11
DC braking
current
0.0%
○
P01.12
DC braking
time
0.00s
○
P01.13
Dead time of
FWD/REV
rotation
During the procedure of switching for/rev rotation,
set the threshold by P01.14, which is as the table
below:
0.0s
○
