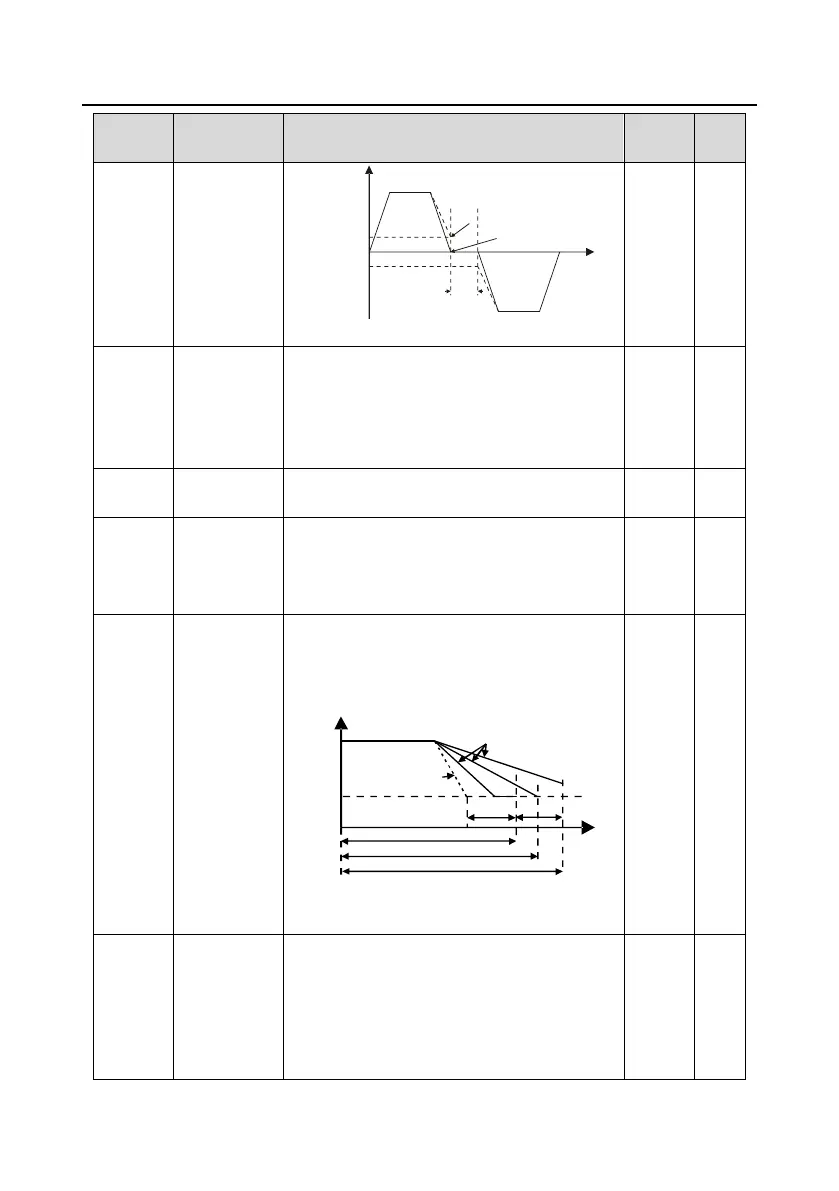

Goodrive300 Series VFD Function parameters
51
Function
code
Name
Detailed instruction of parameters
Default
value
Modify
Output frequency f
Forward
Reverse
Deadzone
time
Time t
Starting
frequency
Switch over after
zero frequency
Switch over after
starting frequency
Setting range: 0.03600.0s
P01.14
Shifting
between
FWD/REV
rotation
Set the threshold point of the VFD:
0: Switch after zero frequency
1: Switch after the starting frequency
2: Switch after the speed reach P01.15 and delay
for P01.24
0
P01.15
Stopping
speed
0.00100.00Hz
0.50 Hz
P01.16
Detection of
stopping
speed
0: Detect according to speed setting (no stopping
delay)
1: Detect according to speed feedback (only valid
for vector control)
1
P01.17
Detection time
of the
feedback
speed
If set P01.16 to 1, the feedback frequency is less
than or equal to P01.15 and detect in the set time
of P01.17, the VFD will stop; otherwise the VFD
will stop after the set time of P01.17.
T
Stop
speed
A
Ramp
reference
frequency
Output frequency
Frequency
P01.24 P01.17
B
C
Running A
Running B
Running C
Setting range: 0.00100.00s (only valid when
P01.16=1)
0.50s
P01.18
Terminal
running
protection
when
powering on
When the running commands are controlled by
the terminal, the system will detect the state of
the running terminal during powering on.
0: The terminal running command is invalid when
powering on. Even the running command is
detected to be valid during powering on, the VFD
0
