Goodrive300 Series VFD Function parameters
59
Function
code
Name
Detailed instruction of parameters
Default
value
Modify
protection
coefficient
output current of the VFD and K is the motor
protection coefficient.

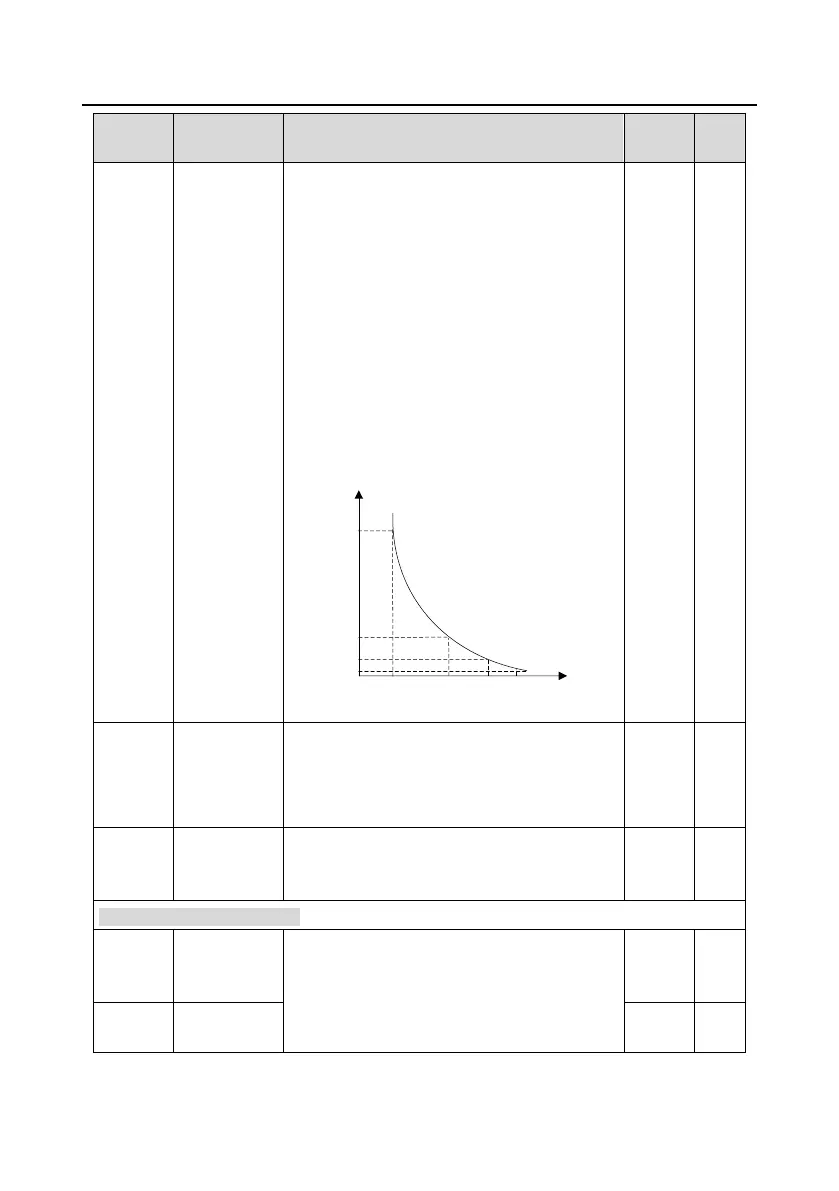

The smaller K is, the greater M is, and the more
likely protection is implemented.
When M=116%, protection is performed after
motor overload lasts for 1 hour; when M=150%,
protection is performed after motor overload lasts
for 12 minutes; when M=180%, protection is
performed after motor overload lasts for 5
minutes; when M=200%, protection is performed
after motor overload lasts for 60 seconds; and
when M ≥ 400%, protection is performed
immediately.
1
5
12
60
116%
200%
Time (min)
Motor overload
multiple
150% 180%
Setting range: 20.0%–120.0%
P02.28
Correction
coefficient of
motor 1 power
Correct the power displaying of motor 1.
Only impact the displaying value other than the
control performance of the VFD.
Setting range: 0.00–3.00
1.00
●
P02.29
Parameter
display of
motor 1
0: Display according to the motor type
1: Display all
0
●
P03 Group Vector control
P03.00
Speed loop
proportional
gain 1
The parameters P03.00–P03.05 only apply to
vector control mode. Below the switching
frequency 1 (P03.02), the speed loop PI
parameters are: P03.00 and P03.01. Above the
switching frequency 2 (P03.05), the speed loop PI
20.0
○
P03.01
Speed loop
integral time 1
0.200s
○
