INVT Goodrive300 Series

Goodrive300 Series VFD Function parameters
65
Function
code
Name
Detailed instruction of parameters
Default
value
Modify

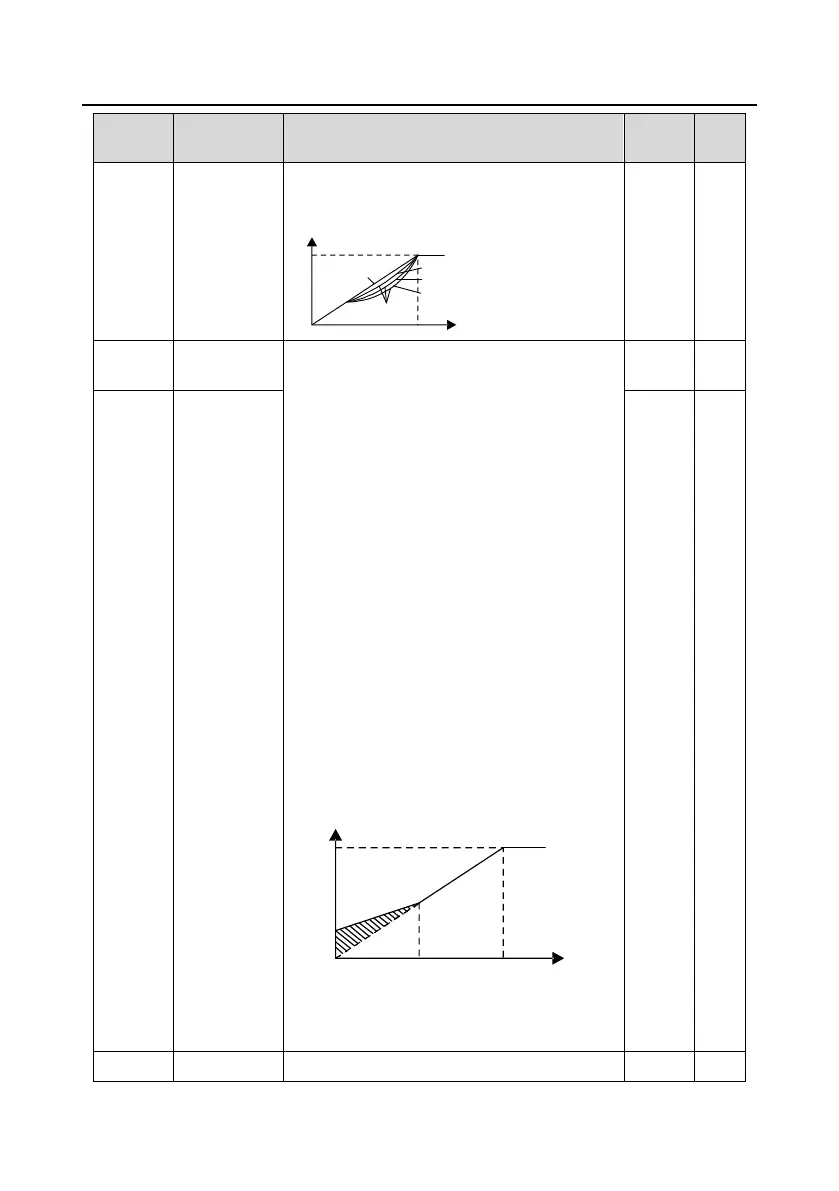

the feature of the curve.
Note: V
b
in the below picture is the motor rated
voltage and f
b
is the motor rated frequency.
Output voltage
Output frequency
Linear type
Square type
Torque-stepdown characteristics V/F curve (1.3 order)
Torque-stepdown characteristics V/F curve (1.7 order)
Torque-stepdown characteristics V/F curve (2.0 order)
V
b
f
b
P04.01
Torque boost
of motor 1
Boost compensation can be given to the output
voltage for compensating the features of low
frequency torque. P04.01 is for the Max. Output
voltage V
b
.
P04.02 defines the percentage of closing
frequency of manual torque to f
b
. Torque boost
can improve the features of low frequency torque
of V/F.
Torque boost should be selected according to the
load. The bigger the load is, the bigger the boost
is. Too big torque boost is inappropriate because
the motor will run with over-magnetic, and the
current of the VFD will increase to raise the
temperature of the VFD and decrease the
efficiency.
When the torque boost is set to 0.0%, the VFD is
automatic torque boost.
Torque boost threshold: under the threshold, the
torque boost is valid, but over the threshold, the
torque boost is invalid.
Output voltage
Output frequency
f
Cut-off
f
b
V
b
V
boost
Setting range of P04.01: 0.0%: (automatic)
0.1%–10.0%
Setting range of P04.02: 0.0%–50.0%
0.0%
○
P04.02
Torque boost
close of motor
1
20.0%
○
P04.03
V/F
When P04.00 =1, the user can set V//F curve
0.00Hz
○
