iMars grid-tied solar inverters Display panel
41
(3) State display area displays current running state of the inverter, which can display
“self-inspection”, “grid-connected power generation”, “alarm”, “fault” and “OFF” state;
(4) Dynamic fault code and menu entrance. When the state display area displays “alarm” or
“fault”, the dynamic fault code area will display corresponding fault code (display up to 8
fault codes).

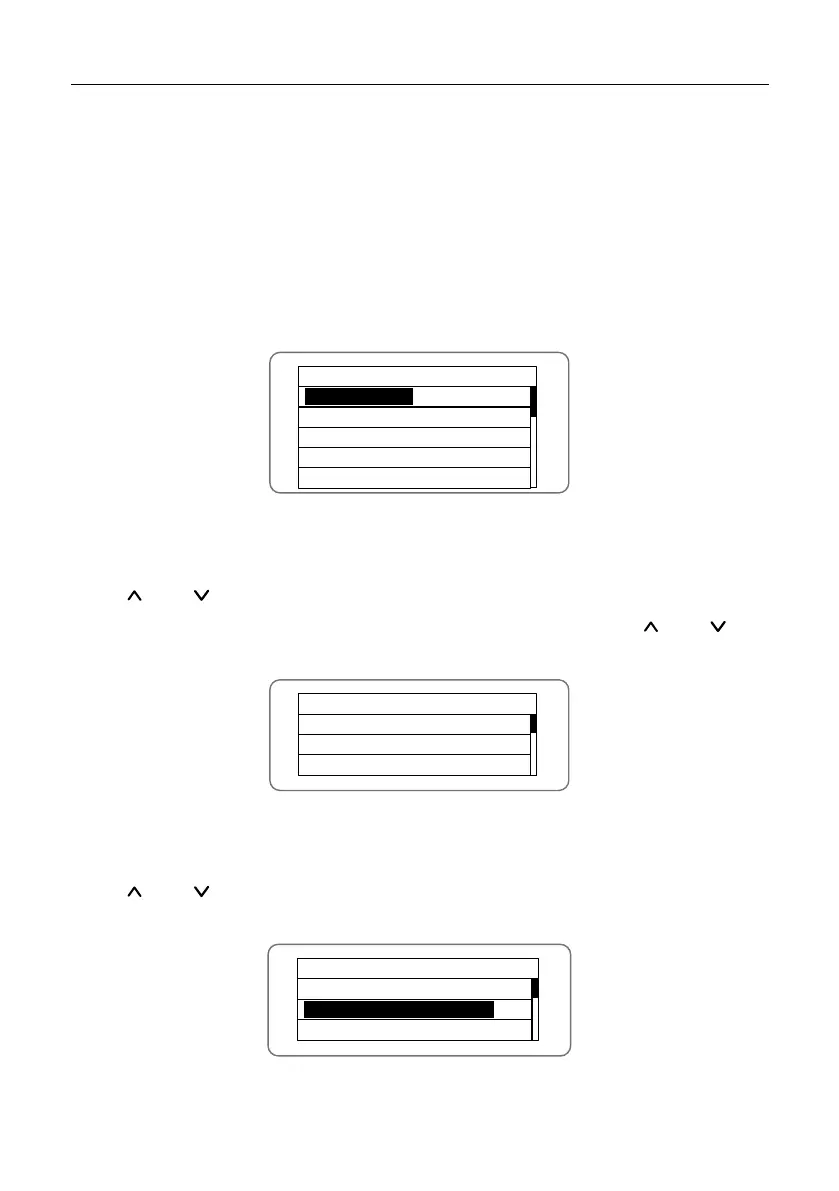

6.4 Functions operation
Most of the parameters can be viewed and set through the LCD screen and operation panel.
Ma in Me nu
Mo nit P ar am
St ati st ic s
Se tup
Sy ste m In fo
Fa ult I nf o
Figure 6.3 Main menu interface of LCD
6.4.1 Monitoring parameters
Press “ ” and “ ” in the main interface to select “Monit Param”, and then press “ENT” to view
the parameters which is shown in Figure 6.4. Go the front or next page through “ ” and “ ” and
return through “ESC”.
Cu rre nt S ta te
E- tod : 0W h
$- tod : €0. 00
P- in : 0 .0 0k W
Figure 6.4 Monitoring parameters
6.4.2 History
Press “ ” and “ ” in the main interface to select “History”, and then press “ENT” to view the
parameters which is shown in Figure 6.5.
His to ry 0
20 1 2/ 01 /0 5 11 :3 2:1 6
A0 0 5: G ri d u nd er f r eq
Figure 6.5 History parameters
