6. Installation and use procedures

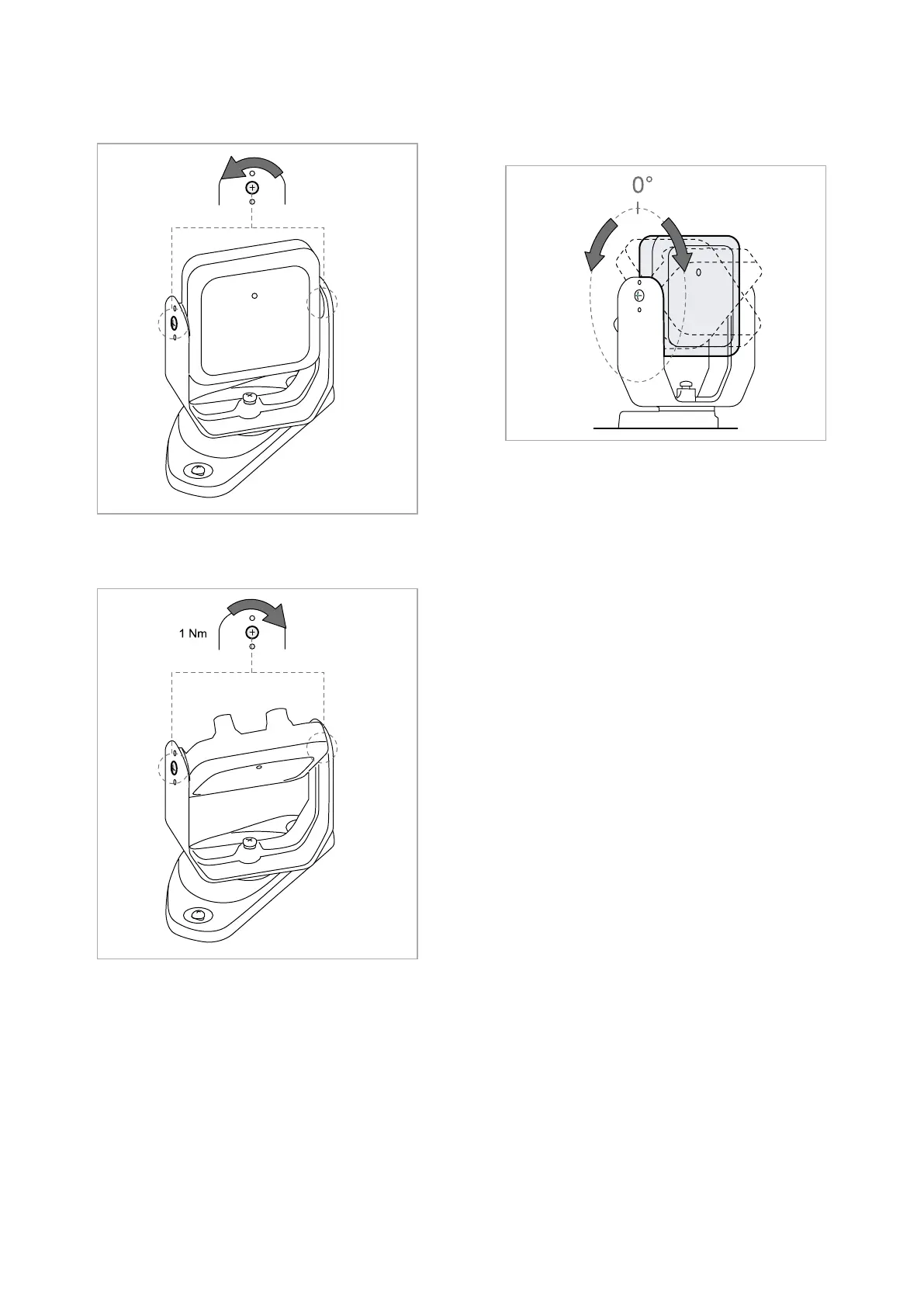

5. Loosen the tamper-proof screws to tilt the
sensor.
6. Direct the sensor up to the desired inclination,
see "Sensor position" on page42.
Note: a notch is equal to 10° of inclination.
7. Tighten the screws.
