Appendix 2: Final Settings of the Switch

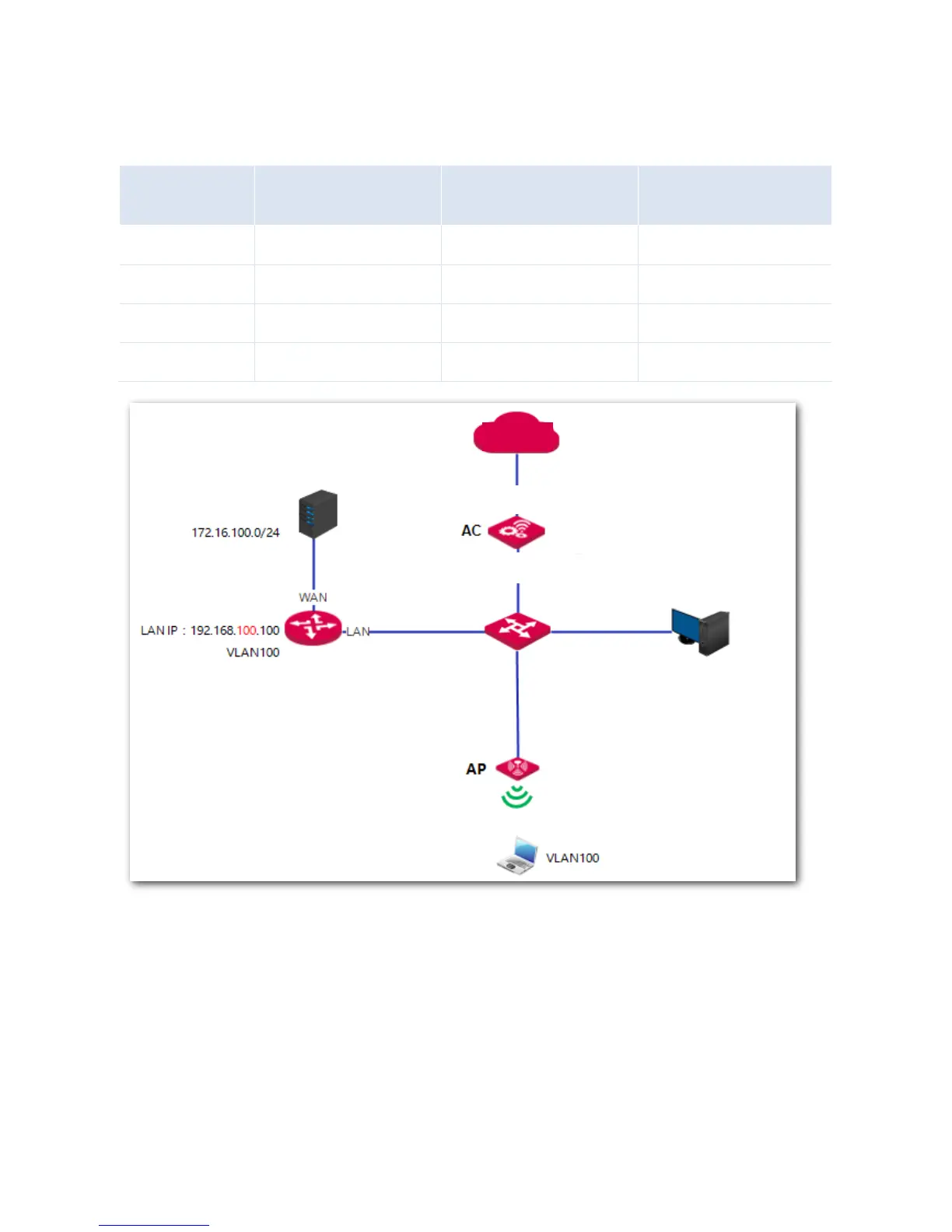

After all the configurations are complete, the settings on the switch are shown as follows.
The port
connected to
VLAN ID
Port Type
PVID
Router1
100
Access
100
administrator
1
Access
1
AP
1,5
Trunk
1
AC
1,5,100
Trunk
1
Internet
Administrator
Internet Server
Router1
Switch
User
eth0: VLAN Interface
eth3: WAN Interface
Management VLAN: 5
SSID: VIP
