IP-COM AC3000-32 - Page 34

33

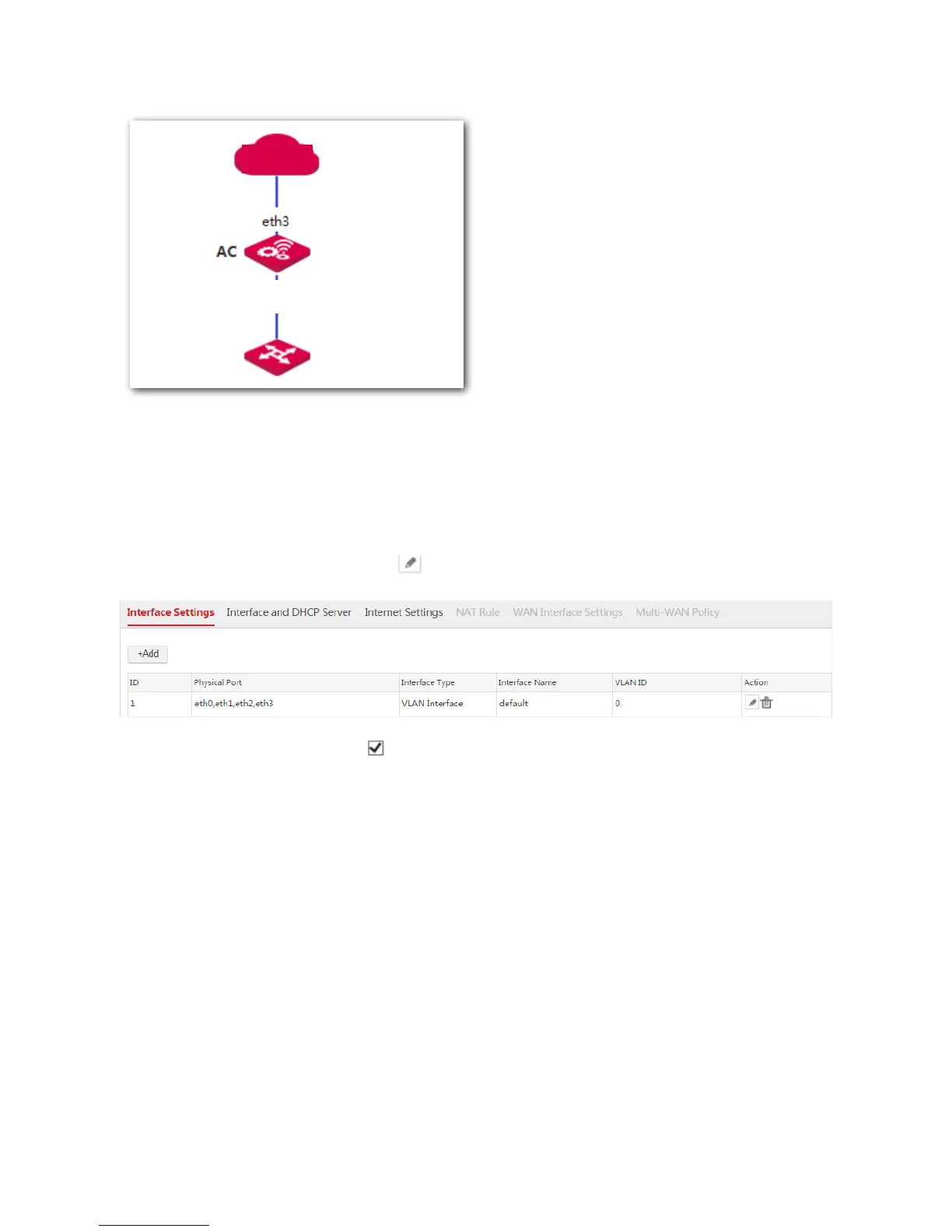

Network Topology
Procedure
Step 1: Configure eth3 as a WAN interface
1. Choose Network Setting > Network Setting > Interface Settings.
2. Find the interface "default" and click .
3. Physical Port: Unselect the box of the physical port to be configured as a WAN interface. In this
example, the physical port is "eth3".
4. Click Save.
Internet
VLAN Interface
Switch
