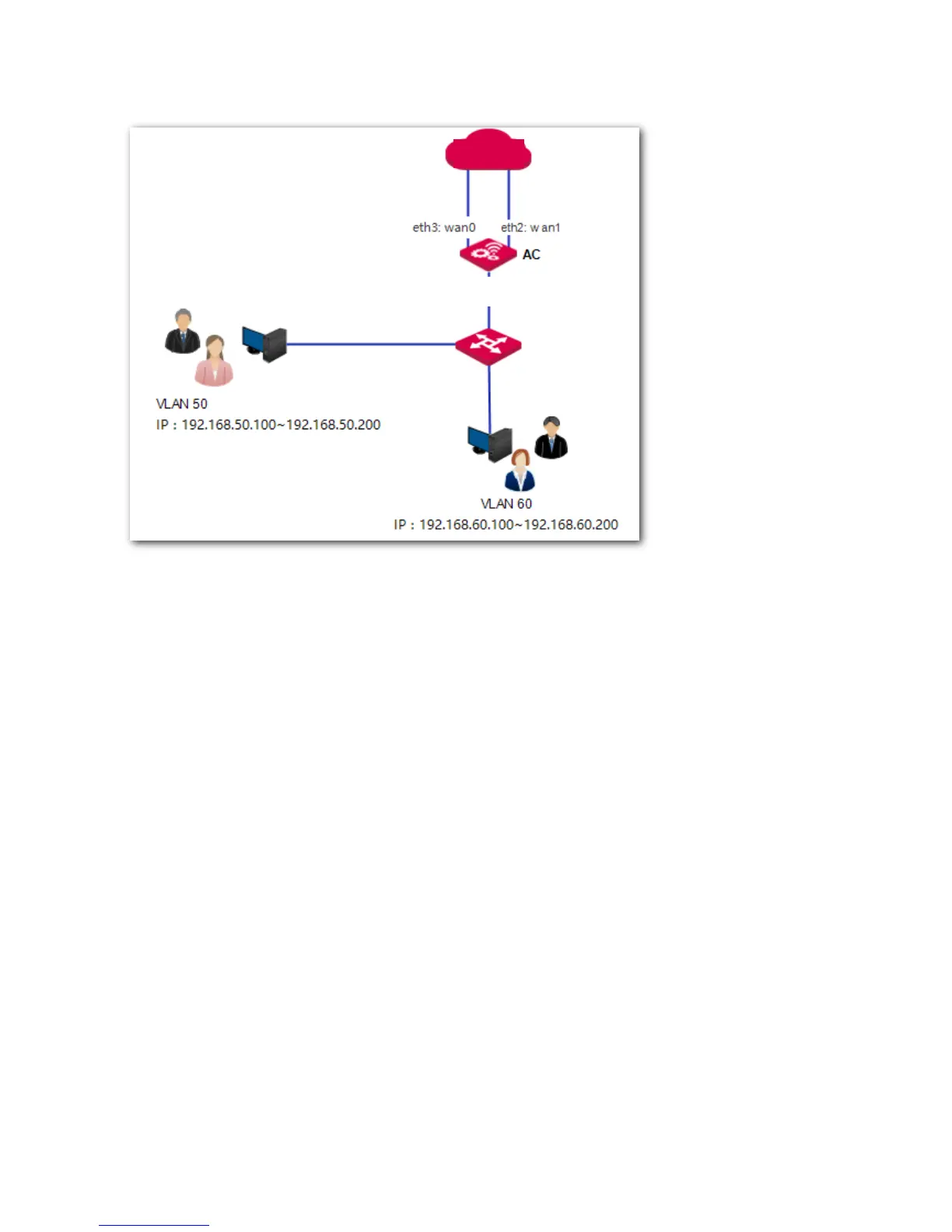

Network Topology
Procedure
I. Configure AC
Step 1: Configure VLAN Interface
1. Configure a VLAN interface to communicate with VLAN 50.
1) Choose Network Setting > Network Setting > Interface Settings.
2) Click Add.
3) Configure the parameters in the window.
Interface Type: Select "VLAN Interface".
Physical Port: Select the port connected to the switch, which is "eth0".
Interface Name: Set a name for the VLAN interface, such as "vlan50".
VLAN ID: Enter "50".
4) Click Save.
wan0: ISP1
wan1: ISP2
